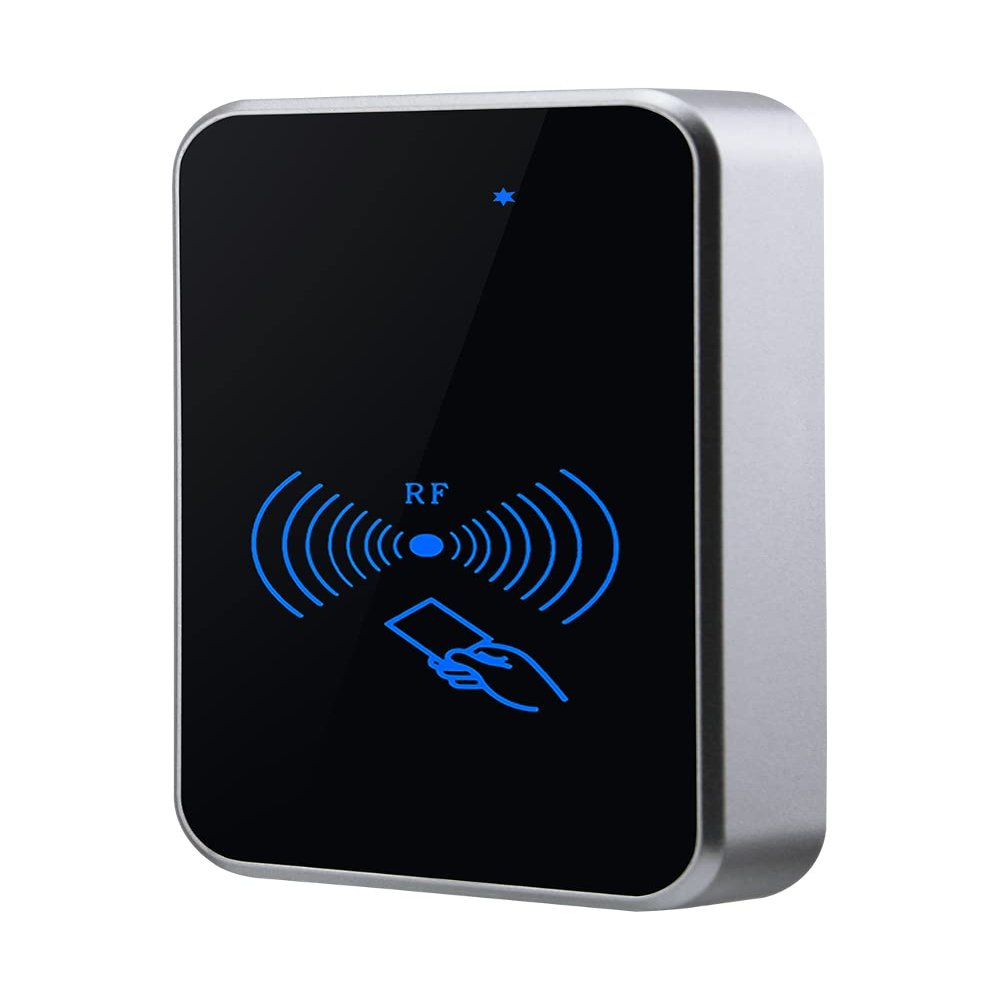

NFC Access Control Card Reader Wiegand 26 or 34 Format Outdoor Waterproof Anti-Metal Interference 125Khz ID 13.56Mhz IC Contactless RF Read Head (13.56MHZ Wiegand)

Description

• The card reader supports 125KHz ID card or 13.56Mhz IC card, please choose the card reader you need before purchasing.
• The reader is slave Wiegand 26/34 interfacecant work standalone, it muse be work with access control panel/board or access controller.
• The reader is IP68 waterproof, so it can be used indoor or outdoor.
• The reader will show the excellent LED light.

Product parameters
Product name Access Control Card Reader
Material ABS & Resin adhesive (effectively waterproof)
Frequency 125Khz or 13.56Mhz
Card reading type TK4001/ EM4100 etc.
Read Range 3~15CM
Operating Voltage DC 9~16V
Interface method Wiegand 26 or Wiegand 34
Operating Temperature -25 ~ 85
Card reading interval <0.5S
Verification method Swipe card verification
Communication distance Wiegand interface 100 meters
Installation
Using +type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Notice
1.Confirm the electric voltage (DC 9V-16V) and differentiate positive anode and cathode of power supply.
2.When external power is used,suggest to use same power GND with controller panel.
3.The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, two strands are spare.if no need reader show illegal cards by sound and light,SPKLED wire can not be used, data wire Datal DataO are twisted pairwould be better, we suggestsectional area are 0.22 square millimeterat least. The length should not exceed 100 meters.Shielded wire connect to GND,over striking and double strandcablewill improve reader working performance. (Or adoptingmulti core stranded AVAYA.)
