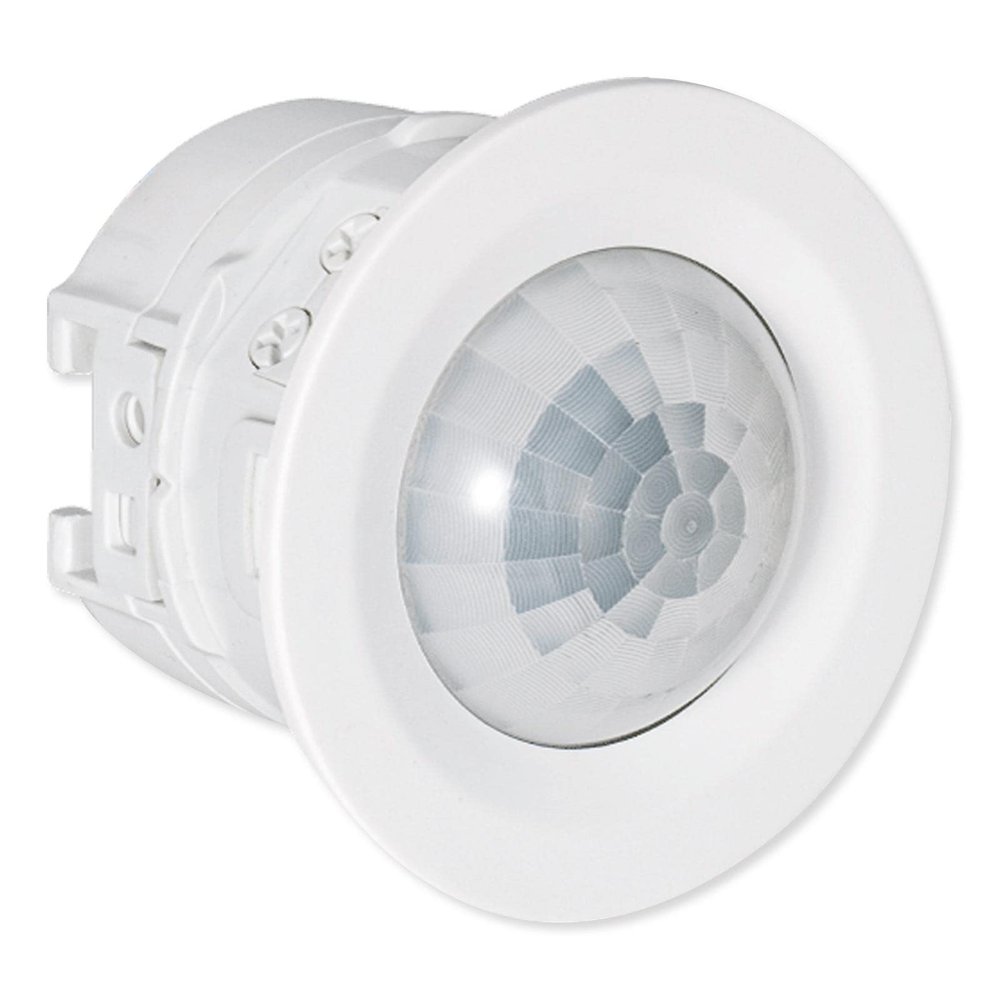

Optex AP-360B(C) Indoor Recessed Mount PIR Detector, 360 Degree, Wired

Description

• 360 (20') detection area at 14' 9" mounting height
• Compact design allows for discreet installation
• Selectable detection sensitivity: High, Medium, and Low
• Tamper switch notifies when the device has been tampered with
• Ceiling mount installation with 86-type box or without

Add discreet motion detection to your home or business with the Optex Indoor Recessed Mount PIR Detector, 360 Degree. This uniquely designed PIR motion detector uses passive infrared technology to detect motion covering 360 up to 20' at a mounting height of 14' 9". It features a tamper switch that will notify when the sensor has been tampered with and it comes with selectable detection sensitivity: High, Medium, and Low. It has a compact design and installs discreetly on a ceiling. It's ideal for large rooms or corner areas that have windows or doors where unwanted intruders can break in and enter. 360 (20') detection area at 14' 9" mounting height Compact design allows for discreet installation Selectable detection sensitivity: High, Medium, and Low Tamper switch notifies when the device has been tampered with Ceiling mount installation with 86-type box or without

Contents
Indoor Recessed Mount PIR Detector Manual

Technical Details
Manufacturer Part #: AP-360B(C) UPC: 788924505022 Color: White Type: Wired Detection Method: Passive infrared Detection Area: Diameter 6 m (Diameter 20') at mounting height 4.5 m (14'9") Mounting Height: 8'2" to 14'9" ( 2.5 to 4.5 m) Mounting Type: Recessed ceiling mount/86-type box mount Sensitivity: 2.0C at 0.6 m/s (3.6F at 2'/s) Detection Speed: 0.3 to 3.0 m/s (1'/s to 9'10"/s) LED indicator: Warm-up upon power on: blinking Stand-by: off Alarm: solid on Alarm Cycle: 2 s to 120 s (variable) Alarm Output: N.O./N.C., 28 V DC 200 mA max. Illuminance: 20 to 320 lux (variable/not detected) Tamper switch: N.C. 28 V DC 100 mA max The contact opens once the casing is detached Warm-up Time: Approx. 60 s Power Supply: 9.5 to 16 V DC Current: 12 V DC Stand-by: 11mA, Max.: 13 mA PIR Sensitivity: H/ M/ L Weight: 50 g (1.76 oz) Operation Humidity: <95% Location: Indoors Dimensions: Diameter 2.05 x 1.67 inches (diameter 52 x 42.5 mm): without switch box mount 3.39 x 3.39 x 1.67 inches (86 x 86 x 42.5 mm): with 86-type box mount
