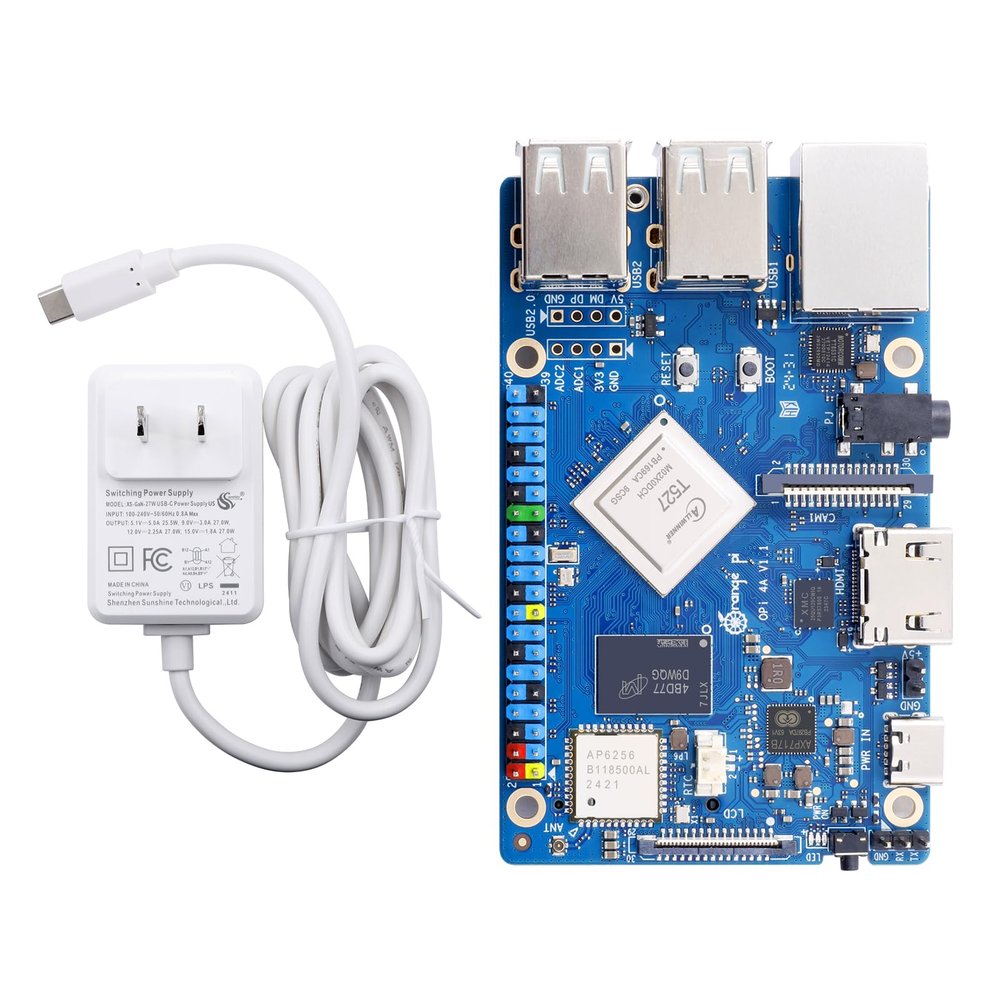

Orange Pi 4A 4GB LPDDR4/4X Allwinner T527 8 Core Single Board Computer, RISC-V Co-Processor 2 Tops NPU 1.8GHz Frequency Wi-Fi 5.0+BT 5.0,BLE Run Ubuntu, Debian, Android13 (Pi 4A 4GB+Supply)

Description

• [High Performance] - Orange Pi 4A 4G is based on AllwinnerT527 octa-core Cortex-A55 + HiFi4 DSP +RlSC-V multi-core heterogeneous industrial-grade processor, supporting 2TOPS NPU to meet the edge of the intelligent Al acceleration applications, supports 2GB/4GB LPDDR4/4X, provides H.265 4K@60fps and H.264 4K @60fps video decoding,H.264 4K@25fps video encoding.
• [Co-processors for RISC-V architecture] - Innovative use of co-processors with RlSC-Varchitecture provides more technology optionsfor real-time control, motion control, fast startup,low-power standby, and system security.
• [Wide Range of Application Scenarios] - OrangePi 4A single board computer can be widely used in intelligent industrial control, intelligent commercial display, retail payment, intelligent education, commercial robotics, vehicle terminals, visual co-driving, edge computing, intelligent power distribution terminals, etc.
• [Rich Extensibility] - Orange Pi 4A 4GB with rich interfaces, including Gigabit Ethernet, PCle2.0, USB2.0, MIPI-CSI, MIPI-DSI 40Pin expansion interface and other commonly used functional interfaces, supports Ubuntu, Debian, Android 13 and other operating systems.
• [New Generation GPU Bringssmoother 3D Graphics Interactionexperience] - Mali-G57 is ARM's first mid-range graphics processor with Valhallarchitecture, providing graphics application support for gamingexperience, multi-screen display and multi-screen interaction.
• [Support Open Source] - Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.

Processor:
T527, 8-core ARM CortexTM-A55@1.8GHz
HIFI4 Audio DSP@600MHz
RISC-V@200MHz
GPU:G57 MC1
VPU:H.265 4K@60fps decoding, H.264 4K@60fps decoding, H.264 4K@25fps encoding
NPU:2TOPS

Memory: LPDDR4/4X: 2GB/4GB (optional)

Storage:
eMMC module (optional)16GB/32GB/64GB/128GB (optional)
SPI flash: 128Mb(default)256Mb (optional)
M.2 M-KEY socketPCIe2.0 NVMe SSD
uSD card slotsupports up to 128GB uSD card

Wi-Fi + Bluetooth:
Wi-Fi + Bluetooth 2-in-1 module
Wi-Fi 5.0+BT 5.0, BLE

Ethernet: 10/100/1000Mbps Ethernet
Display:
1* HDMI TX 2.0 interface up to 4K@60fps
1* 4-lane MIPI-DSI
1* eDP1.3

Camera:
1* 2-lane MIPI-CSI camera interface
1* 4-lane MIPI-CSI camera interface

USB:
1*USB Type-A 2.0
3*USB Type-A 2.0 HOST
1*USB 2.0 HOST, reserved for customer expansion

ADC: Reserved 4Pin connector, can access 2-lane ADC, maximum input 1.8V
Audio: 3.5mm headphone jack audio input/output
Buttons: 1* BOOT1*RESET1 *PWR ON
RTC: 2Pin spare battery connector (Pitch=1.27mm)
40Pin: 40Pin function expansion interface, supports the following interface types:
GPIOUARTI2CSPIPWM
Debug: 3Pin debug serial port
Power supply: Type-C 5V 5A DCIN
Supported OS: UbuntuDebianAndroid13
PCB: 89mm*56mm*1.6mm
Weight: 52g
