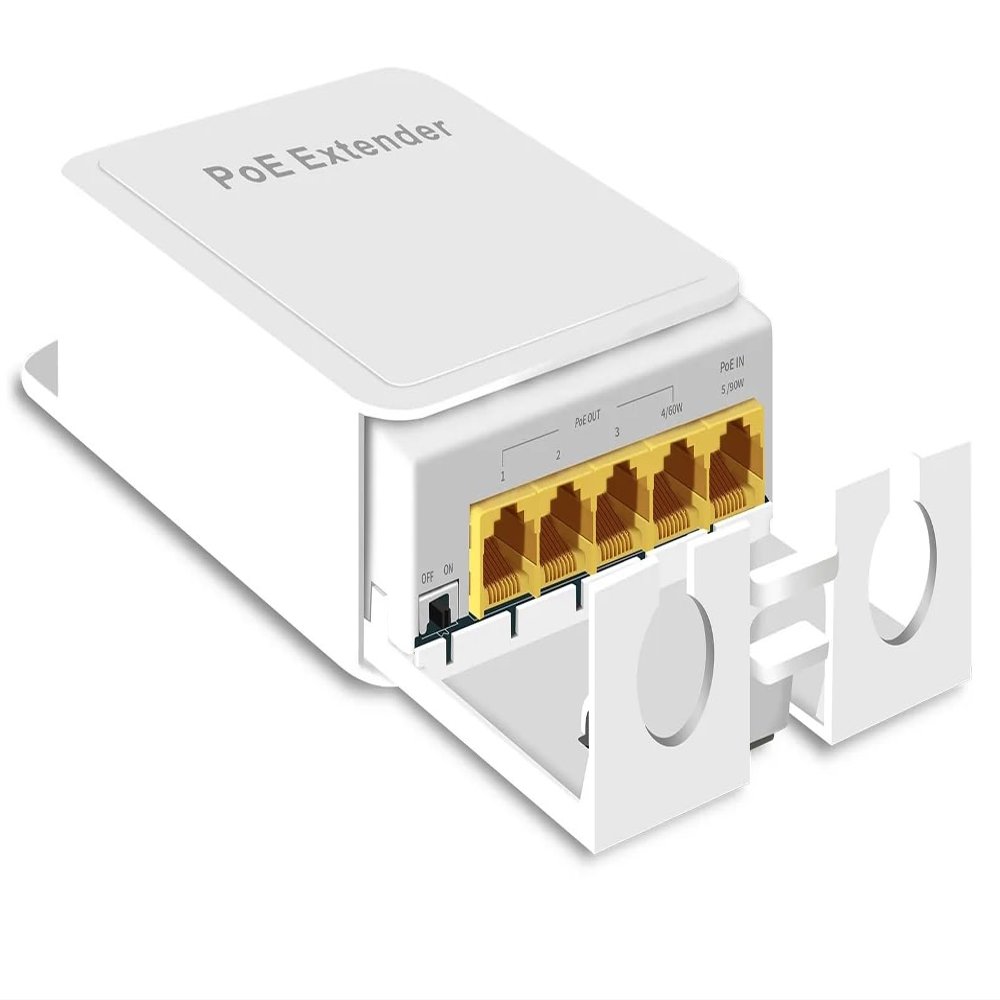

Outdoor 5 Port Gigabit PoE Switch/Extender, IEEE 802.3 af/at PoE Repeater, 10/100/1000Mbps, 1 PoE in 4 PoE Out, Powered by PoE, Wall Mount Waterproof POE Passthrough Switch

Description

• 5 Gigabit PoE Ports: Include 1 PoE In, 5 PoE Out, 10/100/1000Mbps speed. POE transmission distance 100 meters.
• IEEE 802.3 af/at: All ports support this standard PoE, Input Max 90W, Output Max 94W, Average 8W per port. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-). *Powered by PoE: Through the PoE in port, powered by POE network, maximum support 90W IEEE3023af/at standard input, not through the power adapter power supply, more convenient and safe to use in outdoor places where there is no power supply.
• Outdoor Weatherproof: Industrial grade ABS polymer material shell, cable interface are all protected in the shell, which has better waterproof, dustproof, and snowproof effects, and is more suitable for outdoor use; also for complex indoor environments, such as warehouses, computer rooms, garages, attics, etc
• Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.
• Easy Installation: No need for additional power adapter, powered by POE network. Support wall mount, small size, save space, suitable for more positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, increase POE coverage at low cost

5 Ports Outdoor PoE++ Gigabit Extender, 1 in 4 Out PoE Repeater with 1000Mbps, IEEE802.3af/at/bt IP65 Waterproof, Extend Additional 100m(328ft) of Power and Data Transmission, Plug & Play
Product Description Comply with IEEE 802.af Power over Ethernet (10/100/1000M Supported). Extender the range of PoE an additional 100 meters. Automatically detects and protects PoE equipment from being damaged by incorrect installation. Plug-and Play no configuration required. 5-Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable. 5-Port PoE Extender has 4 10/100/1000M Lan ports, among them, one for power input, the other Four for power output. Comply with 10/100/1000 BASE-TX,IEEE 802.3 af-PoE. Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets. ABS Plastic Housing Material, Outdoor Use.
Specification: Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x. PoE connection standard: IEEE 802.3af/at PoE port input power: input maximum 90W PoE port output power: output maximum 90W,1-3 ports30W,4 port60W PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8- PoE power output transmission core: 1/2+, 3/6- PoE power supply transmission distance: 100 meters Power supply transmission medium: 10/100/1000BASE-TX: Category 5 and above non-screen shielded twisted pair. MAC Address Table: 2K Packet Buffer Memory: 48 Byte Switching Capacity: 1.0Gbps Working temperature: -10c to 55c Dimension: 150x98x34mm
