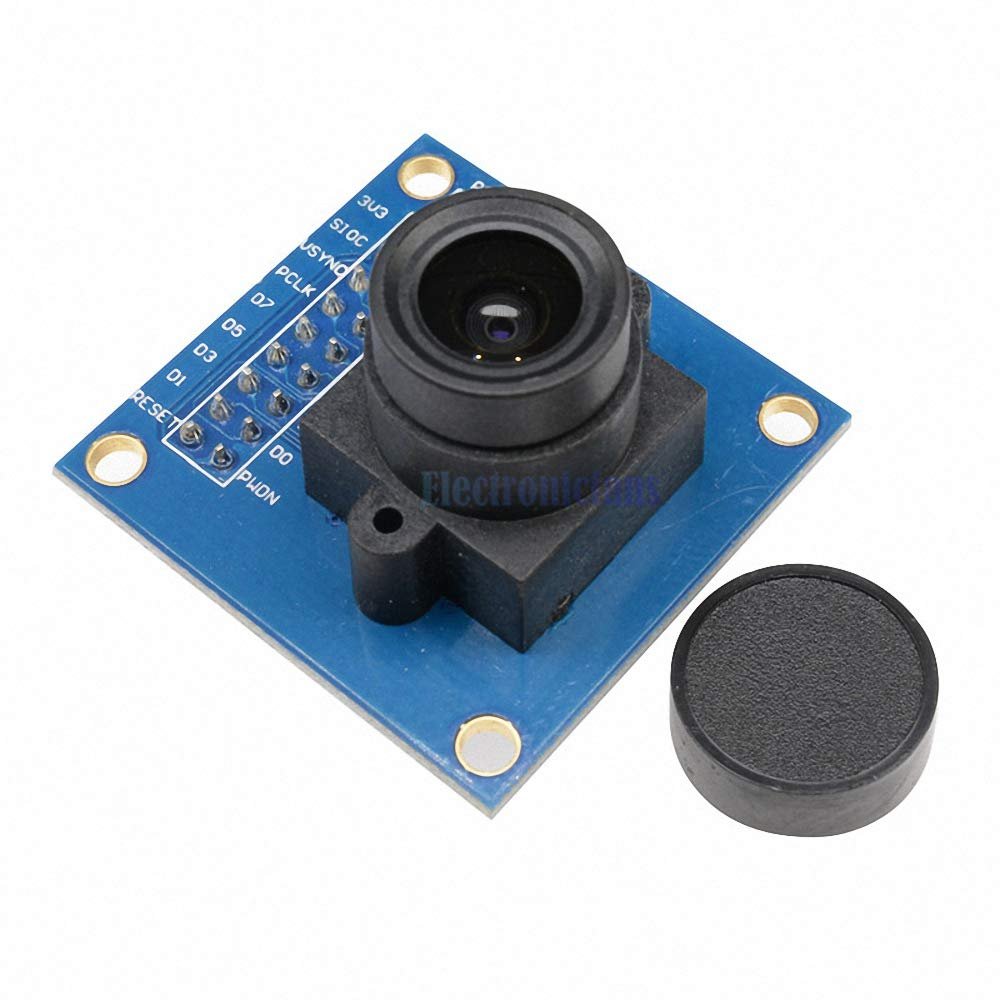

OV7670 300KP Camera Module Supports VGA CIF 640X480 Auto Exposure Control Display Compatible I2C Interface for Arduino DIY KIT

Description

Key parameters
Model Number: OV7670
Pixel size: 3.6m x 3.6m
Support: VGA CIF
Interface: SCCB (compatible I2C)
Photographic array 640X480
IO voltage of 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
Power work 60mW/15fpsVGAYUV
Sleep <20A
Operating temperature -30 *C to 70 *C
Stable operation 0 *C to 50 *C
Output format (8-bit)? YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data
Optical size of 1 / 6 "
25 field of view
The maximum rate of 30fps VGA Chen
Sensitivity 1.3V / (Lux-sec)
46 dB SNR
52 dB dynamic range
View Mode Progressive
E-1 line to 510 line exposure
3.6m x 3.6m pixel size
Dark Current 12 mV / s at 60 *C
