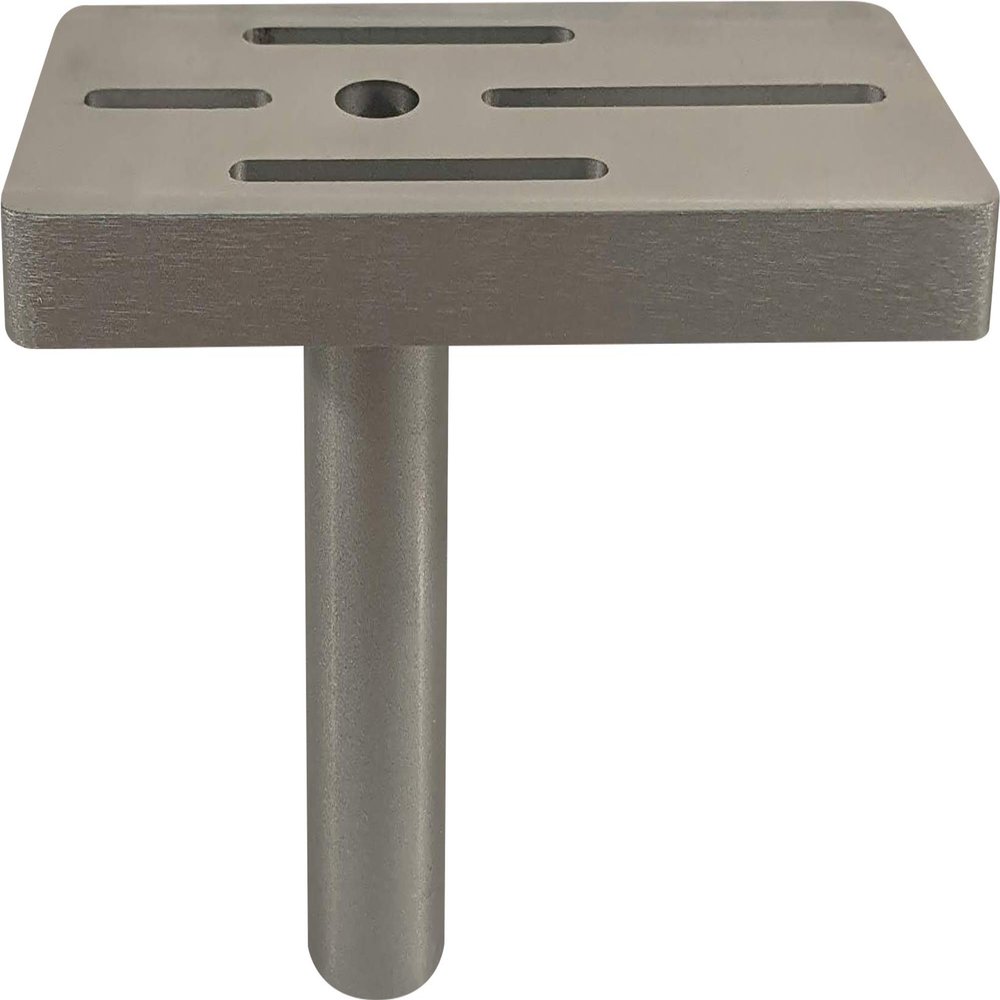

PANAVISE 437 Heavy Duty Fixturing Head

Description

• Flat Head is 3 x 6 (76.2mm x 152.4mm). Shaft is 1 (25.4mm) in diameter and 3.25 (82.5mm) long
• Shaft is drilled and tapped 1/4-20 (screw included) for permanently securing to base
• Height (bottom of shaft to top of head): 4 (101.6mm), Weight: 0.86 lbs. (0.4kg)
• Recommended for use with the 400 Heavy Duty Base

Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses. Introducing the Panavise 437 HEAVY DUTY FIXTURING HEAD, A rugged Fixturing Head for heavy duty projects! Recommended for use with the 400 Heavy Duty Base. Four universal slots 0.29-Inch (7.37mm) wide for attaching forms, parts, etc. Flat Head is 3 x 6 (76.2mm x 152.4mm). Shaft is 1 (25.4mm) in diameter and 3.25 (82.5mm) long. Shaft is drilled and tapped 1/4-20 (screw included) for permanently securing to base. Height (bottom of shaft to top of head): 4 (101.6mm), Weight: 0.86 lbs. (0.4kg).

From the Manufacturer

The PanaVise 437 is a rugged fixturing head designed for heavy duty vise applications involving larger objects with flat surfaces. Its 1" shaft means that it suitable for the heaviest of work bench jobs, and also makes it compatible with the PanaVise 400 heavy duty base. Its flat 3" x 6" head allows users to raise items up off of work benches, securing them through any stable combination of the four slots within it. Slots measure just over 1/4" wide and vary in length to add flexability in securing items. They are evenly spaced along the length of the head, making the PanaVise 437 suitable for any heavy duty or even light industrial vise application in which an object can be screwed or bolted into place. This includes everything from maintenance of small engines, to wood-working and even chiseling. The shaft is pre-drilled and tapped with a 1/4-20 hole (screw included) for optional permanent securing to the PanaVise 400 heavy duty base. Specifications Head size: 3" x 6" (76.2 mm x 152.4 mm) Head slots: 4 slots .29" (7.37 mm) wide Shaft diameter: 1" (25.4 mm) Shaft height: 3-1/4" (82.5 mm) Overall head height (bottom of shaft to top of head): 4" (101.6 mm) Weight: 13-1/2 oz. (0.4 kg) Pre-drilled and tapped shaft securing hole: 1/4"-20 Limited Lifetime Warranty
All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance. About PanaVise
Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, electronics, CCTV camera mounts, and audio/video mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."
