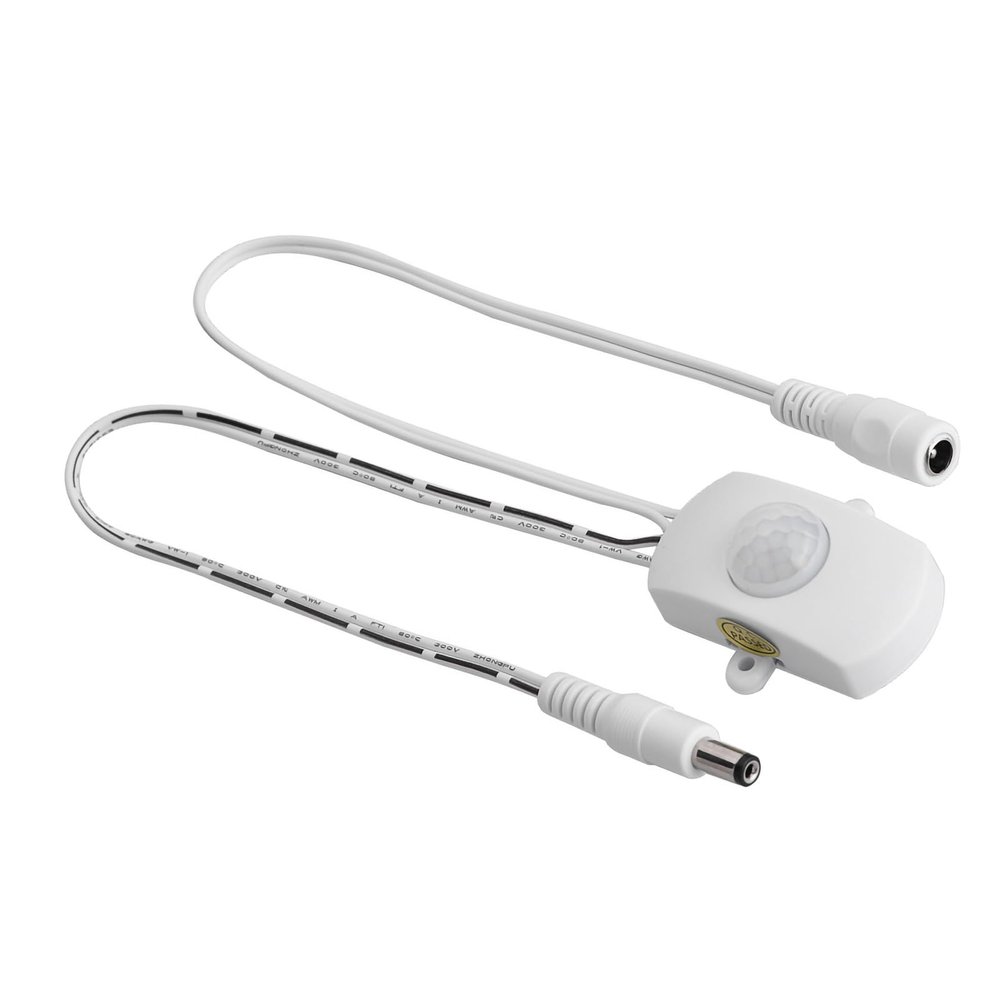

Pir Motion Sensor 5A DC 624V Human Infrared Sensor Power 120 Degrees Cone Angle Motion Sensor Detector LED Strip Automatic (White)

Description

• PIR Motion Sensor: The PIR motion sensor can detect human movement by detecting infrared rays emitted by the human body, and can provide users with a good user experience.
• 120-degree Cone Angle: The human body infrared sensor power has a 120-degree cone angle detection range, and the detection distance can reach 5-7m.
• Low Power Consumption: The output voltage of the mini PIR motion sensor is equal to the input voltage, with low power consumption, high sensitivity and stability, which can effectively save energy and improve efficiency.
• Humanized: PIR infrared motion sensor detector has an adjustable delay range of 15-240 seconds for you to choose the appropriate time, which is more user-friendly.
• Wide Application: This mini PIR infrared motion sensor is widely used in action lighting, LED light strip security systems, automatic sensing devices, etc.

Description

1. PIR Motion Sensor: The PIR motion sensor can detect human movement by detecting infrared rays emitted by the human body, and can provide users with a good user experience.
2. 120-degree Cone Angle: The human body infrared sensor power switch has a 120-degree cone angle detection range, and the detection distance can reach 5-7m.
3. Low Power Consumption: The output voltage of the mini PIR motion sensor switch is equal to the input voltage, with low power consumption, high sensitivity and stability, which can effectively save energy and improve efficiency.
4. Humanized: PIR infrared motion sensor detector has an adjustable delay range of 15-240 seconds for you to choose the appropriate time, which is more user-friendly.
5. Wide Application: This mini PIR infrared motion sensor is widely used in action lighting, LED light strip security systems, automatic sensing devices, etc.

Description:
This switch with PIR Infrared Motion sensordetector, can be used in corridors, bathrooms, basements, warehouses, garagesand other places to achieve electrical automatic control functions. High andstable sensitivity, effectively save energy and money for you.

Specifications:
Color: White, Black (Optional)
Operating voltage: 6V-24VDC (wide voltage)
Working temperature: -20 C ~ +38 C
Quiescent current: <50uA
Output current: 5A
Trigger mode: Continuous trigger
Output Mode: Inductive Output
Delay range: Default setting 15S (15-240seconds adjustable)
Induction mode: passive
Sensing angle: 120 degree cone angle
Sensing distance: 5-7m
Size: 50x40x22.5mm/1.97x1.57x0.87inch

Package List:
1 x PIR Motion Sensor Power Switch
1 x Screw
