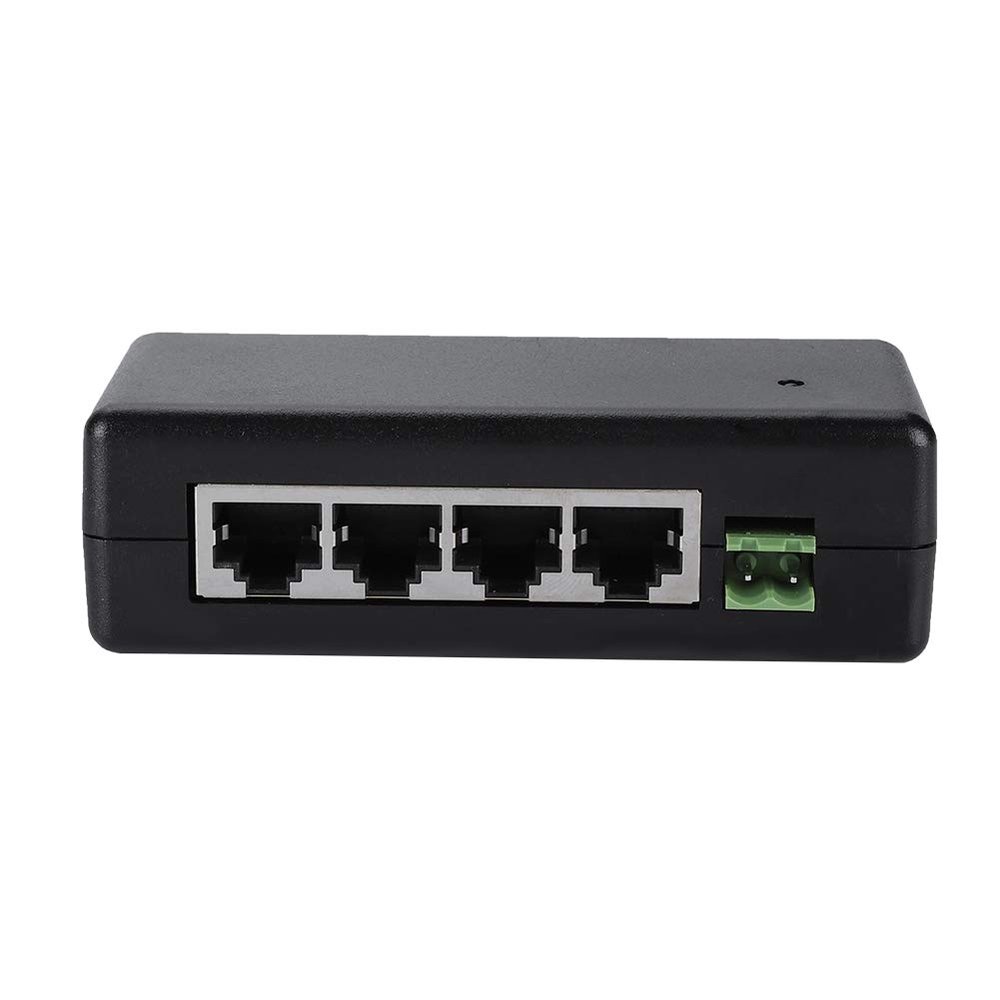

PoE Ethernet Power Supply 4 Port POE DC 12V-48V Power Adapter Injector for IP Camera 802.3af/802.3at Device

Description

• Made of plastic material, sturdy and to use. Conform to international safety product standards and is to use.
• This PoE injector is compatible with IEEE802.3af/at network devices. Apply for IEEE802.3af/at standard POE powered devices
• This Non standard passive PoE injector is a simple and convenient equipment for PoE or Non PoE devices via an Ethernet cable
• This device does not have auto detection function and directly supply power to the network devices by force as soon as you connect them, powered device or poe splitter must conform to standard IEEE 802.3af/at, the same time your powered device must support poe pin 4/5(+), 7/8(-) midspan.
• Please select according your device power consumption, in order to ensure stable running, the total power consumption must be lower than the total power supply.Tip: the power voltage should not be over DC48V.

Specifications:
Voltage: DC12V-48V(up to 10A)
Led: Indicate the working state
Power pin: 4&5(+), 7&8(-); Data pin: 1236
Lan port: 8ports in RJ45(data in), 8port poe RJ45(data&power out)
Lan environment: 10/100Mbps Base-T, Ethernet cable: TIA/EIA 568 Cat.5 or Cat.5e
Data in: PC/Hub/Switch/Router, etc.
Working temp: 0~+40C
Working humidity: 20 ~90% RH non-condensing
Storage temp & humidity: -20~+85C, 10~95% RH
Size: 10cm*4.7cm*3.1cm/3.9*1.9*1.2in
Package Weight: 98g/3.5oz

Notes:
1. Please select according your device power consumption, in order to ensure stable running, the total power consumption must be lower than the total power supply.
2. Tip: the power voltage should not be over DC48V.
Notice:Package do not include the power supply.
