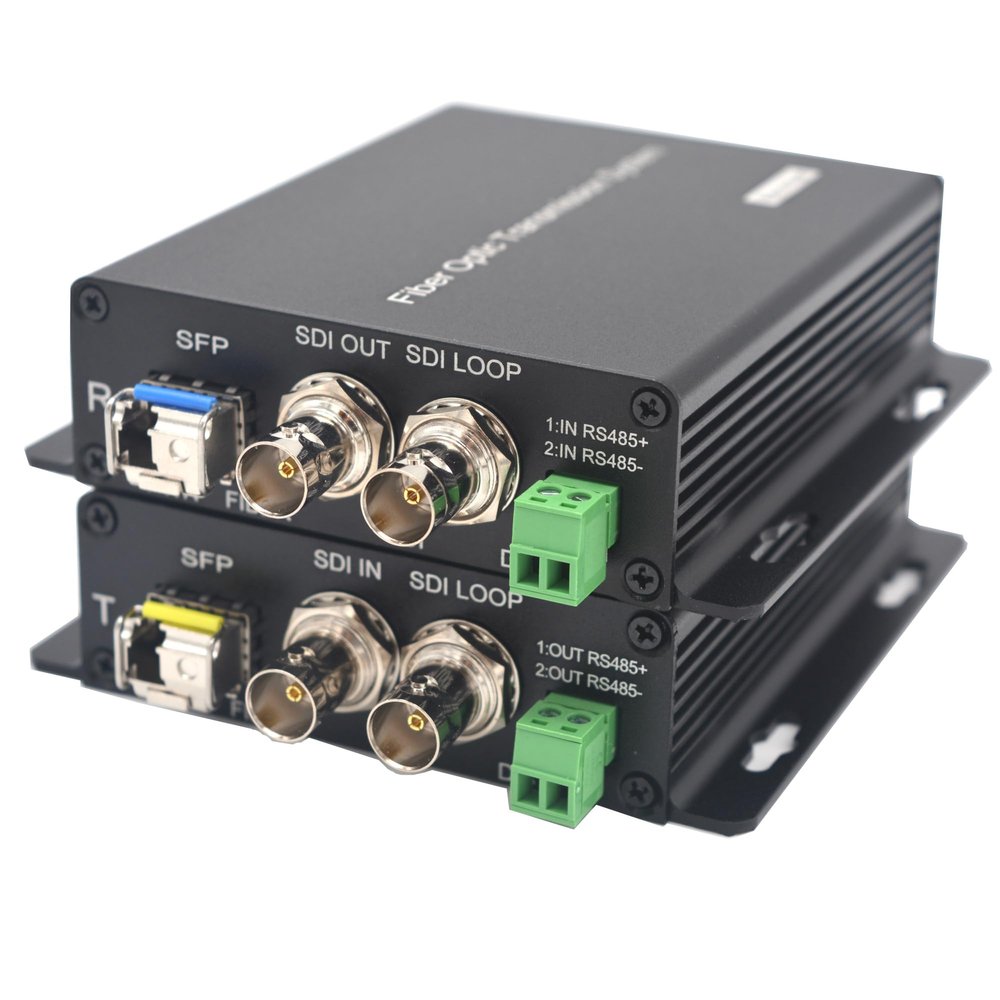

3G/HD-SDI Over Fiber Extender LC Uncompressed Professional Full HD Loop Out Singlemode Single Fiber up 20Km (12.4mi) No Loss Broadcast with 2X 3G SFP Module A Set

Description

• The SDI over fiber extender can extend Uncompressed 3G/HD-SDI over a fiber optic to far end. Suitable for Universal Single-mode (SM) and multi-mode (MM). Singlemode single fiber reach up to 12.4miles (20Km), Multimode single fiber up to 500m.
• Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz and backward compatible. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards.
• Broadcast High grade design, with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
• Support Video loop out function and one reverse direction RS485 data, Supports embedded digital audio stream.
• Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
• Plug and play, No need to set up.

SDI Video:
1.Physical Interface: BNC
2.Max Resolution: 1920 x 1080 @ 60Hz
3. Video Input and Output Impedance: 75 (unbalanced).
4. Video Input/output VoltageTypical:1Vpp, Min 0.5Vpp, Max 1.5Vpp 5. Video Bits Rate: Max 2.97Gb/s.
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.

Optical Interface: LC, single port.

Electrical & Mechanical :
1. Power supply: AC100-240V,DC5V2A.
2. Dimensions:104*108*28mm (LxWxH).
3. Product weight (including the outer packaging):0.8Kg/Set.

Data
1. Physical Interface: standard industry block terminal.
2. Interface signal: RS485 reverse direction.
3. Baud Rate:0-400Kbps.
4. BER 100,000 hours

Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2x Power supply adapters (US standard)
1 x FREE 3M LC-LC S/M fiber patch cord
1x User Manual
