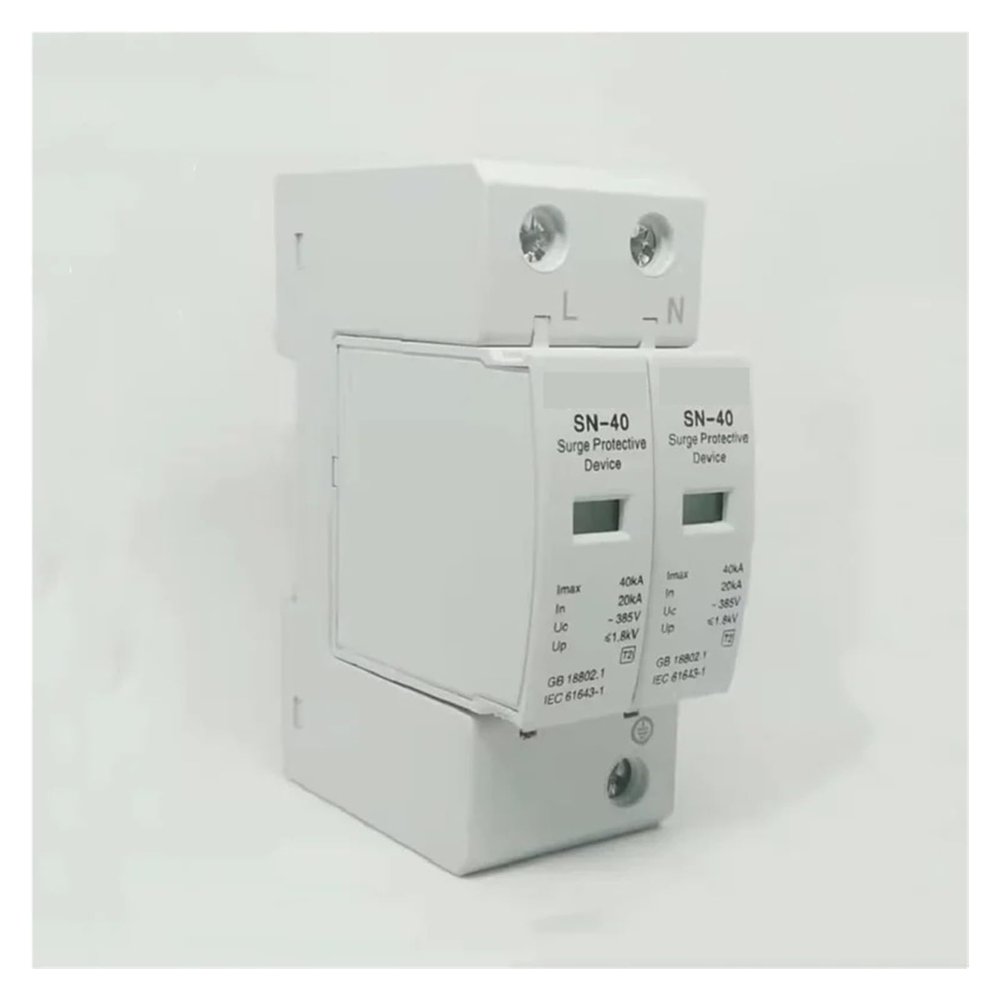

PYKFVTGL SPD 20KA 40KA 2P 20ka40kasurge Arrester Protection Device Electric House Surge Protector 385V AC(30-60kA)

Description

• Stable Performance: Made of precision electronic components, with a longer service life, copper fittings, and good conductivity
• Materials: Made of PC flame retardant material, safer to use, modular design, very easy to use and maintain
• Ultimate Protection: Our surge protector is designed to shield electrical systems and load devices from the damaging effects of lightning strikes and sudden voltage surges
• Long Service Life: This product is made of precision electronic components, which have a longer service life and more stable performance
• Scope of applicationIt is suitable for the new energy solar power generation system, and protects the lightning current connected to the tube, the direct lightning current or other instantaneous overvoltage

Technical parameters
surge protectiondeviceSN-40/2P-385
SPD to EN 61643-II
Type 2
SPD to IEC 61643-I
Class II
SPD to VDE 0675-6
Class C
Max. continuous voltage Uc
385 V
Nominal discharge current (8/20s) In
20 kA
Max. discharge current (8/20s) Imax
40 kA
Voltage protection level Up
1.8kV
Response time tA
25 ns
Max. back-up fuse
125 Agl/gG
Short-circuit withstand current
25kA/50Hz
Operating temperature range TU
-40C+80C
Cross-sectional area (min.)
1.5 mm2solid / flexible
Cross-sectional area (max.)
35 mm2stranded / 25 mm2flexible
Mounting on
35 mmDIN rail acc. To EN 60715
Degree of protection
IP 20
Housing material
Thermoplastic; extinguishing degree UL 94 V-0
Remote signaling contact (floating switch)
Yes (optional accessory)
Switch capacity
AC: 250V/0.5A; 125V/3 A
Cross-sectional area for remote signaling terminals
Max. 1.5 mm2solid / flexible
