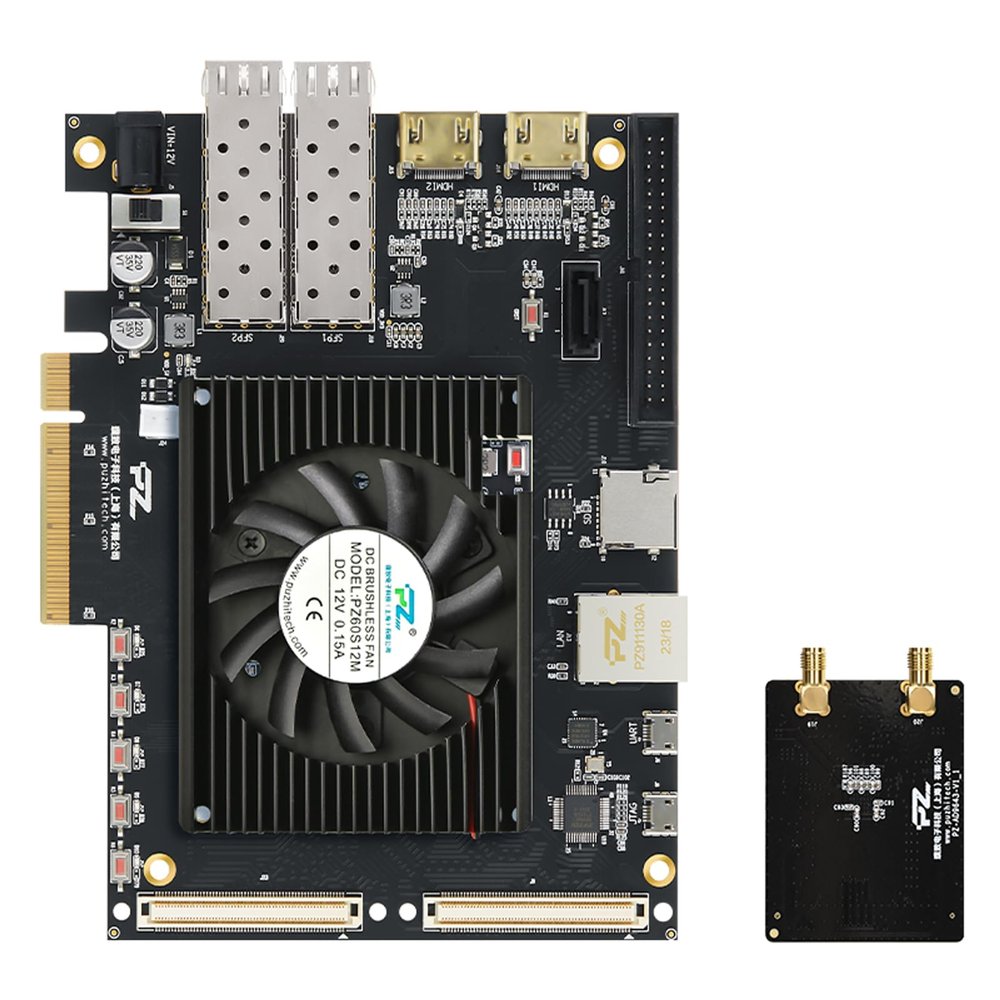

PZ-K7325T-KFB PZ-K7410T-KFB FPGA Development Board AMD Xilinx Kintex-7 325T 410T PCIe SFP HDMI SATA DDR4 (PZ-K7325T-KFB, High Speed ADC Package)

Description

• Xilinx Kintex-7 FPGA Core Options:Offers two variants: XC7K325T (326K logic cells) and XC7K410T (406K logic cells), suitable for a wide range of high-speed embedded and DSP applications.
• Comprehensive High-Speed Interfaces:Equipped with PCIe2.0 x8, dual SFP optical ports, SATA, HDMI in/out, Gigabit Ethernet, USB to UART/JTAG, and SD card interfaceready for bandwidth-intensive workloads.
• Industrial-Grade Stability:Supports -40C to +85C operation with 256Mb QSPI Flash and 2GB DDR4 memory, ensuring stable boot and reliable performance in harsh industrial environments.
• Flexible I/O and Expansion:Two 120-pin high-speed expansion ports and one 40-pin port provide up to 288 single-ended / 144 differential I/Os, supporting AD/DA, camera, LCD, and more peripherals.
• Optimized for Developers:Integrated user LEDs, reset and user keys, onboard oscillators (200MHz/125MHz), and detailed hardware documentation make it ideal for R&D, system prototyping, and testing.

The PZ-K7325T-KFB and PZ-K7410T-KFB FPGA development boards are advanced solutions built on Xilinx Kintex-7 industrial-grade FPGAsXC7K325T and XC7K410T respectively. Designed for signal processing, embedded computing, and high-speed data applications, these boards integrate up to 406K logic cells, 1540 DSP slices, and 2GB of DDR4 memory. Both models feature rich connectivity, including PCIe Gen2 x8, dual SFP for optical communication, SATA, HDMI input/output, Gigabit Ethernet, USB to UART, USB to JTAG, and an SD card slot. Expansion options include two 120-pin connectors and a 40-pin GPIO port, supporting Puzhi peripheral modules such as AD/DA converters and camera interfaces. With industrial temperature tolerance (-40C to +85C), 256Mb onboard QSPI Flash, and flexible JTAG/QSPI boot support, these boards are ideal for harsh environments and real-time systems. Whether you are prototyping FPGA logic, building custom IPs, or integrating high-bandwidth hardware accelerators, this board series offers the flexibility and performance to match your development needs.
