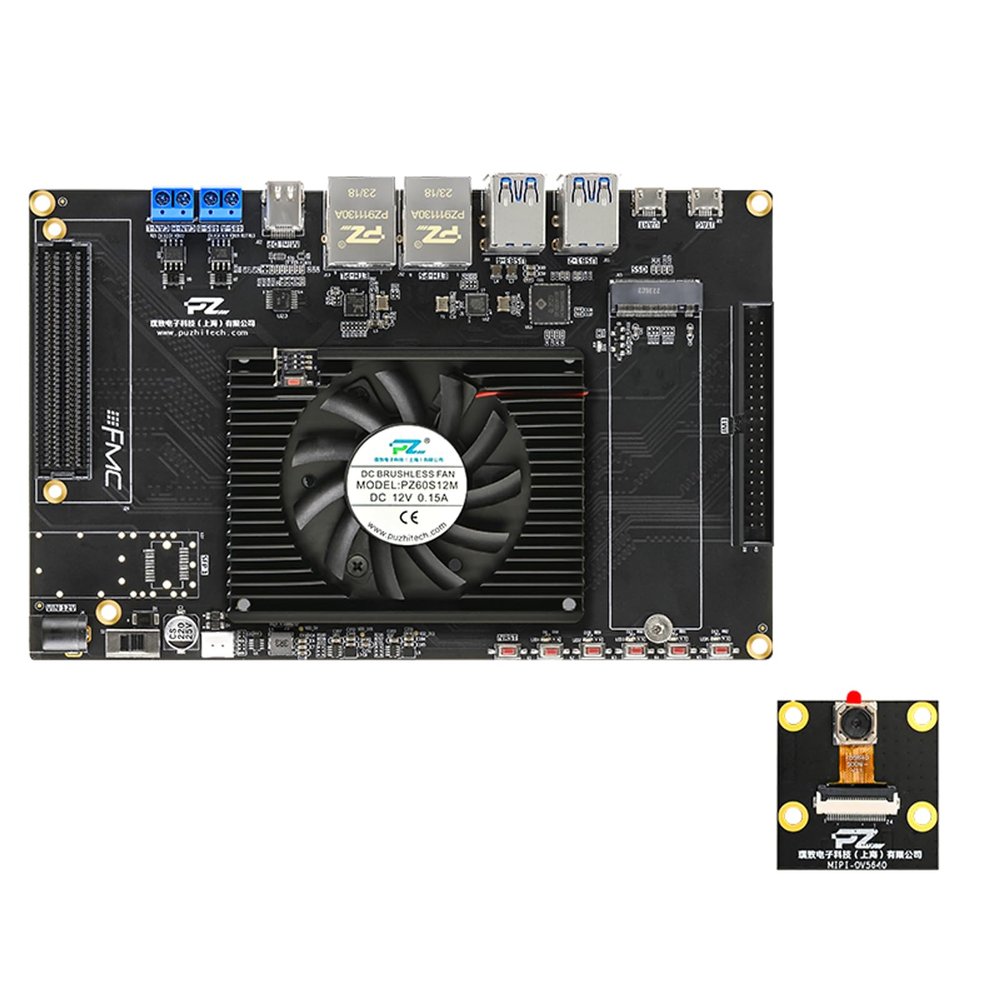

PZ-ZU2CG-FL-KFB PZ-ZU3EG-FL-KFB AMD Zyng Uitrascale+ FPGA Board ZU2CG ZU3EG SOM DDR4 USB3.0 FMC Mini DP Dual Gigabit Ethemet FPGA Development kit (PZ-ZU3EG-FL-KFB, MIPI Package)

Description

• Industrial-Grade ZU2CG/ZU3EG SoC Core:Powered by Xilinx ZU2CG/ZU3EG SoC with up to 4x Cortex-A53 and 2x Cortex-R5. Built for edge AI, embedded computing, and high-reliability industrial applications.
• Rich Interfaces for Versatile Development:Features 4x USB3.0, 2x Gigabit Ethernet (PS+PL), CAN/RS485, Mini DP, FMC LPC (72 SE/36 Diff Pairs), USB to UART/JTAG, and 40-pin expansion port.
• Expandable Storage & Boot Options:Includes 8GB eMMC, QSPI Flash, SD card boot, and PS-side NVMe SSD slot. Multiple startup modes: SD, EMMC, JTAG, and QSPIflexible for embedded workflows.
• High-Speed DDR4 Memory:Integrated 4GB DDR4 on PS side and 1GB DDR4 on PL side. Efficient for compute-intensive tasks like AI inference, video processing, and SDR applications.
• Rugged and Developer-Friendly Design:Black matte PCB with immersion gold process, supports -40C to +85C. Equipped with 5 user LEDs, 5 keys, reset switch, and on-board crystal oscillators.

This FPGA development board integrates the Xilinx Zynq UltraScale+ ZU2CG or ZU3EG chip with robust hardware resources for advanced embedded development. Designed with industrial-grade reliability (-40C to +85C), it includes powerful processing cores (up to 4x Cortex-A53 and 2x Cortex-R5), high-speed DDR4 RAM (PS: 4GB / PL: 1GB), USB3.0 interfaces, and dual Gigabit Ethernet for PS and PL sides. Developers benefit from the flexible boot options (JTAG/EMMC/QSPI/SD), integrated NVMe SSD support, FMC LPC expansion, CAN/RS485 communication, and 40-pin extension header for custom modules like AD/DA conUltraScaleverters, cameras, or LCDs. Ideal for industrial AI, edge computing, video processing, and high-speed data acquisition systems.
