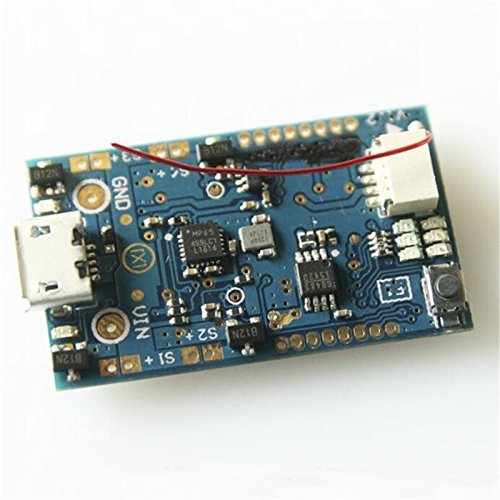

Quickbuying Hot New Micro Scisky 32bits Brushed Flight Control Board Built-in Flysky Compatible RX for DIY Micro Frame

Description

• High Quality micro scisky
• Use : Vehicles & Remote Control Toys

Material : Composite Material
RC Parts & Accs : Receivers
For Vehicle Type : Helicopters
Model Number : no
Technical parameters : Value 10
Use : Vehicles & Remote Control Toys
Upgrade Parts/Accessories : Flight Control Board
Remote Control Peripherals/Devices : Flight Control Board
Four-wheel Drive Attributes : Flight Control Board
Tool Supplies : Flight Control Board

Notes:
The Scisky 32bits brushed FC with built-in FlySky / Futaba SFHSS / DSMX/DSM2 compatible receiver gets the same appearance on one side of the board, the only difference is the hardware for receiver on the other side of the board.
Description:
Size: 20.0*33.5*6.0mm (not including the USB protruding part)
Weight: 2.5g (including FlySky compatible 7CH receiver by serial port output)
Frequency for driving motor: 2000 (the frequency can be set up by user, max frequency can be 32K)
Brushed ESC: continuous working current is 4.2A, max current is 6A(5S);

Feature:
The hardware of the FC is based on Naze 32, test firmware is cleanflight Naze V1.9.0 and V1.8.1.
Integrated with DCDC voltage booster circuit( output 5.0V/500Ma), it can supply power for other device through IIC and UART port;

Noting:
1.It will enters binding mode only after powered of 10 seconds automatically, you need to try to get transmitter closer to the board, something like 5cm will be better.
2.No binding button on the board.
Package Include:
1 x Brushed Flight Control Board (Built-in FlySky Compatible RX)
