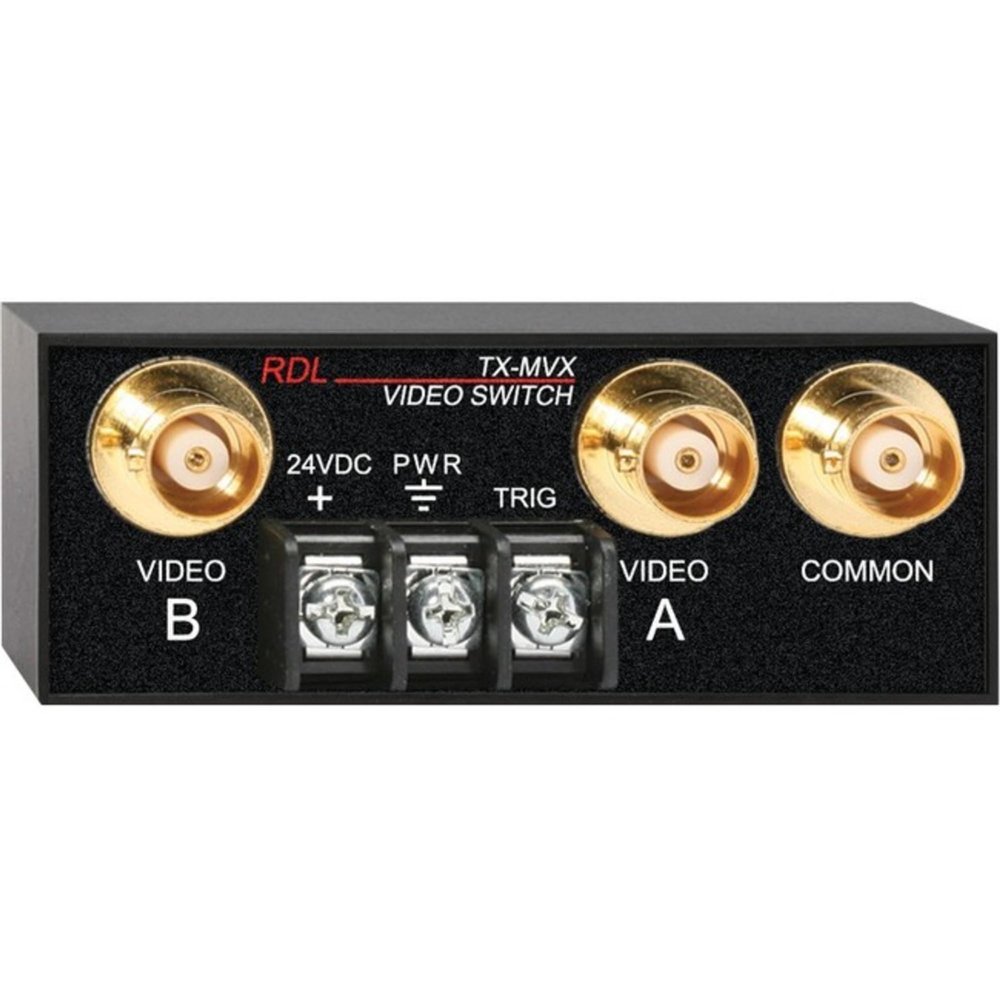

Radio Design Labs TX-MVX Manual Remote Controlled Video Switch - 2x1 - BNC

Description

• The TX-MVX is the ideal choice in installations where either a manual switch or an open-collector must switch video signals
• VIDEO A is normally connected to COMMON
• When the TRIG terminal is pulled to ground, VIDEO B is connected to COMMON and VIDEO A is disconnected
• The TX-MVX utilizes a high-quality RF relay allowing the module to either route a single video source to one of two destinations, or switch two video sources to a single video destination
• The actual switch (or other module actuating the switch action) may be located remotely from the TX-MVX

The TX-MVX is the ideal choice in installations where either a manual switch or an open-collector must switch video signals. VIDEO A is normally connected to COMMON. When the TRIG terminal is pulled to ground, VIDEO B is connected to COMMON and VIDEO A is disconnected. The TX-MVX utilizes a high-quality RF relay allowing the module to either route a single video source to one of two destinations, or switch two video sources to a single video destination. The actual switch (or other module actuating the switch action) may be located remotely from the TX-MVX. Many RDL modules feature an open-collector SLAVE control terminal. These terminals may be used to control the TX-MVX. Alternatively, relay contacts on other equipment may also be used to control the TX-MVX. For example when used with other RDL modules, the TX-MVX could switch video: using audio detection (ST-ACR) from an external audio source using video detection (TX-VCR) from another video source at a prescribed time during a power-up sequence (RU-SQ6A) from logic signals (ST-LCR) using wall-mounted remote controls (RT2 or RC2-ST) Use the TX-MVX individually in NTSC or PAL systems, or combine it with other RDL products and various mounting accessories as part of a complete audio/video system.
