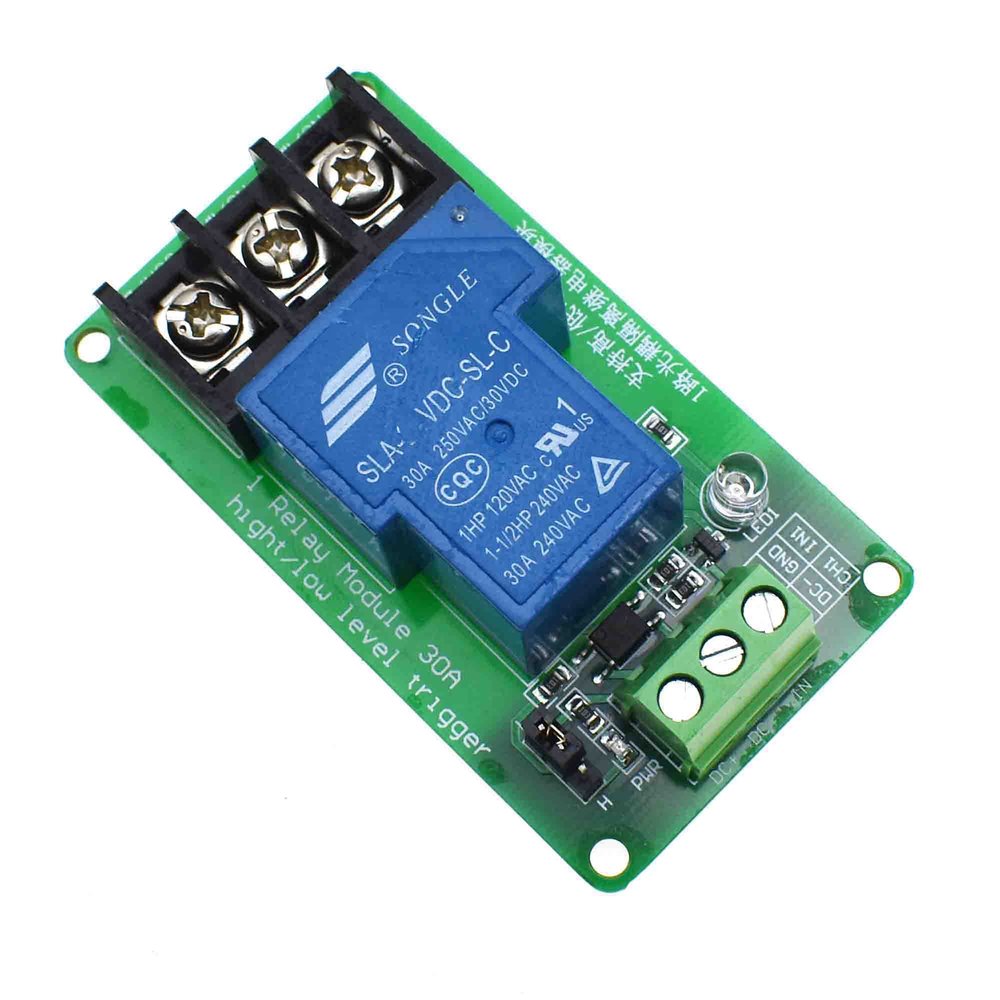

Reland Sun-30A 1 2 4 Channel Relay Module High Low Level Trigger Optocoupler Isolation Load DC 30V AC 250V 30A PLC Industrial Control for Automation Equipment Control (1-Channel 5V)

Description

• Product Applications: PLC automation equipment control, industrial system control, Internet of Objects, electronics enthusiasts to develop experiments, all kinds of circuit modification.
• Any channel with optocoupler insulation, anti-interference.
• Use high power relay, control the load up to 30A.
• Each channel with relay on/off LED display.

Style: 1-Channel
Electrical parameters:
Supply voltage: DC5V/12V24V Optional;
Still current: 5mA;
Maximum operating current: 190mA;
Trigger mode: High/Low Level Trigger;
Load voltage: DC 30V/AC 250V;
Load current: 30A;
Module life: 10 million times;
Change maximum frequency:? 5kHz;

Style: 2 Channel
Electrical parameters:
Supply voltage: DC5V/12V24V Optional;
Maximum working current: 190mA (5V) 80mA (12V) 50mA (24V);
quiet current: 5mA;
trigger mode: High/Low Level Trigger;
Load voltage: DC 30V/AC 250V;
Load current: 30A;
Change maximum frequency:? 5kHz;

Style: 4 Channel
Electrical parameters:
Supply voltage: DC5V/12V24V Optional;
Still current: 5mA;
Maximum working current: 190mA (5V) 80mA (12V) 50mA (

24V) trigger mode: High/Low Level Trigger; Load voltage: DC 30V/AC 250V;
Load current: 30A;
Module life: 10 million times;
Change maximum frequency:? 5kHz;

5VTrigger voltage range:
High level trigger:
DC 3.3-5V relay on;
DC 0-2.5V relay off;
-
---Low level trigger:
DC 0-2V relay on;
DC 3-5V relay off;

12V trigger voltage range:
High level trigger:
DC 6-12V relay on;
DC 0-5.5V relay off;
-
--Low level trigger:
DC 0-5V relay on;
DC 6-12V relay off;

24VTrigger voltage range:
High level trigger:
DC 12-24V relay on;
DC 0-8.5V relay off;
-
--Low level trigger:
DC 0-12V relay on;
DC 13-24V relay off;
