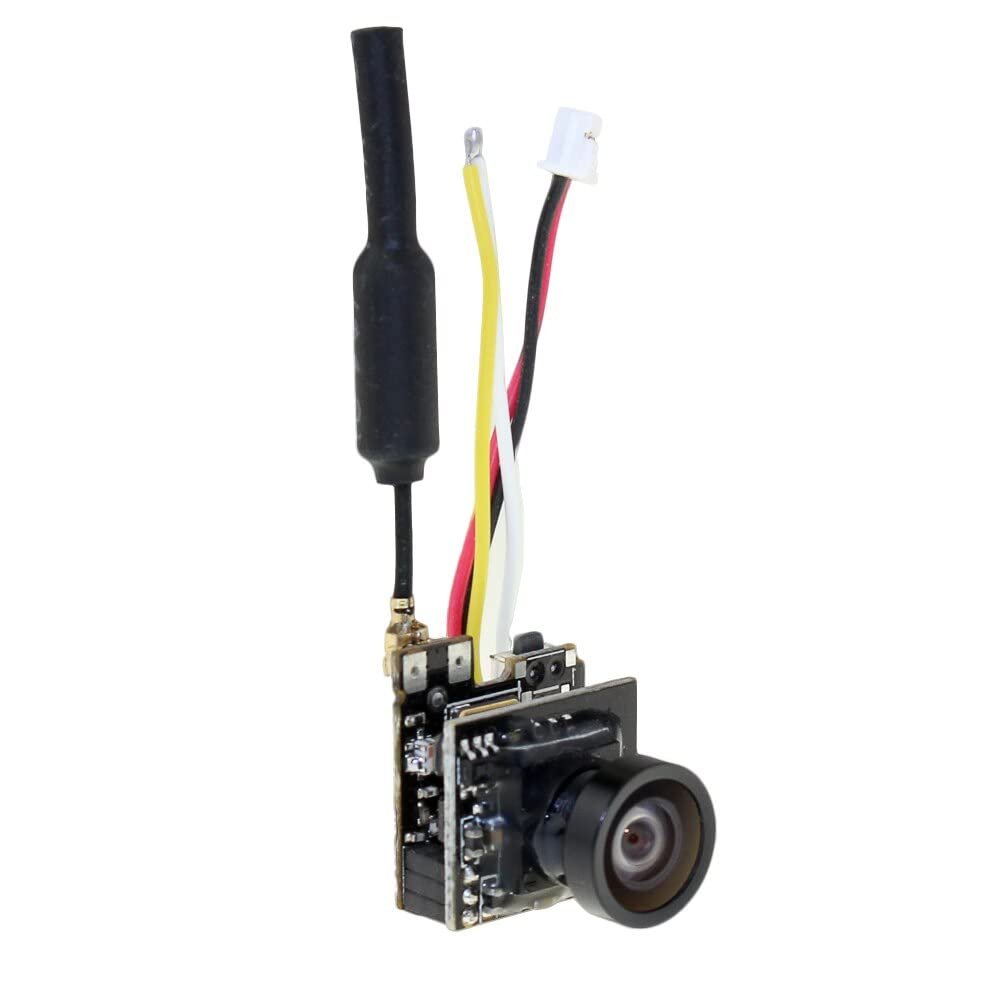

Replacement Part For LST - S2 OSD 5.8G 800TVL HD Micro CMOS FPV Camera 150-Degree Angle Of View 3.6g Ultralight PAL/NTSC Switchable

Description

• Use: Vehicles & Remote Control Toys
• Material: Composite Material
• Four-wheel Drive Attributes: Assemblage
• Tool Supplies: Gluing
• Technical parameters: Value 2

Item Description:
FPV Camera
Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 FOV horizontal viewing angle of 170 DFOV diagonal perspective Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
Video Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
Body
Weight: 3.6g
Size: 26x20x18mm (without antenna)
Feature:
AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 FOV horizontal viewing angle of 170 DFOV diagonal perspective
Five bands 40 channels with Race band
Package Included:
1 X LST-S2 AIO FPV Camera
1 X wiring harness
1 X User Manual
1)
Item Specification:
Use: Vehicles & te Control Toys
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
Tool Supplies: Gluing
Technical parameters: Value 2
Wheelbase: Bottom Plate
For Vehicle Type: Airplanes
Size: Mista 800TVL CCD
RC Parts & Accs: FPV Camera
te Control Peripherals/Devices: FPV Camera
Upgrade Parts/Accessories: FPV Camera
