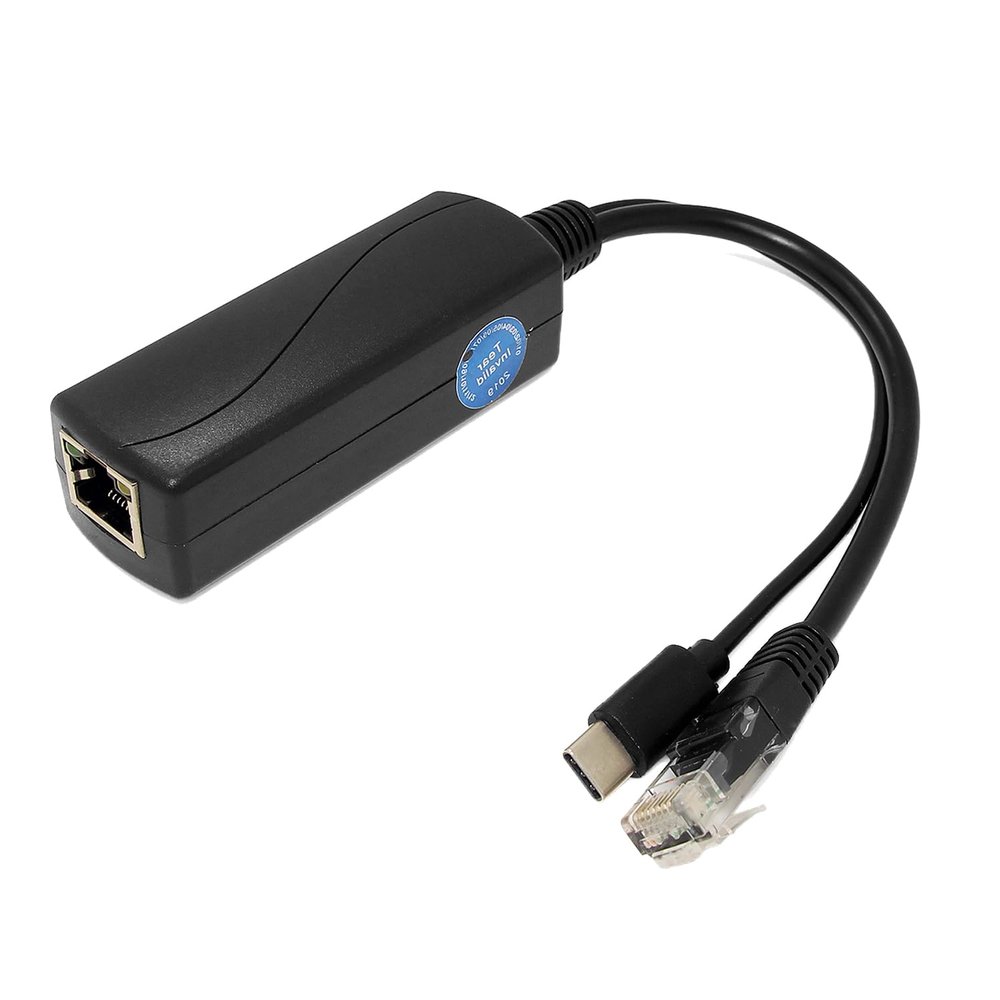

REVODATA 2.5G Type C PoE Splitter 5V/2.4A, 48V PoE to USB-C 5V/2.4A 12W Output, 2.5Gbps Ethernet Comply IEEE802.3af/at, Plug and Play for Smart Home

Description

• Type-C 5V/2.4A Output 48V PoE convert to Type-C (USB C) 5V/2.4A adaptive power output, the Type-C port only deliver power.
• 2.5Gbps Speed Support up to 2.5Gbps Internet speed, enable your device run at full speed. Provide super fast Ethernet transmission without delay.
• Easy Set up Easy to power your Type-C device with plug and play function, Auto detect power from Power Sourcing Equipment. Auto deliver proper power for Type-C device.
• Multiple ProtectionSupport the isolation circuit protection, the short circuit protection, the overvoltage protection, can effectively protect your equipment.
• How to UseUsing IEEE802.3af/at PoE switch or PoE injector power the splitter, the PoE splitter will separate PoE into power and data via RJ45 port and Type-C port, provides power and data for Non-PoE terminal device like smart home device

Note:
2.5Gbps speed performance requires 2.5GB capable networking infrastructure, please eusure your network environment support 2.5G Ethernet.

Specifications
Support international standard IEEE802.3 af/at;
POE port Support 2.5Gbps data transmission
PD support 44V-57V voltage transmission, Automatically detects power supply from PSE power supply module
5V/3A power output using Type-C, the Type-C port only for power-charging.
Support the isolation circuit protection, can effectively protect electrical equipment.
Support the short circuit, overvoltage protection
1500V high voltage isolation

Model: TYPEC0502G-X
Transfer Rate: 10/100/1000Mbps, 2.5Gbps
Power: Input 48V DC /0.6A, Output 5V/2.4A
Standard: IEEE802.3 af/at
TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)
Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC outputType-C
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at
LED: Yellow PoE lamp
Temperature: Work within -20~50,Storage within -30~60
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
Dimension: 27.5 x 2.8 x 2.3cm
Weight: 0.05kg

Package Content:
1* Gigabit POE Splitter (TYPEC0502G-X)
