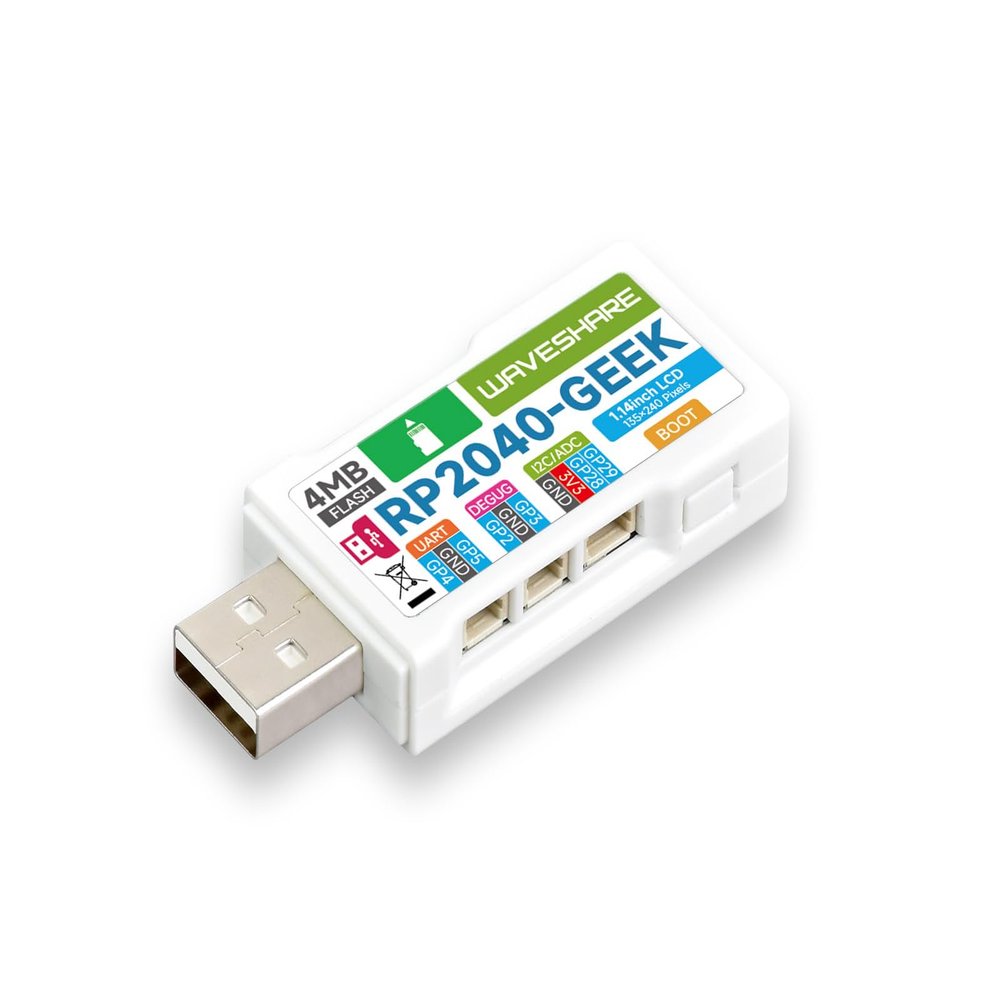

RP2040-GEEK Development Board Based On Raspberry Pi RP2040 Microcontroller Chip, USB Debugging Downloader Onboard USB-A Interface, TF Card Slot,SWD/UART / I2C Port, 1.14inch 65K Color LCD Screen

Description

• RP2040-GEEK is a geeks development board designed by Waveshare, onboard USB-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port
• Onboard 3PIN SWD port for connecting the debugged target board: Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers, Works with OpenOCD and other tools supporting CMSIS-DAP, Adopts the Raspberry Pi 3PIN Debug Connector Specification
• Onboard 3PIN USB to UART bridge. Onboard 4PIN I2C port for the testing target board
• Onboard 1.14inch 240135 pixels 65K color IPS LCD display
• Equipped with plastic case and cables. Open-source firmware, more convenient to upgrade

Board specifications

RP2040-GEEK is a geeks development board designed by Waveshare, onboard USB-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port.

Key features include:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Combines multi functions in one: Onboard multi interfaces and 1.14inch LCD display, compatible with multi debugging methods
Onboard 3PIN SWD port for connecting the debugged target board:
--Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers
--Works with OpenOCD and other tools supporting CMSIS-DAP
--Adopts the Raspberry Pi 3PIN Debug Connector Specification
Onboard 3PIN USB to UART bridge
Onboard 4PIN I2C port for the testing target board
Onboard 1.14inch 240135 pixels 65K color IPS LCD display
Equipped with plastic case and cables
Open-source firmware, more convenient to upgrade

Application Example: Connect to the debugging interface of Pico via the 3PIN SWD cable

Package Content
RP2040-GEEK and cables x1
