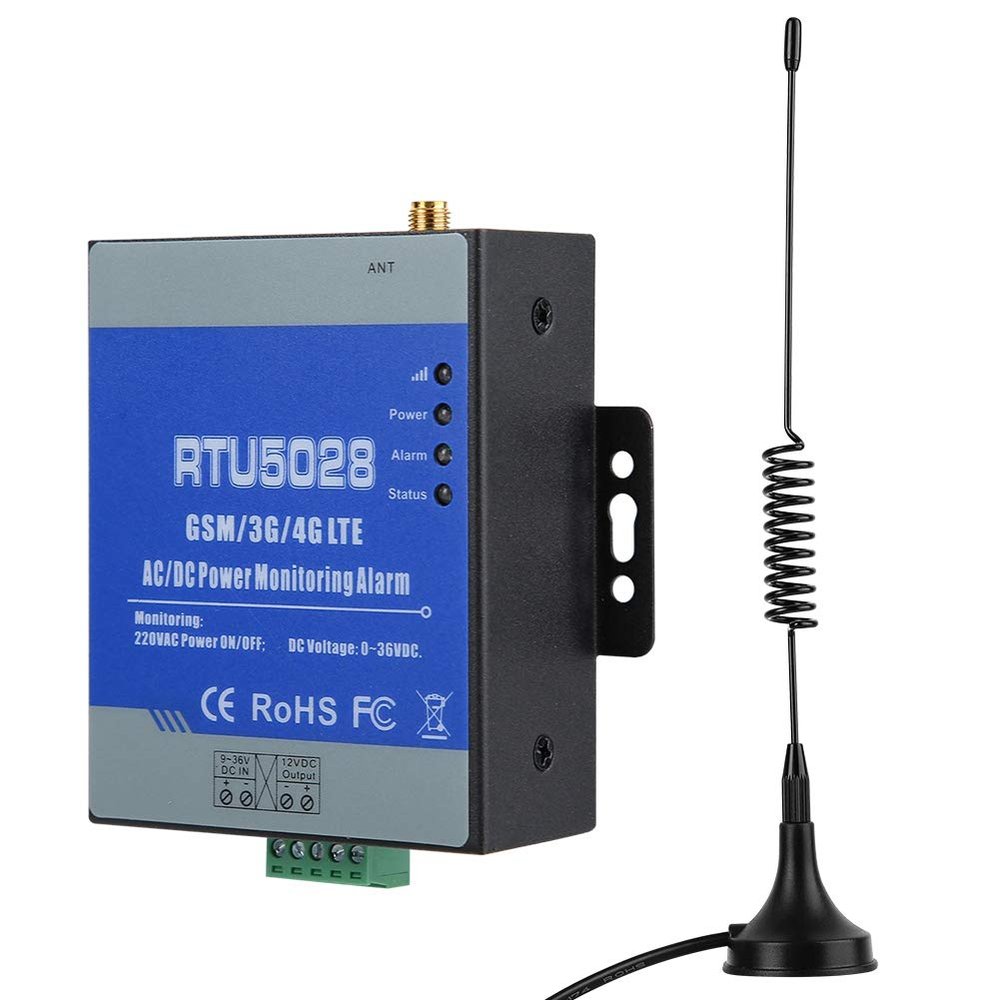

RTU5028 GSM Power Voltage Status Monitoring Alarm, Connection Remote Controling, Power Failure/Recover Alert 100-240V(US)

Description

• Intelligent monitoring: GSM power monitoring alarm intelligently monitors the field power status. When the power supply voltage exceeds the set high or low threshold, an SMS alert is automatically sent to the preset mobile number
• Remote monitoring: The power monitoring alarm mainly monitors the status of the field power supply wirelessly, allowing for remote operation without distance limitations
• Authorization number: The user can dial the device number through the authorization number. The device will automatically reject the reception and immediately send a message to the caller about the current status (temperature and voltage). The user can also query the current status by SMS command. A device can support up to 10 authorized numbers
• Timing report: The device can set the daily fixed point and periodically report the current status message to the first user. It also supports Modbus RTU and Modbus TCP protocol to connect to the cloud, enabling real-time monitoring of the current status through the network
• Battery storage: The device has a rechargeable backup battery that can be used continuously for 8 hours when fully charged. It is suitable for monitoring industrial remote monitoring and control and automatic control systems such as power outage, machine room, temperature and humidity, street light, solar energy, refrigerator, generator, pressure, water level, crane wind speed, meter and so on

Features:
1.GSM temperature monitoring alarm can reject calls from authorized numbers without making a call.Users can dial the device number by authorization number.
2.The device will automatically refuse to receive and immediately send short messages of the current status (temperature and voltage) to the caller.
3.Multiple applications (temperature, power state, solar panel, DC voltage).
4.Up to 10 authorized phone numbers, 5 can be used to answer calls or text messages, and 5 can be used for calls and text messages to generate alarms.
5.The built-in MCU has a measurement range of 0-36 VDC, eliminating the need for additional sensors and saving costs.Support remote reading of historical data via SMS.
6.Supports TCP and RTU over TCP protocol for cloud monitoring.
7.Use caller ID and password to identify and ignore unknown calls.
8.Can be programmed via SMS protected SMS command or APP.
9.Based on GSM network, it is suitable for many applications.
10.Automatically restart the cycle by remote reset and restart via SMS.

Specifications:
Working Voltage: standard power supply 12VDC, support 9~36VDC
Power Consumption: Standby: 12V/20mA; Maximum Power Consumption: 12V/150mA
GSM Frequency: 850/900/1800/1900MHz
SIM Card Interface: support 3V SIM Card
External Antenna: SMA Antenna Interface, 50 ohms
Support Protocol: RTU Over TCP protocol, TCP protocol
Built-in Battery: 3.7V/900mAh(Included)
Operating Humidity: Relative Humidity 95% (no condensation)
Size: Approx. 70mm * 88mm * 30mm/2.8 * 3.5 * 1.2 in

Package List:
1 * GSM Alert
1 * Antenna
1 * Power Adapter
1 * Instruction Manual
