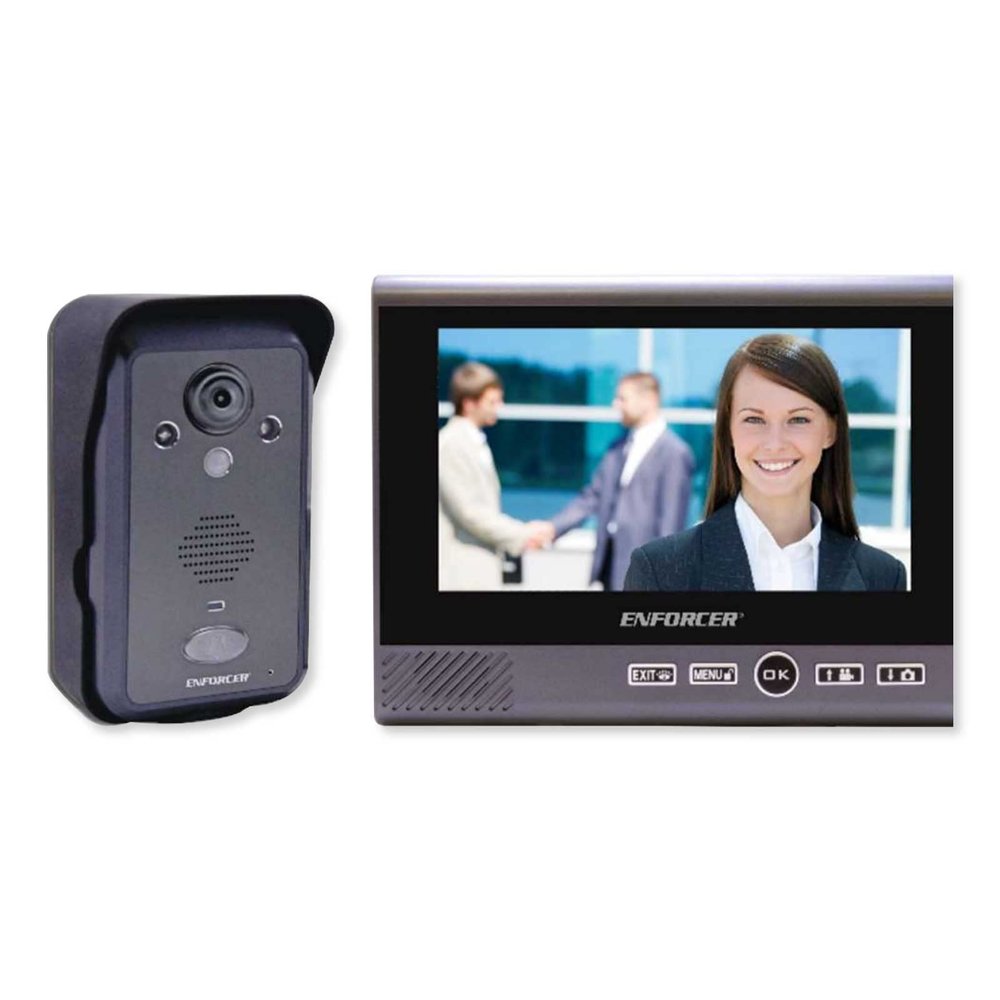

Seco-Larm DP-266-1C7Q Enforcer Wireless Video Door Phone Kit

Description

• Video door phone and indoor monitor lets you see and talk with visitors, up to 492 ft (150 m) wireless range between devices
• Connect up to 2 additional monitors and 1 additional camera to a system, with intercom calling between paired monitors
• Egress input for add-on access control capabilities
• Door phone camera has a 170 field of view with adjustable pan and tilt angle
• Camera's built-in PIR sensor activates camera to take photos or record video of visitors and IR LED allows for nighttime viewing

See your guests when they arrive at your front door with the Seco-Larm Enforcer Wireless Video Door Phone Kit. This video door answering intercom kit consists of an outdoor video phone station and an indoor monitor for 2-way audio communication and the ability to see who you're talking to at your front door. When someone moves in front of the door phone's camera or presses its button, the door phone calls the indoor monitor for you to answer and talk with your guest. The indoor monitor can be carried around your property while talking with a visitor at your front door. Additionally, the kit includes the option to add access control features when connected to a compatible egress or Request to Access device, allowing you to unlock your door to allow your guests entry into your home. Video door phone and indoor monitor lets you see and communicate with visitors at your door Indoor monitor can be removed from its wall mount and carried while in use, up to 492 feet (150 meters) wireless range from the door phone Connect up to 2 additional monitors and 1 additional camera to a single system, with intercom calling between paired monitors Egress input allows a Request to Exit Plate or other egress device to be connected and controlled for access control capabilities Door phone camera has a 170 field of view with adjustable pan and tilt angle to accommodate a variety of installations Camera's built-in PIR sensor activates camera to take photos or record video of approaching visitors and IR LED allows for nighttime viewing Tamper switch triggers alarm if camera is removed from base Backup batteries are included for both the camera and indoor monitor
The video door phone includes built-in IR LEDs for nighttime operation and IR sensors for motion detection and motion activation. The door phone camera has a 170 field of view with adjustable pan and tilt angle to accommodate a variety of installations. When the indoor monitor is called, users can immediately see who is requesting entry, speak with the caller, take a photo, and decide whether to grant entry (if an access control device is connected).
Two additional monitors (3 total) and one more video door phone can be connected to your Wireless Video Door Phone Kit. When two or more indoor monitors are a part of the same system, you can make audio calls between monitors to expand communication in your home. The Seco-Larm Enforcer Wireless Video Door Phone Kit includes charging mounts and rechargeable batteries for both the indoor monitor and video door phone, and the indoor monitors include a kickstand for tabletop placement.

Contents
Monitor (DP-266-M7Q) Camera (DP-266-CAQ) Monitor battery Camera battery Camera screw cover Camera screw DC Jack with pigtail Camera mounting hood bracket Monitor wall-mount bracket AC Power adapter with DC plug (for monitor) AC Power adapter with DC plug (for camera) (3) Camera mounting screws (3) Camera mounting screw anchors (4) Monitor wall-mount bracket screws (4) Monitor wall-mount screw anchors Manual
NOTE: Actual range between the monitor and camera may vary depending on the installation and operating environment.

Technical Details
Manufacturer Part #: DP-266-M3Q UPC: 676544022275 Type: Color camera Chip: CMOS Resolution: 640 TV Lines Lens: 2mm Field of View: 170 Camera Angle Adjustment: Up to 20 any direction IR LED Range: 5' (1.5m) IR LED Frequency: 940nm PIR Detection Range: 9' (3m) PIR Detection Angle: 170 Display: 3-3/8 inches (86mm) TFT Relock Delay: 3/6/8 Seconds Relay Output: 3A@24VAC/24VDC Operating Voltage: 9~16 VAC/5~16 VDC Current Draw: Active: 300mA@12VDC Standby: 15mA@12VDC Battery Life: Active: ~7 Hours Standby: ~60 Days Operating Frequency: 2402~2480 MHz RF Power: 120mW Wireless Range: 492 feet (150 meters) Dimensions (with Bracket): 3-1/8" x 5-11/16"x 1-15/16" inches (80 x 144 x 50 mm) Weight: 4.3-oz (122g) Operating Temperature: 14 to 122 F (-10 to 50 C) Credentials: FCC, CE, RoHS Warranty: 1-Year
Monitor Display: 7" (178mm) TFT Operating Voltage: Adapter: 12VDC Battery: 3.7VDC Current Draw: Active: 600mA@3.7VDC Standby: 5mA@3.7VDC Battery Life: Active: ~2.5 Hours Standby: ~7 days Antenna Gain: 0dBi Modulation Type: GFSK Operating Frequency: 2402~2480MHz RF Power: 120mW Wireless Range: 492 ft (150 m) line of sight Operating Temperature: 14 to 122 F (-10 to 50 C) Dimensions: 8" x 6" x 1-1/8 inches (203 x 153 x 27 mm) Weight: 1.2-lbs (544g)
