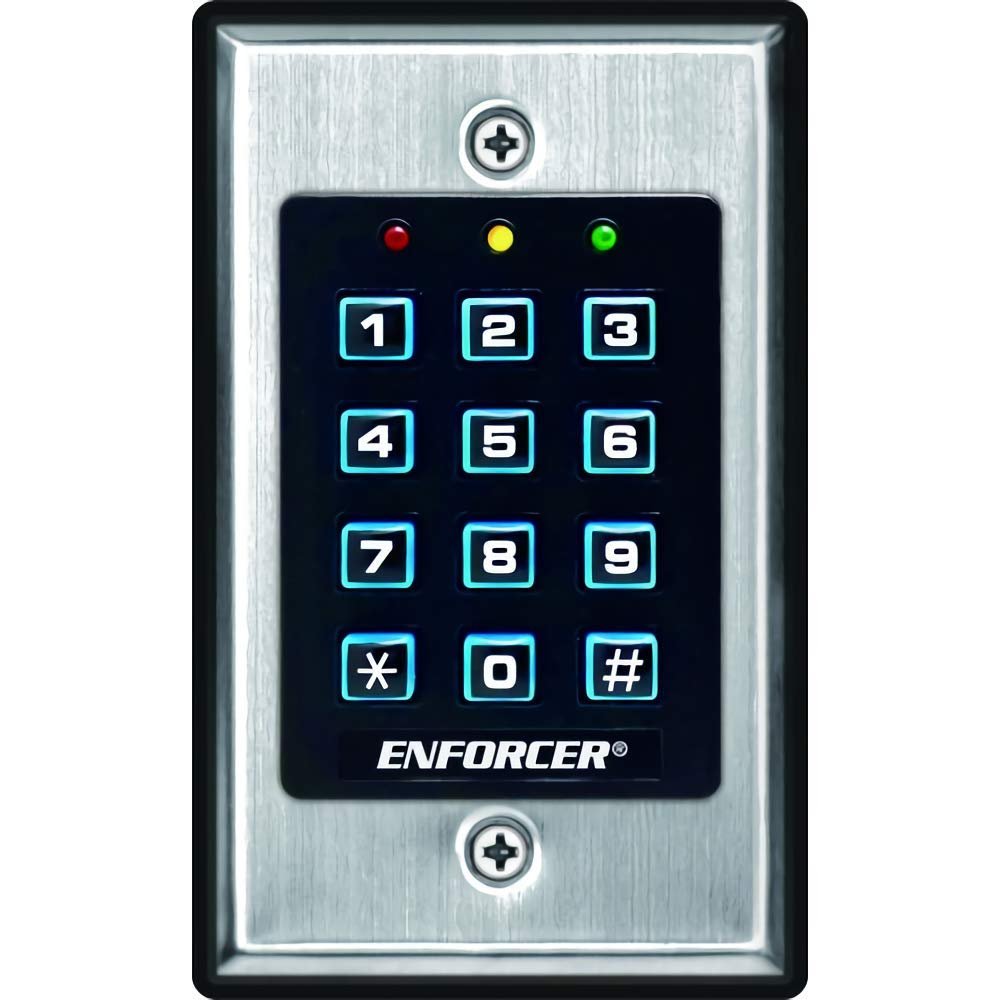

Seco-Larm Enforcer Access Control Keypad (SK-1011-SDQ)

Description

• 12-button, always-on backlit keypad with stainless-steel face
• Supports 1,000 permanent codes, 50 guest codes (4-8 digits)
• Auto-disable access at specific times with built-in clock
• Egress input allows exit without code entry
• Auto-adjusting operation - 12-24 VDC/VAC
• 12-button, always-on backlit keypad with stainless-steel face
• Supports 1,000 permanent codes, 50 guest codes (4-8 digits)
• Auto-disable access at specific times with built-in clock
• Egress input allows exit without code entry
• Auto-adjusting operation - 12-24 VDC/VAC

Control access to an indoor area for up to 1,000 permanent users and 50 temporary guests with the Seco-Larm Enforcer Access Control Keypad (Indoor). The 12-button, always-on backlit keypad is set in a durable stainless-steel single-gang plate. It features a real-time clock to auto-disable access at specific times, plus programmable wrong-code lockout to help prevent intrusion. 12-button indoor keypad with stainless-steel face Supports 1,000 permanent codes, 50 guest codes (4-8 digits) Auto-disable access at specific times with built-in clock Egress input allows exit without code entry Auto-adjusting operation 12~24 VDC/VAC
The keypad has a single Form C relay output (1A at 30VDC max.) that can be programmed to activate for up to 99,999 seconds (nearly 28 hours). All programming is done locally at the keypad. Both permanent user codes (up to 1,000) and guest codes can be 4-8 digits long. Guest codes can be programmed for one-time or limited-time use, customizable from 1 to 99 hours. The keypad's programmable delayed egress input lets users exit without entering a code.

Installation & Power Details

The keypad supports 12-24V AC/DC universal power, eliminating the need for special programming or jumpers. It wires into a power supply (sold separately) and mounts to the wall with the included screws. In case of a power outage, all your data is stored and reliably retained in the keypad's non-volatile EEPROM memory.

Contents
Keypad Back Box (2) Installation Screws (2) Mounting Screws Diode Manual
NOTE: Install indoors only; not rated for outdoor use.

Technical Details
MPN: SK-1011-SDQ UPC: 676544015932 Operating Voltage: 12~24 VDC/VAC Current Draw (at 12VDC): Standby: 15mA Keypress: 30mA Output 1 Active: 55mA Total Max. Current Draw: 90mA Output: #1 Form C: 1A at 30VDC Tamper: 50mA at 24VDC Tamper Output: N.C. Dry Contact Egress Input: N.O. Ground Operating Temperature: -4 to 158F (-20 to 70C) Operating Humidity: 5 to 95 percent non-condensing Dimensions (including back box): 4-5/8 x 2-7/8 x 1-1/2 inches (117 x 73 x 38 mm) Weight: 6 ounces (170g) Approvals: RoHS, CE Warranty: 1 Year
