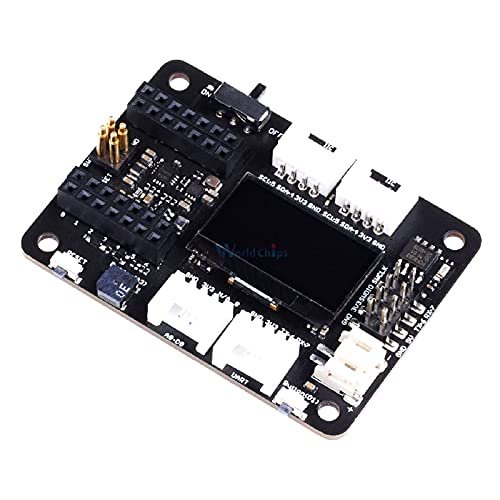

Seeeduino XIAO Microcontroller Expansion Board OLED Screen Display USB UART I2C IIC SPI Interface Grove Shield for Arduino

Description

• Seeeduino XIAO Microcontroller Expansion Board OLED Screen Display USB UART I2C IIC SPI Interface Grove Shield For Arduino

Seeeduino XIAO Microcontroller Expansion Board OLED Screen Display USB UART I2C IIC SPI Interface Grove Shield For Arduino
Notes:
Seeeduino XIAO and battery is not included in this productSpecificationItemDetailPower Supply5v / 3.7V Lithium BatteryRTC chipPCF8563T/5RTC batteryCR1220Expandable memoryMini SD CardScreen0.96 OLED displayOther External EquipmentPassive buzzer, user button, 5Vservo connectorcharging currentMax: 460mAGrove InterfaceGrove I2C *2, Grove UART *1, A0/D0 Grove *1DescriptionA powerful functional expansion board for Seeeduino XIAO of only half Raspberry Pi 4 size. It enables build prototype and project in easy and quick way. With its rich peripherals including OLED, RTC, expandable memory, passive buzzer, RESET/User button, 5V servo connector, multiple data interfaces you could explore infinite possibilities of Seeeduino XIAO. Circuit python is also well supported by this board. FeaturesQuick Prototyping: Easy debug and Reset with RESET button and SWD pin led out to the male header. 0.96 OLED, enables visual data to display without PC serial monitor.Rich peripherals: OLED display, RTC, expandable memory space, passive buzzer, user button, on board battery management chip One board on hand to explore infinite possibilities of Seeeduino XIAO. No Soldering Needed: All pin led out. Convenient plug and play Grove connectors support multiple data protocols, including IIC, Uart, Analog/Digital.Circuit Python Supported: Well supports circuit python. Mini SD card slot enables memory space expand, making it possible to allocate more libraries needed in prototyping and project building.Mini Size: Compact and elegant with only half Raspberry Pi 4 size, perfect for tiny and wearable projects.Rich peripherals on board including:OLED display: Visual data display without connecting to PC, which enables debug in a more efficient way, and builds application such as a sensor hub, data monitor system, .etcRESET button: No more jumper
