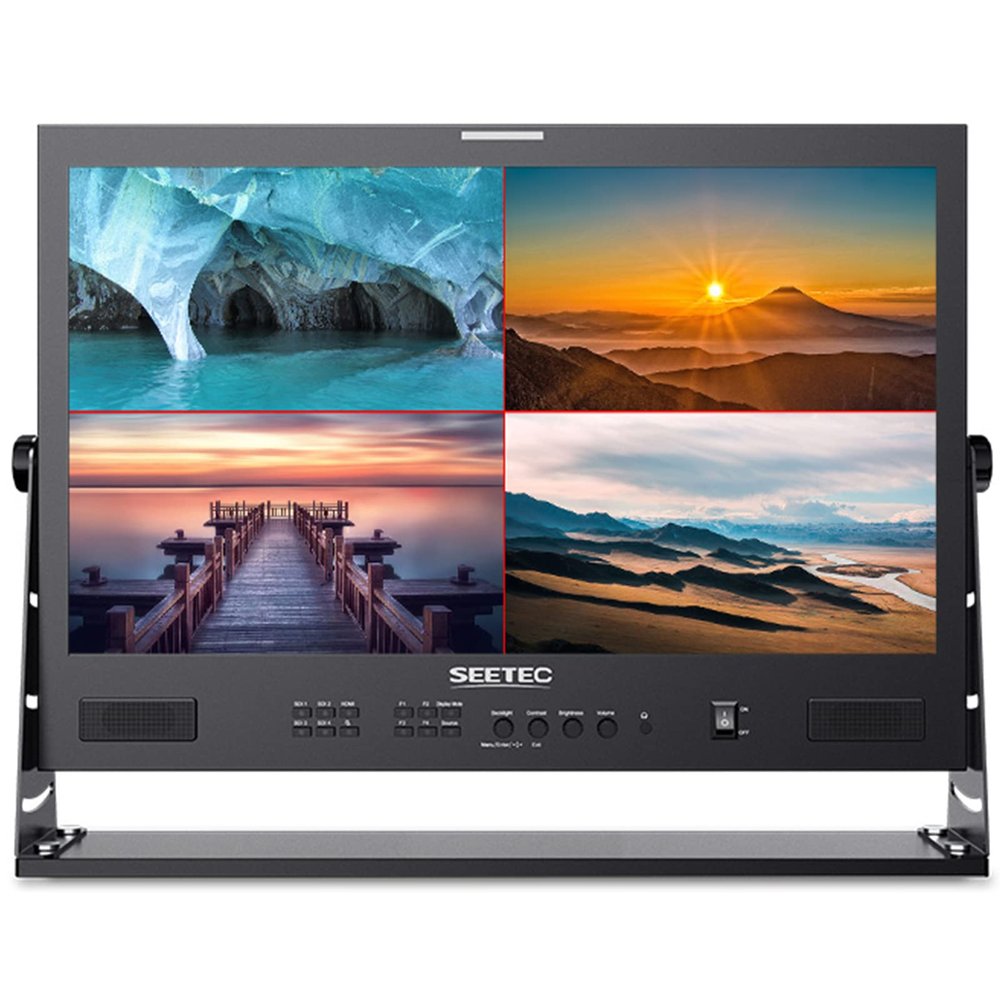

SEETEC ATEM215S 21.5 inch Multi-Camera Broadcast Monitor with 4x3G-SDI Input Output 1 HDMI in Quad Split Display for Studio Television Production Full HD 1920x1080 (ATEM215S)

Description

• 4x3G-SDI Input and OutputATEM215S monitors are the perfect choices to add SDI monitoring anywhere you need it. It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.
• 3D LUT & HDR MonitoringSupports up to load 36 custom LUTs. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36). Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality.
• Accurate waveform monitoringBuilt-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode can be right/left adjustment.
• Gynamic UMD & Tally LightsATEM215S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port. GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
• Quad ViewDisplay Mode(full screen, PIP, quad). Multiple Power OptionsThe monitor provides 12V DC power interface, XLR connector and V-mount battery plate for options. VESA standard mounting points support for bracket or hang wall installation.

Model: ATEM215S
Screen Size: 21.5" IPS
Color Depth: 16.7M
Resolution: 19201080 pixels
Pixel pitch: 0.08265(H) x 0.24975(V) mm
Aspect Ratio: 16:9
Brightness: 250cd/m
Contrast Ratio: 1000:1
Backlight : LED
Viewing Angle: 89/89(L/R) 89/89(U/D)

Input
4 X 3G-SDI (support 2K)
1 X HDMI (support 1080P)
1 X RS485
1 X GPI
1 X USB(upgrade and LUT import)

Output
4 X 3G-SDI (support 2K)
1 X RS485

Audio
Audio: Stereo Headphone

SDI Support Format
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
2048x1080i (60/59.94/50)
2048x1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Support Format
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)

General
Input Voltage: DC 12V
Power Consumption: 21W
Working Temperature: 0C~50C
Storage Temperature: -20C~60C
Unit Size: 511.6L355.6H23.3D (mm) (W/O bracket)
Unit Weight: 4.27kg

Advanced Features
* Built-in Multi camera Delog LUTs
* User 3DLUTs upload via USB (up to 36)
* Support GPI control
* Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
* Support TALLY
* Support 16-ch embedded audio meters display
* Histogram
* HDR
* Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
* False Colors
* Zebra (70IRE, 80IRE, 90IRE)
* Timecode Display
* Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
* Under Scan, Over Scan
* Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
* Pixel to Pixel
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
* Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* All Waves
* Parade (RGB Parade, Y, YUV Parade)
* Image Freeze
