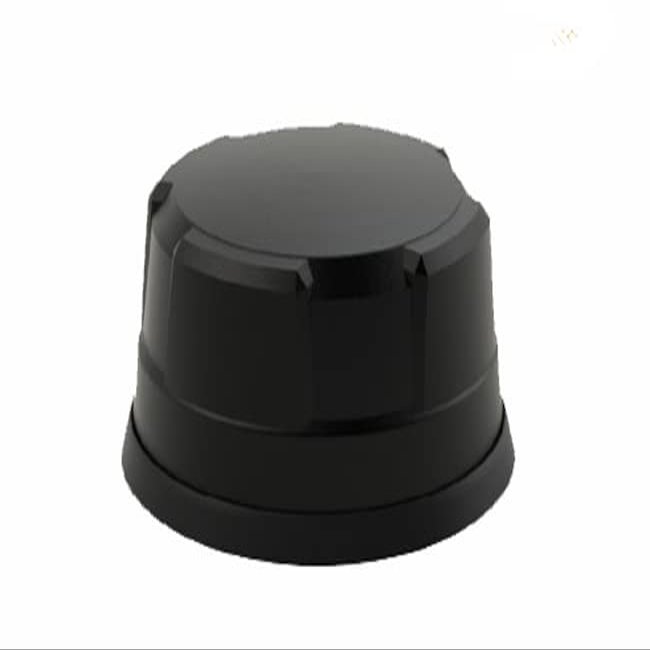

Sierra Wireless 6001399 9in1 Dome Antenna [cellular+wifi+gnss] Black

Description

• 4 x 5G/LTE 617-6000MHz (MiMo) + GNSS + 4 x Wi-Fi 2.4/5GHz
• 4G/5G Elements: 617-960MHz 4dBi, 1710-3800MHz 6dBi, 4900-6000MHz 6dBi / Wi-Fi Elements 2.4 GHz 5dBi & 4.9-6.0GHz 7dBi / GPS/GNSS 1562-1612MHz LNA 26dB
• Cellular Cables: Cable Type C32 Cable Length 5m (16) Termination FAKRA D (Purple)
• Wi-Fi Cables: Cable Type C29 Cable Length 5m (16) Termination FAKRA C (Blue)
• GPS/GNSS Cable: Cable Type C32 Cable Length 5m (16) Termination FAKRA I (Beige)
• Mounting: Bolt / Mounting Hole: 19mm (3/4)
• Supported Networks CBRS, FirstNet, 5G NR

The 9-in-1 Dome is a custom 5G single antenna solution for the AirLink XR90, tested and certified for mobile applications. The antenna has a low-profile design that contains nine isolated high-performance antenna elements in a single housing for optimal coverage; four ultra-wideband elements spanning 6176000MHz; a high performance GNSS antenna with an integrated 26dB gain LNA; and 4x4 MIMO dual band 2.4/5GHz Wi-Fi elements.
