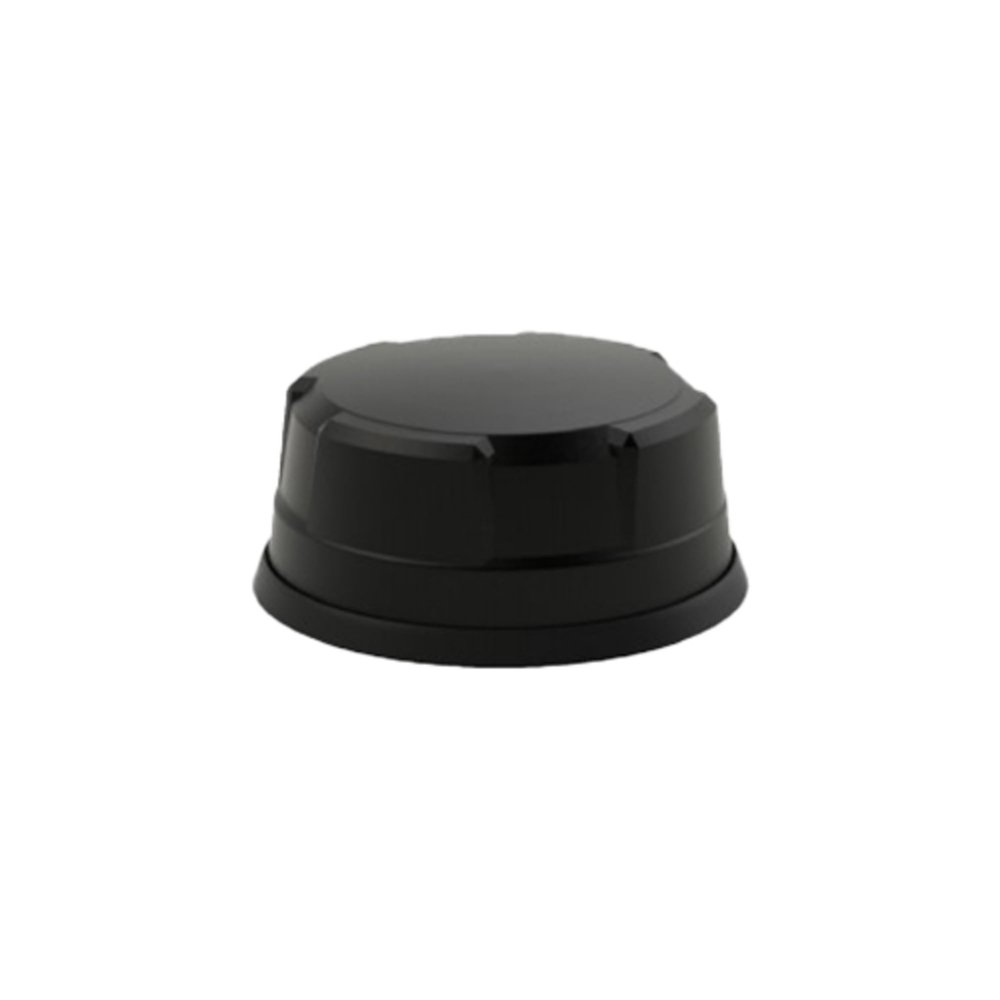

Sierra WSierra Wireless AirLink 8-in-1 Dome Antenna - 617 MHz to 6000 MHz - SMA Connectors - Black - Bolt Mount for Airlink MG90 5G Router

Description

• 4 x 5G/LTE 617-6000MHz (MiMo) + GNSS + 3 x Wi-Fi 2.4/5GHz
• 4G/5G Elements: 617-960MHz 4dBi, 1710-3800MHz 6dBi, 4900-6000MHz 6dBi / Wi-Fi Elements 2.4 GHz 5dBi & 4.9-6.0GHz 7dBi / GPS/GNSS 1562-1612MHz LNA 26dB
• Cellular Cables: Cable Type C32 Cable Length 5m (16) Termination SMA (m)
• Wi-Fi Cables: Cable Type C29 Cable Length 5m (16) Termination RP-SMA
• GPS/GNSS Cable: Cable Type C32 Cable Length 5m (16) Termination SMA (m)
• Mounting: Bolt / Mounting Hole: 19mm (3/4)
• Supported Networks CBRS, FirstNet, 5G NR

The 8-in-1 Dome is a custom single antenna solution for the MG90 5G 4x4, tested and certified for mobile applications. The antenna has a low-profile design that contains eight isolated high-performance antenna elements in a single housing for optimal coverage; four ultra-wideband elements spanning 6176000MHz; a high performance GNSS antenna with an integrated 26dB gain LNA; and 3x3 MIMO dual band 2.4/5GHz Wi-Fi elements..
