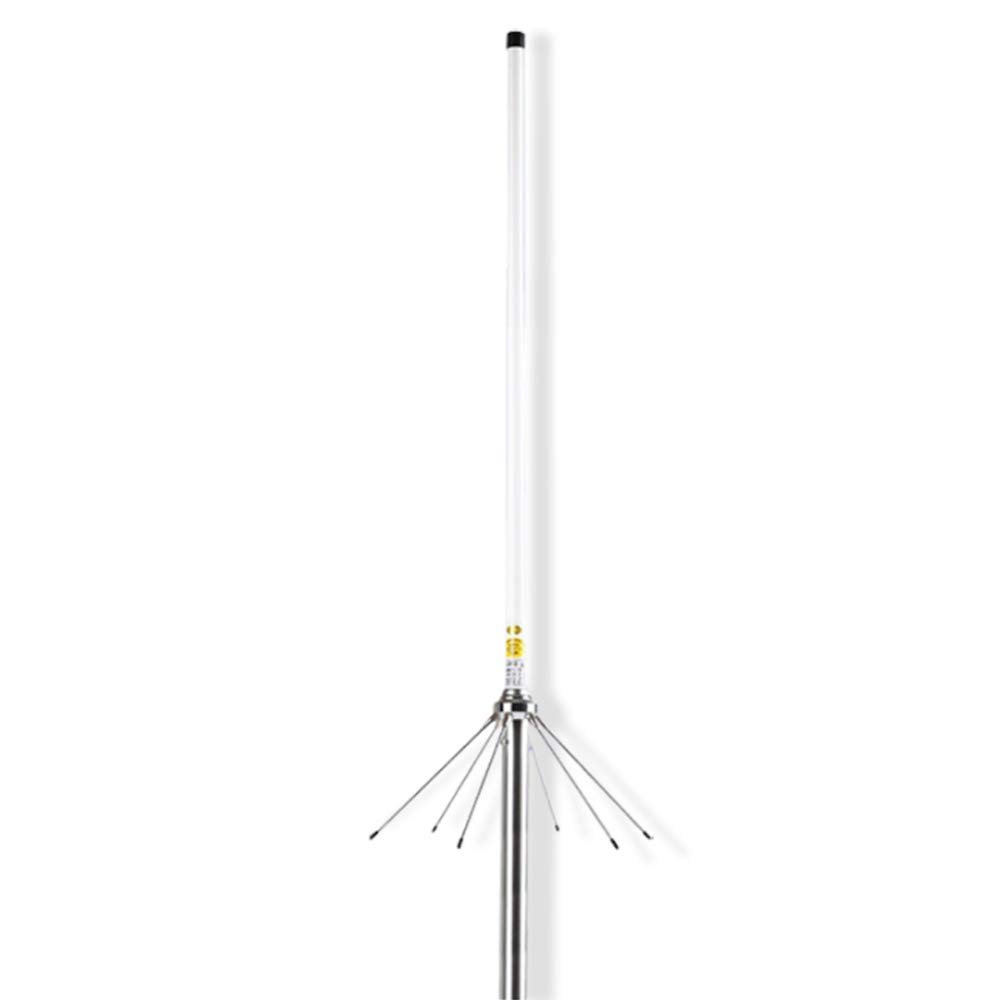

VHF UHF 2m 70cm Ham Radio Antenna for Base Station Ham Radio, 136-174MHz 400-470MHz with PL259/ UHF-Female/ SO239 Connector

Description

• Dual Band 2m 70cm GMRS Antenna :144MHz /433MHz. 136-174mhz 400-470mhz.
• High Gain :3.5dBi at 144MHz ,5.5dBi at 433MHz .VSWR Less Than 1.5. Antenna Length :1.1 Meters .
• Connector of Base Station Antennas: UHF Female (SO-239 /PL259 Male); Polarization:Vertical; Maximum Power Input-Watts:100 W; Horizontal Beam Width: 360; Vertical Beam Width: 33 / 17; Lighting Protection: Direct Ground .
• Applications of Talkie Walkie Antenna: Including Marine, RV, Vehicles and Trucks, Attic,Camper, Yacht ,Buildings, Roof, Surveillance Trailers, Remote Telemetry Units, Homes and Offices.
• Ham radio Base Station Antenna are Designed for Outdoor Use-Waterproof; Resistance to Corrosion, White Fiberglass with Stainless Steel Radials.
• Package Listing: 1 x Antenna, 6 x Stainless Steel Radials, 1 Set Bracket.

FrequencyMHz:136-174mhz 400-470mhz .
GaindBi : 3.5 / 5.5 dBi .
VSWR: 1.5.
Input Impedance: 50 .
Polarization : Vertical .
Maximum input powerW : 100 .
Lightning protection : DC Ground .
Input connector type SO239 : (M-Female) .
Antenna Dimensions (mm) : 20*1150 .
Antenna weightkg: 1 .
Operating temperaturec : -2060 .
Rated Wind Velocitym/s: 60 .
Radome color : white .
Mounting way : Pole-holding .
Mounting hardwaremm : 40-60 .
