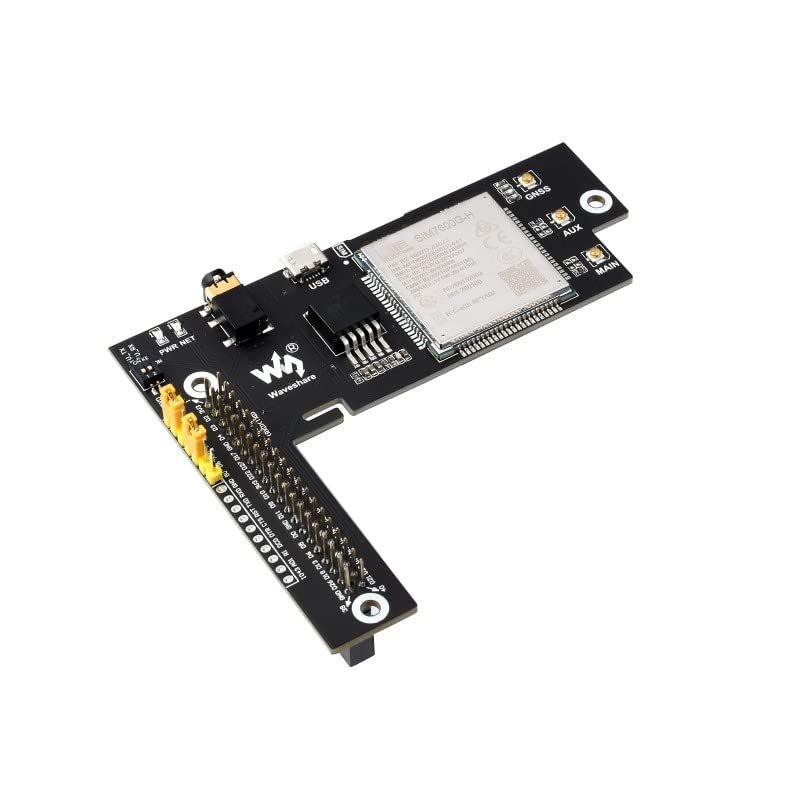

SIM7600G-H 4G / 3G / 2G / GNSS Module Compatible with Jetson Nano LTE CAT4 Global Applicable

Description

• This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.
• Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on.
• 40PIN GPIO extension header for connecting Jetson Nano.Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, LBS base station positioning.Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper.Baudrate: 300bps ~ 4Mbps (default: 115200bps)

Overview
This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.
Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on.

Features
40PIN GPIO extension header for connecting Jetson Nano
Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Breakout UART control pins, to connect with host boards like Arduino/STM32
SIM card slot, supports 1.8V/3V SIM card
Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
2x LED indicators, easy to monitor the working status
Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobauding baudrate: 9600bps ~ 115200bps
Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Comes with development resources and manual (examples for Jetson Nano/RPi/STM32)

PACKAGE CONTENT
Note: Jetson Nano is NOT included.
SIM7600G-H 4G for Jetson Nano x1
LTE Antenna x1
GPS External Antenna (B) x1
Jetson Nano USB Adapter x1
USB Cable ~1.2m x1
Screws pack (2pcs) x1
