SIM7600GH 4G DONGLE Module USB UART Communication Support 2G 3G 4G 50Mbps Uplink 150Mbps Downlink Computer Accessories for PC

Description

• Industrial Grade Design: SIM7600GH 4G DONGLE LTE USB adapter adopts industrial grade 4G communication solution, equipped with SIM7600GH module, which makes the communication stable and durable.
• Rotatable Antenna: The antenna adopts a flexible structure design and supports multi dimensional free rotation. Users can adjust according to usage habits and signal strength to improve signal sensitivity.
• Three Indicator Lights: SIM7600GH 4G DONGLE Module has three data indicator lights, you can easily see the working status, NET: internet indicator, SAT: status indicator, PWR: power indicator.
• 2 Interface Communication: 4G DONGLE module supports cloud platform communication, supports USB and UART two interface communication, supports TCP/UDP/FTP/FTPS/HTTP/HTTPS and other communication protocols.
• Application Scenario: SIM7600GH 4G DONGLE can be used for industrial computer networking, PC Internet access, shared/unmanned self service equipment, open source hardware networking, industrial Internet of Things.

Specification:

Item Type: SIM7600GH 4G DONGLE
Product Parameters
Material: ABS
Model: SIM7600G-H
LTE-TDD: B34/B38/B39/B40/B4l
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
3G Frequency Band: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G Frequency Band: GSM/GPRS/EDGE: 850/900/1800/1900MHz
GNSS: Support GPS, Beidou, Glonass, LBS base station positioning
Applicable Area: Universal
Data Transmission:
LTE Cat-4150Mbps(DL)/50Mbps(UL)
3G(HSPA+)42Mbps(DL)/5.76Mbps(UL)
2G(EDGE)236.8Kbps(DL)/236.8Kbps(UL)
2G(GPRS)85.6Kbps(DL)/85.6Kbps(UL)
Software Function:
Operating System:For Windows,for Linux
Letter of Agreement:
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Internet Access: NDIS/RNDIS/PPP
Short Message (SMS): Support MT, MO, CB, Text, PDU
Hardware Description:
Communication Interface: USB/UART
UART Communication Baud Rate: 300bps-4mbps (default is L15200bps)
Indicator:
NET: Internet Indicator
STA: Status Indicator
PWR: Power Indicator
Support SIM Card: Nano SIM Card (1.8V / 3V) (Card Not Included)
Antenna Interface: LTE
Supply Voltage: 5V
Logic Voltage: 3.3V

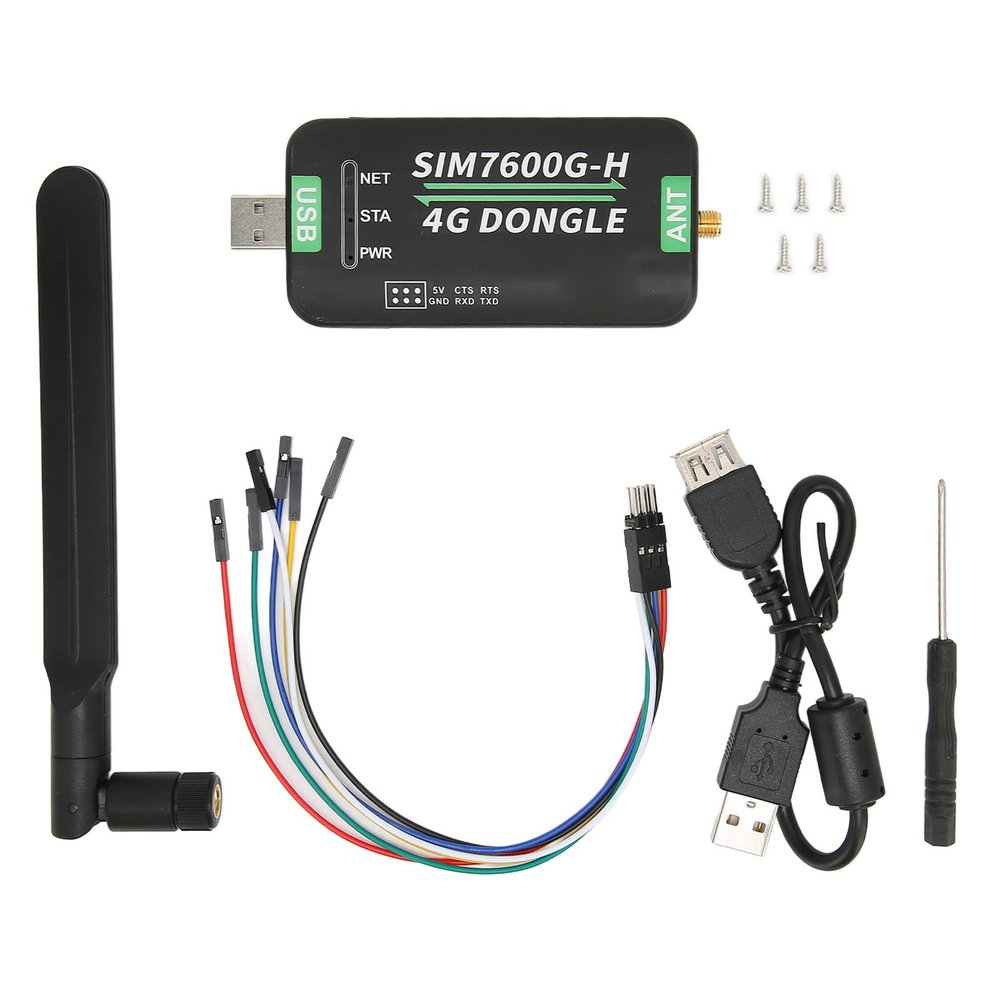

Package List:1 x SIM7600GH 4G DONGLE 1 x LTE Antenna1 x USB Extension Cable5 x Screws1 x Screwdriver1 x Connection Line
