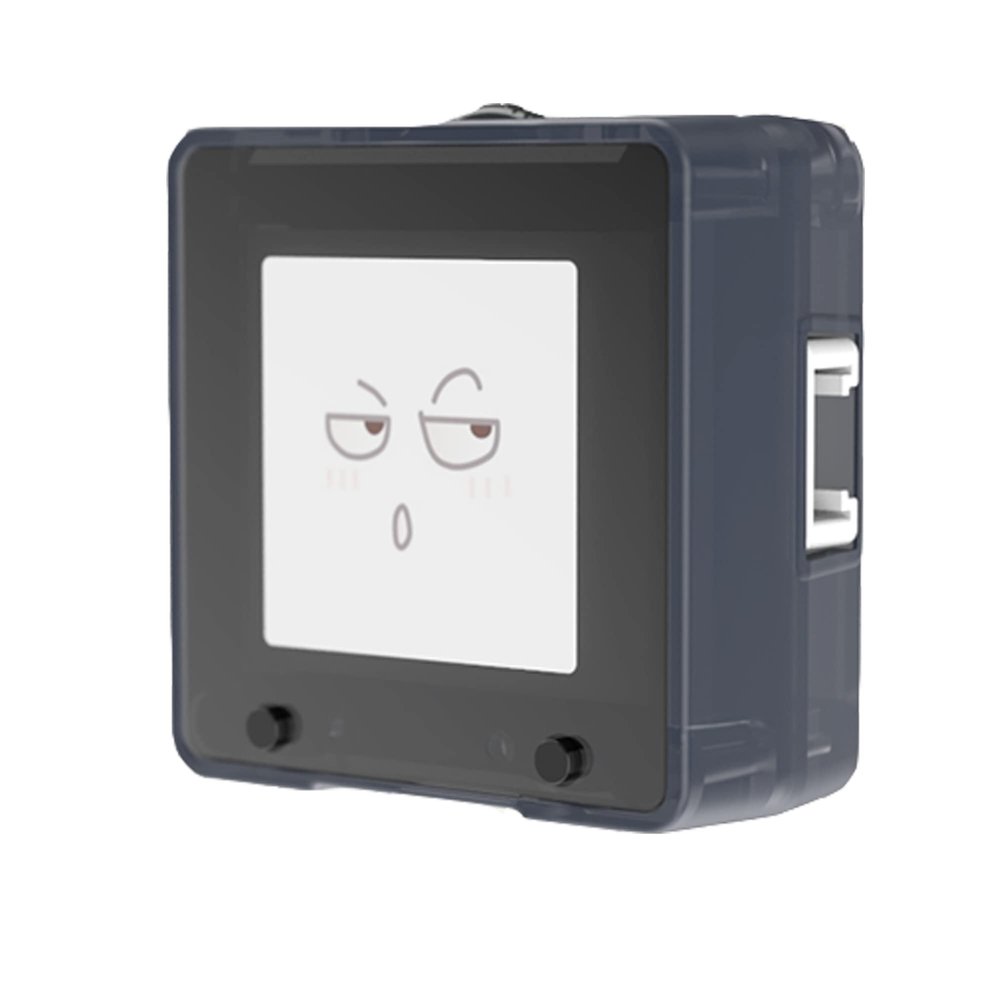

Sipeed Maix Cube K210 AI+lOT Mini Board Grove InterfaceInclude 1.3 Inch LCD,Dual Front and Rear Cameras

Description

• CPU: RISC-V Dual Core 64bit with FPU
• Frequency: 400MHz-500MHz/ SRAM: 8M Byte
• Image Recognition: OV7740,QVGA@60fps, VGA@30fps
• Deep Learning Framework: Support TFLite (recommended) OnNX, PaddlePaddle model conversion
• Software environment: MaixPy (microPython)
• Development environment: MaixPy IDEPlatformlO IDEArduino IDE
• A programming language: C,microPython

Introduction

Maix Cube is equipped with the MaixPy (MicroPython) developmentenvironment produced by Sipeed, and users can quickly use MPY scripting language to program board cards.

MaixCube Parameters

K210 parameters

1CPU: RISC-V Dual Core 64bit,with FPU
2Frequency: 400MHz-500MHz
3SRAM: 8M Byte
4Image Recognition: OV7740,QVGA@60fps, VGA@30fps
5MEMS Microphone: Offline speech recognition,Sound field imaging (6+1MIC)
6Network model: support MobileNetV1 / V2,TinyYOLOv2,AlASR...
7Deep Learning Framework: Support TFLite (recommended) OnNX, PaddlePaddle model conversion.
8Peripherals: FPIOAUARTGPIOSPIPC[2STIMER
9Video Processing:
-Neural Network Processor (KPU)
-Audio Processor (APU)
-Fast Fourier Transform Accelerator(FFT)

Board parameters
1On-board resources:
-The keys*3
- Camera*1
-RGB LED*2
-1.3inch TFT The screen
-Electret Microphone*1
-128Mbit Flash*1
-Acceleration sensor*1
-0.5w Speaker

2Onboard interface :
- USB Type-C interface
-TF card slot
-Grove standard interface
-SP-MOD interface(Support SP-MOD interface module)
3Sze:40*40*18.6mm
4Power Supply. USB-TypeC or Internal Lithium Battery (200mAh)

Software
1Software environment: MaixPy (microPython)
2Development environment: MaixPy IDEPlatformlO IDEArduino IDE...
3A programming language: C,microPython
