Sipeed Maix M1s Dock tinyML RISC-V Linux AI Development Board with RISC-V CPU BLAI 100GOPS NPU Built-in 768KB SRAM 64MB UHS PSRAM 16MB eMMC for IoT Edge Computing Support FreeRTOS Linux OS

Description

• [BL808 AIOT Module ] Sipeed M1s Dock module is an AIOT module based on BL808 RISC-V 480Mhz CPU + NPU BLAI-100 GOPS, it contains 3 cores inside, Built-in 768KB SRAM 64MB UHS PSRAM 16MB eMMC, audio encoder and decoder, video encoder and decoder and AI hardware accelerator (BLAI-100), suitable for a variety of high performance and low power applications.
• [Minimal Design] Sipeed M1s Dock is a development board designed based on Sipeed M1s moduleroutes interface like MIPI CSISPI LCD and FPC connector, to get rid of worries of connecting cable. Designed with the most minimal design, for customers to evaluate the module, or hobbyists to play directly, etc.
• [WIFI/BT/BLE Wireless Unit] Support 2.4G WIFI/BT/BLE/Zigbee wireless interconnected unit; Onboard USB to UART debugger, screen interface, MIPI camera interface; Onboard 1 analog microphone1 LED1 TF card slot Route USB-OTG to USB Type-C port; support IPEX-I and PCB antenna.
• [OS Support] Full support for FreeRTOS, Basic support for Linux; Development method: Native C SDK, MaixHAL C module, pikascript python script.
• [AI Reasoning Framework] Support the BLAI accelerated inference engine of the native SDK, and support the general TinyMaix inference engine; Support face detection, recognition, posture detection, gesture detection, etc.
• [Wiki] "https://dl.sipeed.com/shareURL/MAIX/M1s/M1s_Dock/1_Specification"; Any after-sales problems, please contact us by email: monica#smartfire.cn (#----->@).Also can click WayPonDEV store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".

-Specification-
MainChip:Three RISC-V CPUs
RV64GCV 480MHz
RV32GCP 320MHz
RV32EMC 160MHz)
AI NN general purpose hardware accelerator
BLAI-100, used for video/audio detection/identification100GOPS hashrate
768KB SRAM + 64MB UHS PSRAM
Encode and DecodeMJPEG and H264(Baseline/Main)1920x1080@30fps + 640x480@30fps
Camera interface DVP and MIPI-CSI
Display interfaceSPIDBIDPI(RGB)
Wireless SupportWi-Fi 802.11 b/g/nBluetooth 5.x Dual-mode(BT+BLE)Wi-Fi / BT co-existence
USBUSB 2.0 HS OTG
Onboard components:
USB to UART debugger (Used for uart communication and burn firmware)
screen interface (Optional 1.69-inch 240x280 capacitor touch screen)
MIPI camera interface (Optional 2M solution camera)
1 analog microphone1 LED1 TF card slot
OS Support: Full support for FreeRTOS; Basic support for Linux
Developments: C SDKMaixHAL Cpikascript python
Burn Firmware:Burn from uartVirtual disk drag-and-drop burn
AI Framework:
Support BLAI accelerated inference engine with native SDK
Suppory universal TinyMaix inference
AI model storeSupport Face detection and recognition, posture detection and gesture detection, etc.
-Package Content-

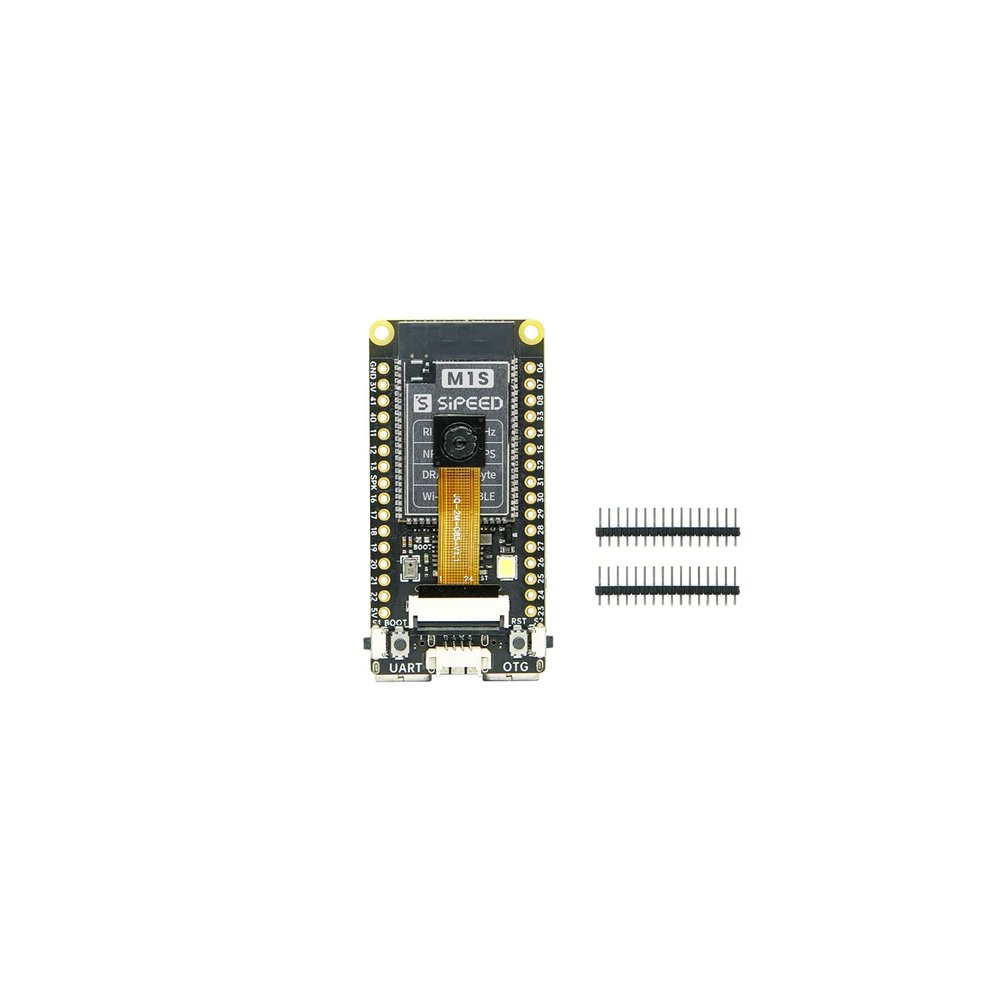

1x Sipeed Maix M1s Dock Development Board
1x MIPI Camera
2x Pin header
-Technical Support- Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122. Please leave the message in our forum by forum.youyeetoo.com/.
