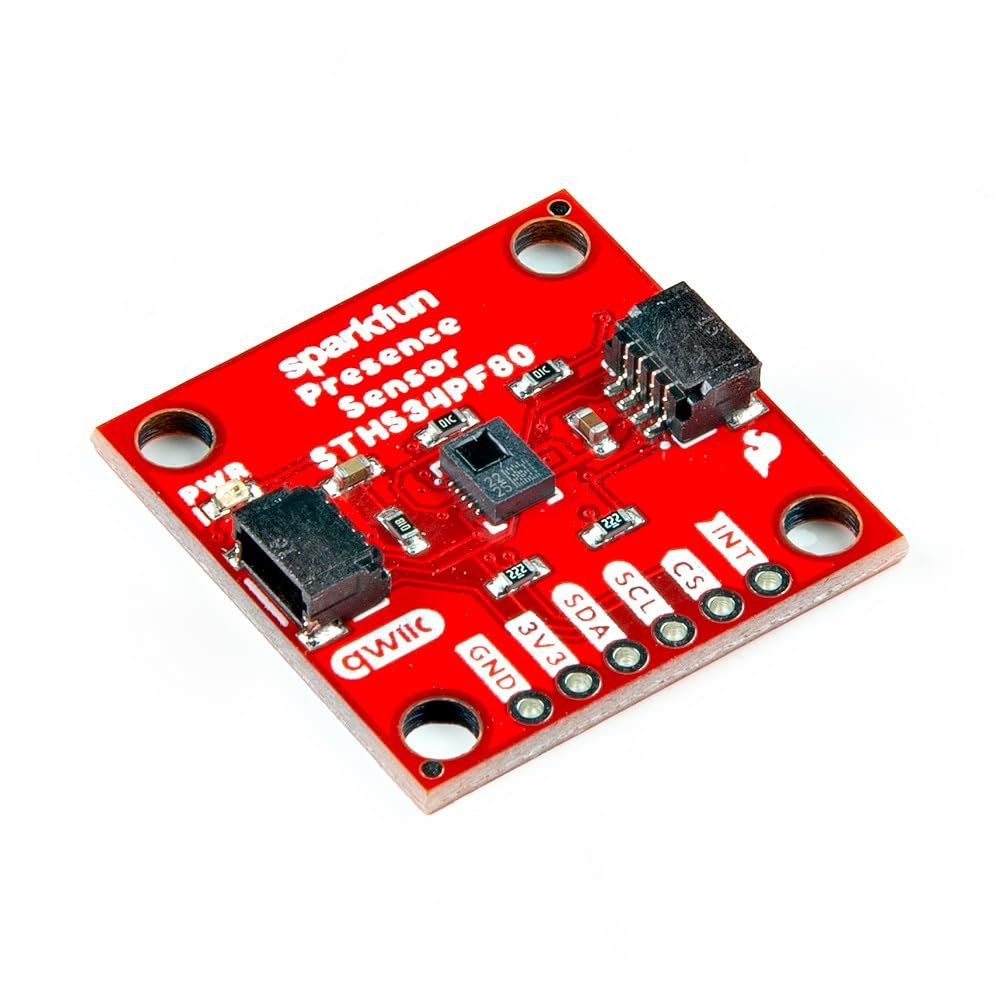

SparkFun Human Presence and Motion Sensor - STHS34PF80 (Qwiic) Breakout Board Dimensions: 1" x 1"

Description

• The SparkFun Qwiic Human Presence and Motion Sensor is built around the STHS34PF80 low-power, high-sensitivity IR sensor for presence and motion detection.
• The sensor is composed of a matrix of floating vacuum thermal transistors MOS split into two parts, one exposed to IR radiation and the other one shielded. The differential reading between the segments, allows the sensor to remove self-heating effects.
• The STHS34PF80 also incorporates algorithms to detect and discriminate between stationary and moving objects. These features enable the sensor to work as a human presence and motion sensor in different applications such as alarm systems, anti-intruder systems, smart lighting, and room occupancy.
• Features: Voltage Range: 1.7 to 3.6V, Current Draw: 10A, Interfaces: IC or SPI, Optical wavelength: 5 to 20m, Range: 4m (objects 70 x 25 cm in size) Built-in Detection Algorithms: Identify stationary objects, Distinguish between stationary and moving objects.
• The sensor can operate in multiple lighting conditions and is unaffected by visible light or other bands thanks to the 5 to 20m optical band-pass filter. The STHS34PF80 has an output data rates between 0.25 to 30 Hz and an available single-shot, which are accessed through its IC/SPI interface.

The STHS34PF80 sensor, from ST Microelectronics, is designed to measure the precise black-body radiation (as described by Planck's law) of an object; as well as monitor ambient temperature conditions within its 80 field of view. The sensor is composed of a matrix of floating vacuum thermal transistors MOS split into two parts, one exposed to IR radiation and the other one shielded. The differential reading between the segments, allows the sensor to remove self-heating effects. The STHS34PF80 also incorporates algorithms to detect and discriminate between stationary and moving objects. These features enable the sensor to work as a human presence and motion sensor in different applications such as alarm systems, anti-intruder systems, smart lighting, and room occupancy. The sensor can operate in multiple lighting conditions and is unaffected by visible light or other bands thanks to the 5 to 20m optical band-pass filter. The STHS34PF80 has an output data rates between 0.25 to 30 Hz and an available single-shot, which are accessed through its IC/SPI interface.
