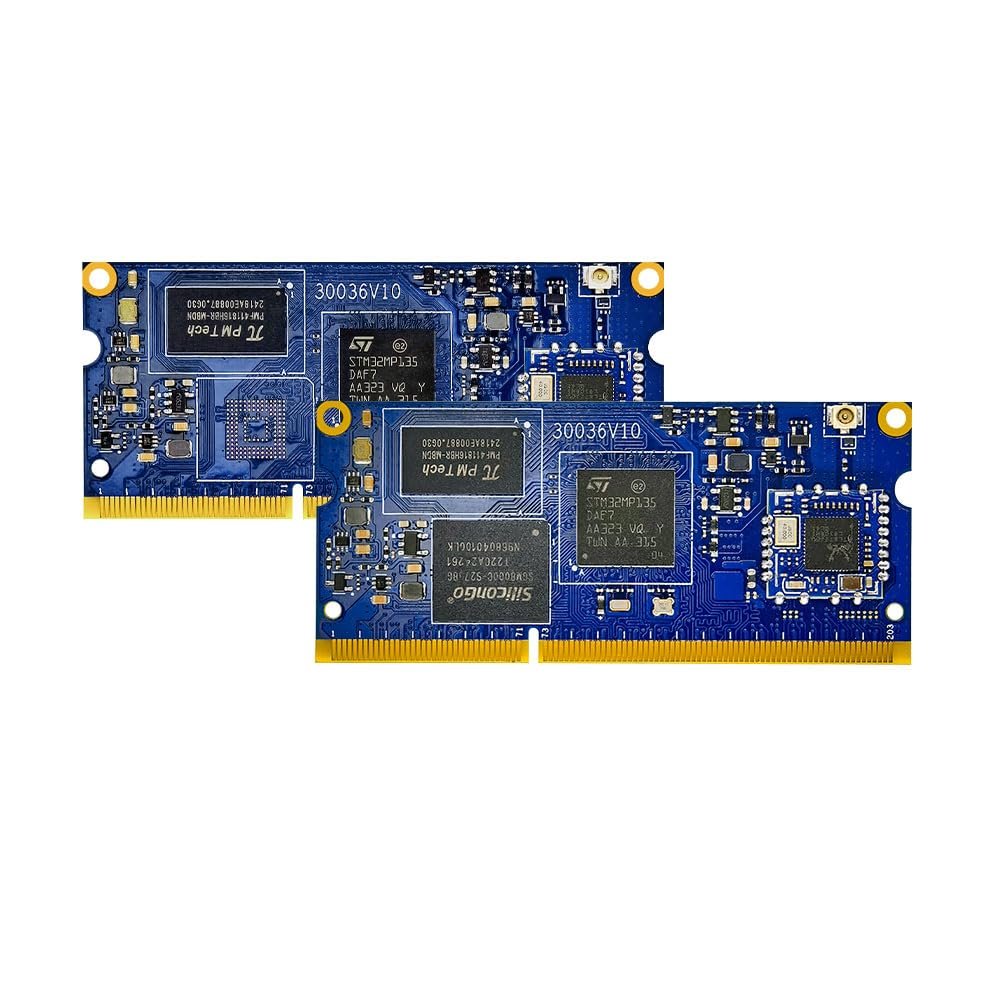

STM32MP135 Core Board 256/512M ECK10-135 ARM Cortex-A7 1GHz Linux Wi-Fi BLE4.2 Video Playback RJ45 USB (ECB10-PGD-I)
88,05 €
146,75 €
Save 40% (58,70 €)
-
Order within 7 hours and 43 minutes to get between May 11 - May 17 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- Processor: STM32MP13 series processor, main frequency 1GHz ; Memory: On-board DDR3L SDRAM, 256MB/512MB capacity optional; Storage: 8GB eMMC optional; Display: ECK10-135D series supports 1 parallel display interface, with a maximum resolution of WXGA (1366768@60fps) or Full HD (19201080@30fps ) ; Network: 1 or 2 RGMII interfaces ; USB: 1 USB2.0 OTG interface and 3 USB2.0 HOST interfaces;
- Support on-chip watchdog function; Support on-chip RTC function; Interface: 204 -pin DDR3 gold finger ; Power input: single-channel DC +5V 10% power input; Power output: 1-way 3.3V switching power output;
- SDMMC: 1- way MMC/SD/SDIO card interface; Multiple extended I/O interfaces: including UART, CAN, I2C, SPI, SAI, ADC, GPIO , PWM , etc.
- Dimensions: 67.6 x 30 x 4.5 mm ; Operating temperature: 0 -70 ( commercial grade); PCB technology: 8-layer board design, immersion gold, lead-free process , gold finger hard gold plating ; SBC board: ECB10-PGD-I;
- Typical Applications- Smart home; Smart toys; Smart cities; tablet computers ; IoT gateway ;Advertising all-in-one machine ;Industrial all-in-one machine ; Industrial control motherboard; Robots and drones.
