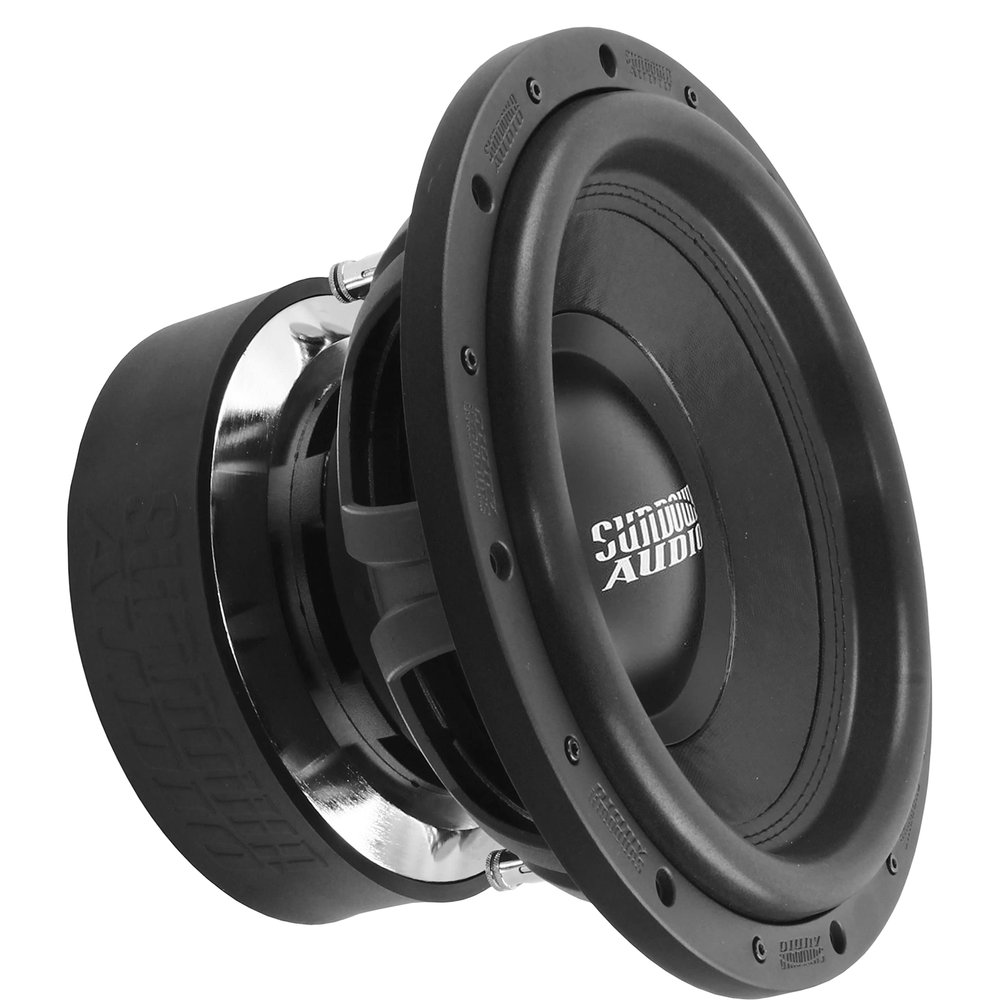

Sundown Audio U-12 V2 D4 12" 1750W Dual 4-Ohm U-Series Subwoofer

Description

• The U series features an all-new cast aluminum frame series to the Sundown line which allows for taller cones than the older frames used on the Z v.3 series. The taller cones provide enhanced coil stability and increased mechanical excursion capability. We also tooled matching cast-aluminum surround clamps for the U series to ensure durability in the most demanding situations. The surrounds and cone bodies have been fully custom tooled especially for the U series and are stronger / support more

U-12 V2 D4 | Sundown Audio 12" Dual 4-Ohm 1750W RMS U-Series Subwoofer
FEATURES:

Black Aluminum 3 voice coil former for superior heat dissipation
High Temperature Round-Wire CCAW voice coil with high-temp black adhesive
Double stitched surround
Heavy duty cast basket
Spring loaded terminals accept up to 8 gauge
Stitched-on double-XL tinsel leads
Rear vented pole piece
Rear drilled gap-venting
Innovative high-velocity cast aluminum vented frame spacer ring
Magnet ID shorting ring
Top-Plate Cooling Channels
Cast Aluminum surround bolt-on rings
Optimized for small ported or bandpass enclosures SPECIFICATIONS:

RE (Ohms) 6.1
FS (Hz) 40.0
VAS (L) 12.3
Qes 0.38
Qms 2.93
Qts 0.34
Le (mH) 3.67
BL (NA) 33.7
Mms (Grams) 284.5
Cms (uM/N) 0.06
Sens (dB @ 1w/1m) 85.0db
Sealed Enclosure 1.0 cu ft
Ported Enclosure 2.0 cu ft
Recommended Tuning 35Hz
Recommended Port Area 32 sq in
Displacement 0.21 cu ft
Depth 7.75
Outside Diameter 12.83
Cut-Out 11.01
