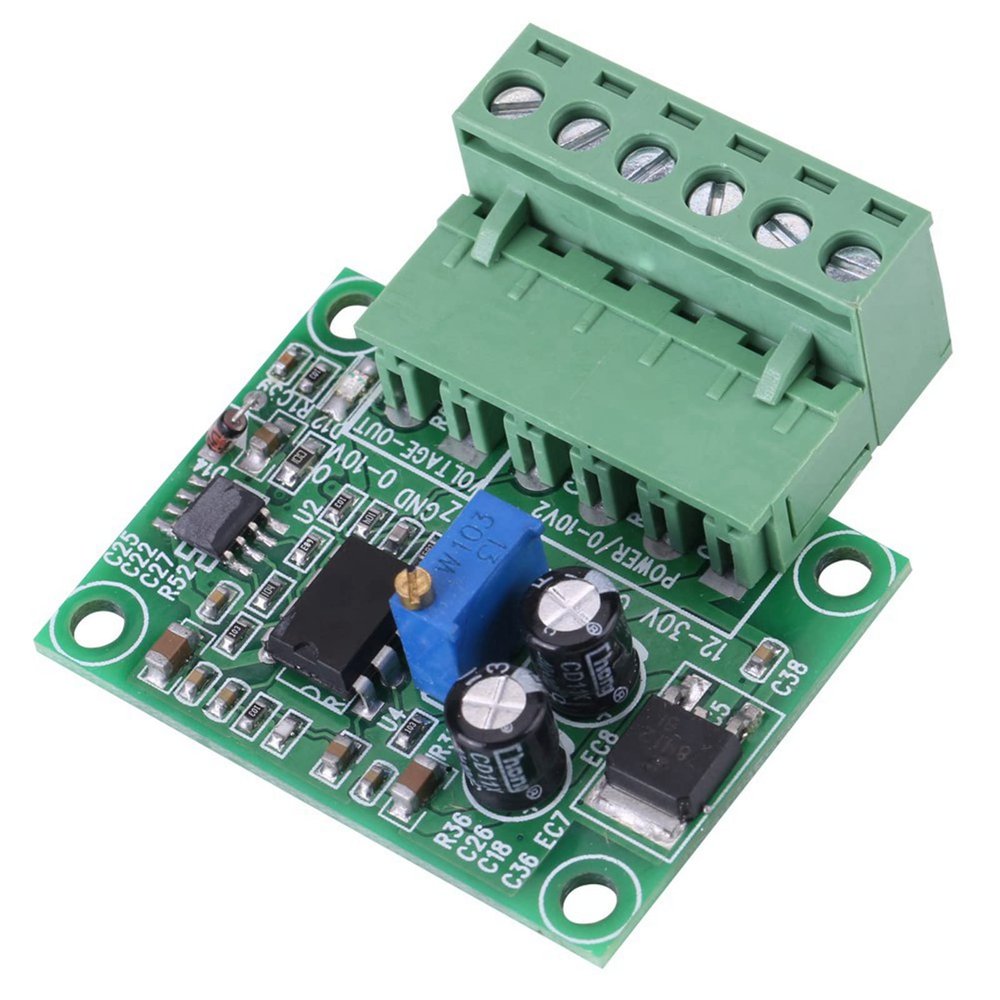

Superior Frequency to Voltage 0-10Khz to 0-10V FV Digital to Analog Converter Module for PLC and Frequency Converter Switching

Description

• High C atibility : This Frequency to Voltage Converter module caters to input pulse levels of 5V, 12V, and 24V, making it c atible with different systems. It does not require any serial resistor for direct entry, thereby ensuring a hassle- user experience.
• Wide Conversion : The F/V Converter 0-10V can effortlessly convert input frequency in the of 0HZ to 10KHZ into an analog voltage of 0-10V. This wide conversion makes it a and efficient c onent in your toolkit.
• Ideal for PLC and Frequency Converter : This F/V converter is specifically designed to facilitate the switching of PLC (Programmable Logic Controller) and frequency converter. It stands as an ideal selection for diverse hardware needs and applications.
• User-Friendly : Our F/V Converter 0-10Khz is not only easy to wire but also convenient to use. This user-friendly nature converts the otherwise c lex tasks into simpler ones, thereby enhancing your overall productivity and ease of use.
• Optical Coupling Isolation : With inputs featuring optical coupling isolation, this Frequency to Voltage Module guarantees superior anti-interference capability. This feature ensures that your module operates seamlessly amidst any disturbances, delivering accurate results consistently.

Specification:
Output current: 5MA
Voltage: 0-10V
Input pulse level: 5V 12V 24V
Frequency: 0 to 10KHZ
Size: Approx. 4.5 x 4.5cm / 1.77 x 1.77inch
Weight: 18g
Quantity: 1pc
Use:
Multi-circle potentiometer board is used to calibrate the correspondence of the frequency and voltage.
Input supply voltage of 12-30V DC.(The voltage of 15-24V is recommended)
When the electricity level is 12V, the power supply voltage can NOT be 12V. It's better more than 15V. When the electricity level is 24V, the power supply voltage can be 24V.
inputs with optical coupling isolation. To ensure that the capability of anti-interfence.
For use with PLC supported NPN type. Must have a ground wire.
For with encoder requires constant speed of the encoder continuously rotate more than 0.5 seconds.
Frequency/ Voltage converter module, the response time is about 0.3-0.5 seconds.
If the input is and so on, an 817 optical coupler and a resistor were needed to match the meter normally because of the match.
Corresponding relationship:
When the F / V with the transferred to an intermediate value, F / v corresponding to the following relationship, 100HZ = 0.1V, accuracy is 1%. It can not to 2 digits after the decimal point if relatively high of the occasion is not enough.
0.1V = 100HZ
500HZ = 0.5V
1KHZ = 1V
2KHZ = 2V
3KHZ = 3V
4KHZ = 4V
5KHZ = 5V
6KHZ = 6V
7KHZ = 7V
8KHZ = 8V
9KHZ = 9V
10KHZ = 10V
Each 0.1V DC of correspondence between the frequency 100HZ. When the correspondence if allowed, can be corrected to adjust to the board potentiometer.
Package List:
1 x Frequency to Voltage Converter
