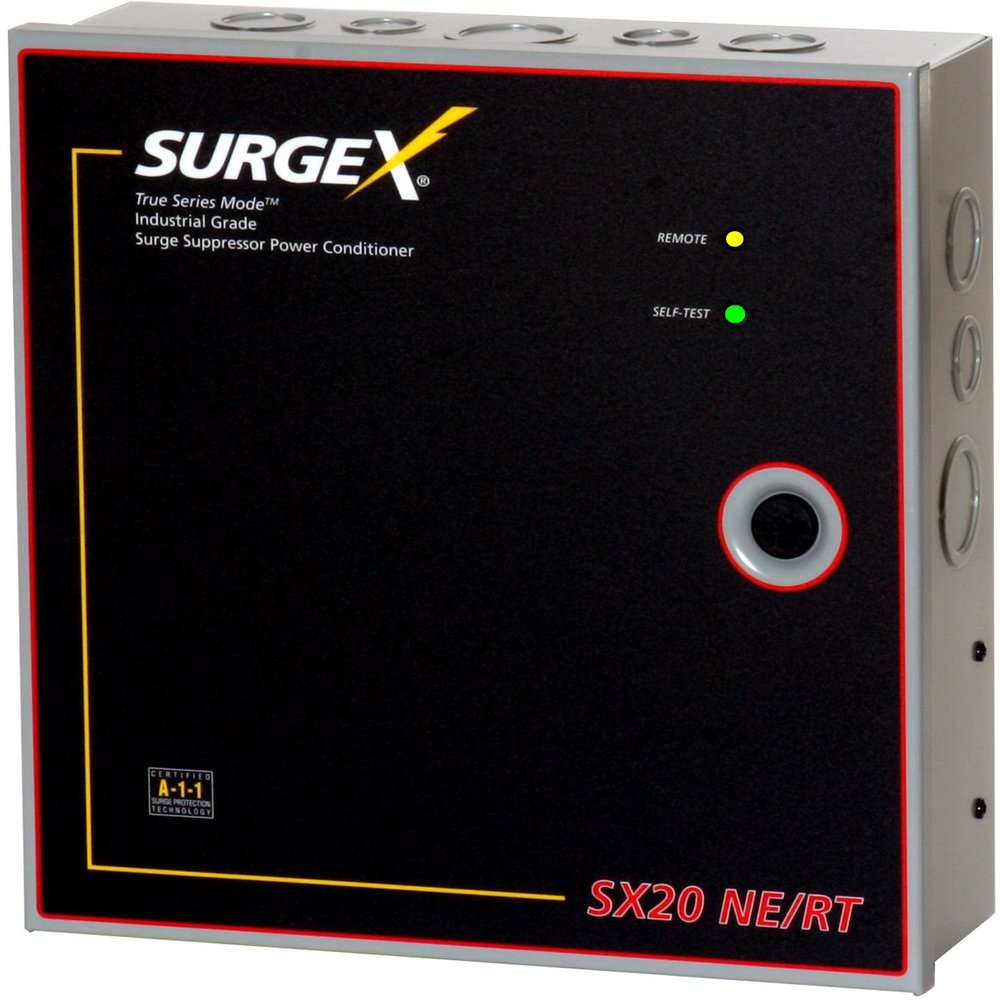

SurgeX SX20 NE/RT

Description

• Product Overview The SX-20NE-RT shall be housed in a magnetic shielding NEMA steel enclosure
• It shall operate from 120 volts AC and have a barrier strip accessible through knock-outs in the enclosure for hardwiring power input and output connections
• Overall dimensions shall be 12
• 0 H x 12
• 0 W x 4

Product Overview The SX-20NE-RT shall be housed in a magnetic shielding NEMA steel enclosure. It shall operate from 120 volts AC and have a barrier strip accessible through knock-outs in the enclosure for hardwiring power input and output connections. Overall dimensions shall be 12.0 H x 12.0 W x 4.0 D. Weight shall be 12 pounds. The unit shall have remote turn-on capabilities enabled by a hardwired connection to a separate terminal block within the enclosure. Remote turn-on and turn-off shall be activated by either a contact closure or applied DC voltage. There shall be an output voltage source for connection to a remote LED status indicator and a relay output for control and cascng. The SX-20NE-RTshall have a load rating of 20 amps at 120 volts, a self-test circuit with visual indicator and provide EMI/RFI filtering. It shall withstand at least 1000 occurrences of surge pulse voltages up to 6000 volts. Main Features NEMA rated magnetic shielding steel enclosure Inrush current elimination (SX-20NE-RT) Remote turn-on (SX-20NE-RT) General Information Name: SurgeX SX-20NE-RT 20A Remote On Nema Rated Enclosure, Advanced Series Mode, EMI/RFI Category: SurgeX, Batteries & Power Supplies, Power Conditioners Country of Origin: United States. Country of origin is subject to change.
