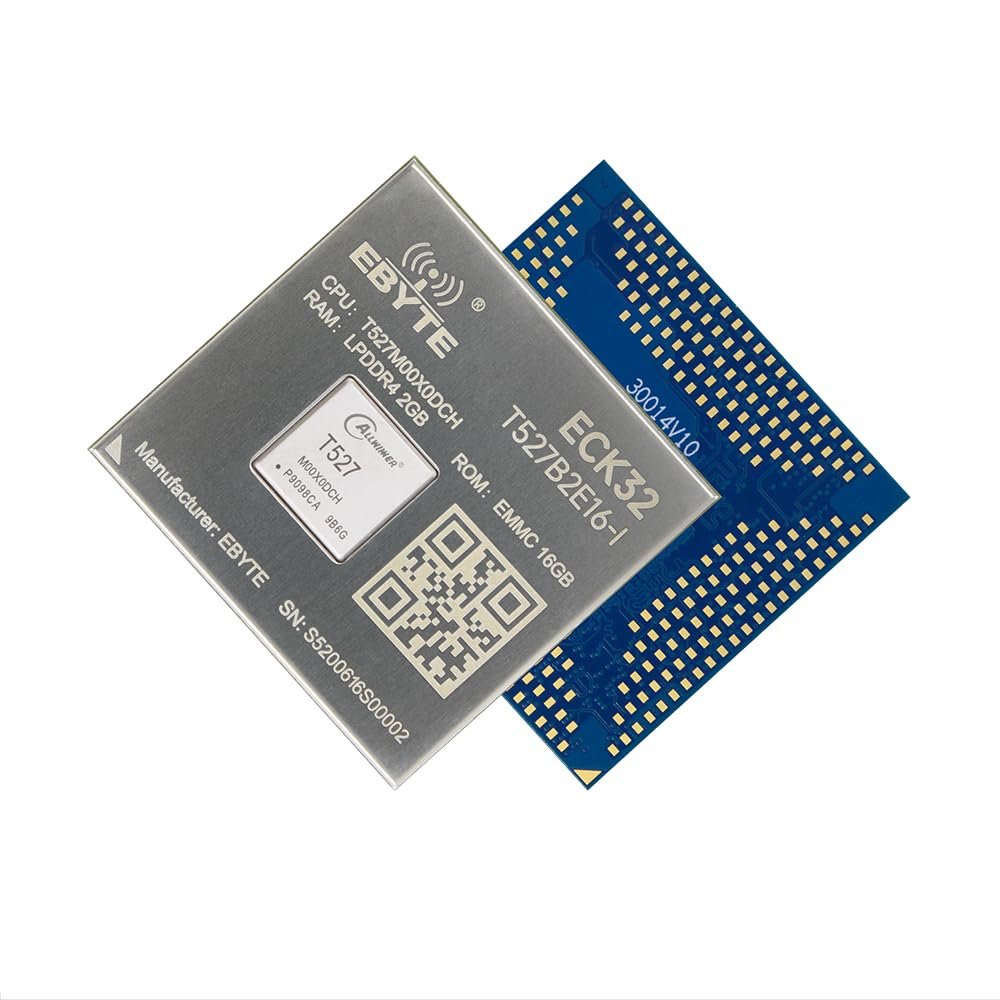

T527 Core Board Single Board Computer Linux AI Cortex-A55 G57GPU RISC-V ECK32 Series Multiple GPIO 4K Hard Decode Two-CAN, eDP, HDMI, MIPI (ECK32-T527BN4E32-N)

Description

• The ECK32-T527B series core boards include four specific product models, all designed with fully domestic industrial-grade components. They mainly differ in NPU support, DRAM memory capacity, eMMC storage capacity, operating temperature range, and other aspects. You can choose the most suitable model based on your requirements
• ECK32-T527B Series Key Specifications Processor: T527M/MN Series Octa-core ARM Cortex-A55 (41.8GHz + 41.4GHz) HiFi4 DSP @600MHz RISC-V @200MHz NPU 2TOPS (T527MN only) Display & Graphics GPU: ARM Mali-G57 MC1 VPU: H.265 4K@60fps decoding H.264 4K@60fps decoding H.264 4K@25fps encoding Memory: LPDDR4 2GB/4GB (32-bit bus) Storage: 16GB/32GB eMMC (optional)
• Video Output: 1 HDMI 2.0, supporting 4K@60fps 1 eDP, supporting 2.5K@60fps / 4K@30fps 2 Dual-link LVDS, supporting 1080p@60fps 2 RGB video output interfaces, supporting 1080p@60fps 2 4-lane or 1 4+4-lane MIPI-DSI, supporting 2K@60fps / 2.5K@60fps / 4K@45fps Video Input: 1 DVP camera input (16-bit) 4+4-lane, 4+2+2-lane, or 2+2+2+2-lane MIPI-CSI input
• Audio: 2 DAC, 3 ADC, 3 audio output, 3 audio input 4 I2S/PCM interfaces 1 SPDIF I/O Networking: 2 Gigabit Ethernet controllers, supporting RGMII/RMII interfaces PCIe: 1 PCIe 2.1 (RC mode), multiplexed with USB3.1 USB: 1 USB2.0 DRD 1 USB2.0 Host 1 USB3.1 DRD, multiplexed with PCIe2.1 Storage Interfaces: SDIO 3.0 / eMMC 5.0 controller Serial Communication: 10 UART 2 CAN
• Typical Applications- Smart home devices Intelligent toys Smart city solutions Tablet computers IoT gateways Digital signage all-in-one machines Industrial all-in-one machines Industrial control motherboards Robotics and drones

The ECK32-T527B series core board is a high-performance, low-power, high-reliability, fully domestically produced industrial-grade embedded core board based on the T527 series processor, designed with a new LGA interface form. It can be widely applied in content sharing and self-service terminals, intelligent manufacturing, as well as other electronic commercial and industrial equipment.
The T527 series is a high-performance octa-core Cortex-A55 AI platform SOC product, suitable for commercial, industrial, and automotive applications. This chip family integrates an octa-core Cortex-A55 CPU, HiFi4 DSP, 2 TOPS NPU, ARM G57 MC1 GPU, 32-bit DDR3/DDR3L/DDR4/LPDDR3/LPDDR4/LPDDR4X DRAM, high-speed interfaces (PCIe2.1 and USB3.1), automotive interfaces (CAN), multiple video output interfaces (2*RGB/2*Dual-LVDS/2*MIPI-DSI/HDMI/eDP), and video input interfaces (MIPI CSI). The chip family supports 4K@60fps H.265 decoding, 4K@30fps H.264 decoding, 4K@25fps H.264 encoding, DI, and AWonder systems, providing users with a smooth experience and professional AI visual effects.
