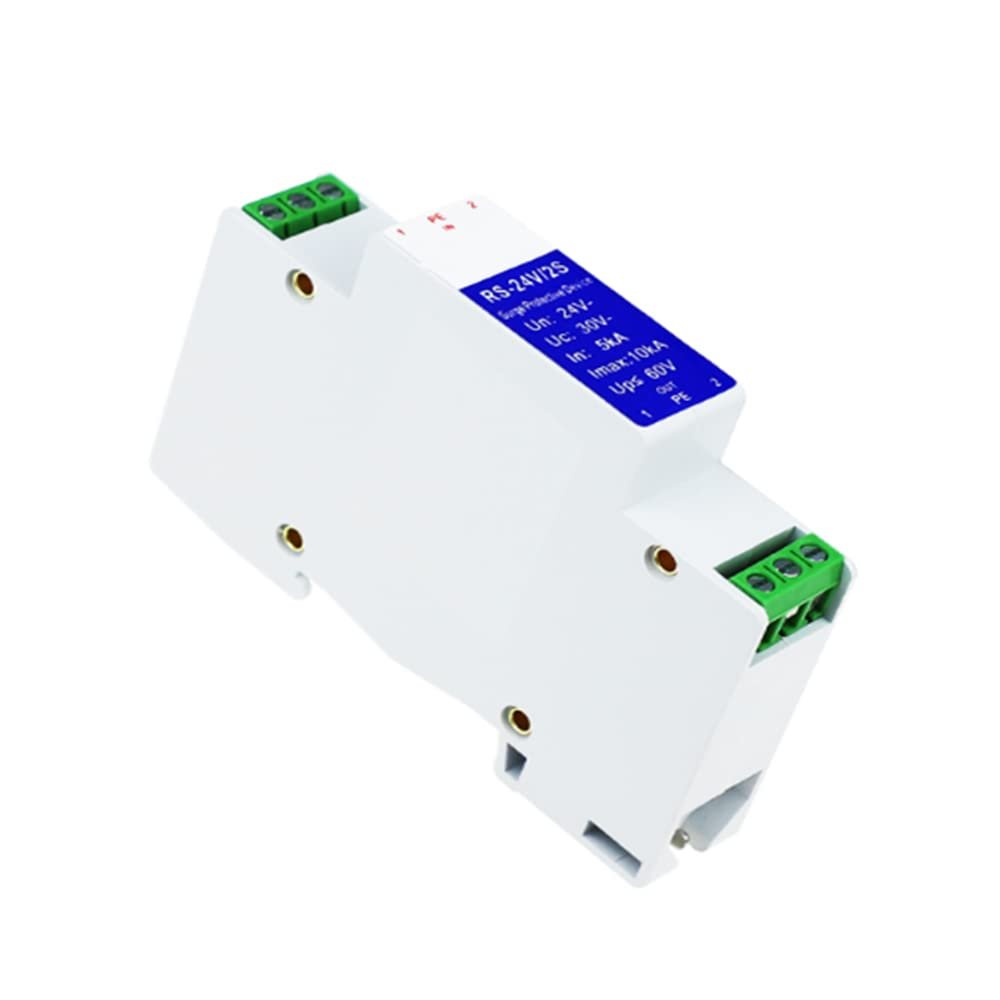

Taidacent Din Rail 5V 12V 24V 4-20Ma RS422 RS485 Surge Protector Signal Surge Arrester Surge Protection Generator (Data Level Gauge RS-24V/2S)

Description

• RS-5V/12V/24V/2S is used for RS485, RS422, 4-20mA analog current signal, switch signal, fire signal, sensor control, data bus, PLC control signal, linkage control signal, access control alarm signal, Al, AO, DI, DO signal, level gauge signal, etc. RS-110V/2S is used for signal ports such as public communication of broadcast audio amplifier
• Installed on the signal port of the equipment, it is used for lightning protection and anti-surge protection of the control signal line.
• 1. The product is close to the protected equipment; 2. The product is connected to the signal line in series; 3. The IN end is connected to the lead wire, and the OUT end is connected to the protected equipment;
• 4. When wiring the product, it must be ensured that the electrical characteristics of the access wire are consistent with the terminal identification, namely: 1 and 2 are respectively connected to the two core wires of the signal wire, and PE is connected to the ground wire; 5. The ground wire can be 1.5mm2 or more copper wire, as short, thick and straight as possible; 6. The product can be fixed on the 35mm electrical rail, and multiple products are installed on the same electrical rail When , a dedicated ground bar can be used

RS-5V/12V/24V/2S is used for RS485, RS422, 4-20mA analog current signal, switch signal, fire signal, sensor control, data bus, PLC control signal, linkage control signal, access control alarm signal, Al, AO, DI, DO signal, level gauge signal, etc. RS-110V/2S is used for signal ports such as public communication of broadcast audio amplifier
