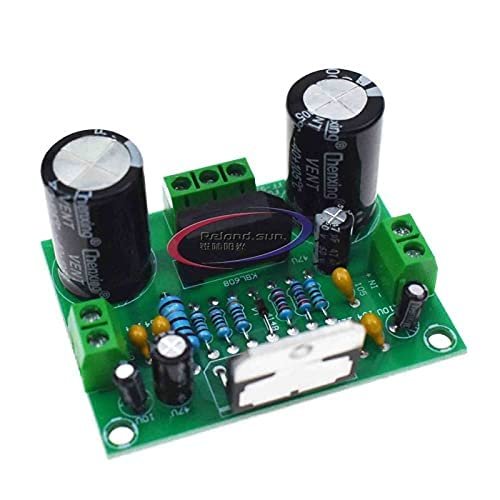

TDA7293 100W Digital Audio Amplifier AMP Board Mono Single Channel AC 12V-32V

Description

• ?TDA7293?TDA7293 100W Digital Audio Amplifier AMP Board Mono Single Channel AC 12V-32V; Low distortion, low noise, high pressurization; Switch machine mute,over heat protection, short circuit protection; Output power:100W.
• ?Compatible?Compatible speaker:4-8?,50-200W,3-10'' bookshelf speaker and floor type sound box; Size: 60*45*34MM; Power input:Double AC 12-32V,100W; Channel type:1.0 mono; Frequency range:20Hz-20KHz.
• ?Easy operation?Audio input (IN) : positive level input of audio signal and negative level input of audio signal. Output speaker (SP) : +.
• ?Descripcion?The power input (AC AC) 0: AC voltage input, double 12-36 v can be input, it is recommended to use double 32 v power supply, be sure to use the transformer output alternating current (AC), cannot use dc battery or power adapter, otherwise can't work!

TDA7293 100W Digital Audio Amplifier AMP Board Mono Single Channel AC 12V-32V

Specifications:
1. Low distortion, low noise, high pressurization
2. Switch machine mute,over heat protection, short circuit protection
3. Output power:100W
4. Power input:Double AC 12-32V,100W
5. Channel type:1.0 mono
6. Frequency range:20Hz-20KHz
7. Compatible speaker:4-8?,50-200W,3-10'' bookshelf speaker and floor type sound box
Size: 60*45*34MM
Connections:
1. Audio input (IN) : positive level input of audio signal and negative level input of audio signal.
2. Output speaker (SP) : +.
3. The power input (AC AC) 0: AC voltage input, double 12-36 v can be input, it is recommended to use double 32 v power supply, be sure to use the transformer output alternating current (AC), cannot use dc battery or power adapter, otherwise can't work!
Packet Contains:
1pc x TDA7293 100W Digital Audio Amplifier
