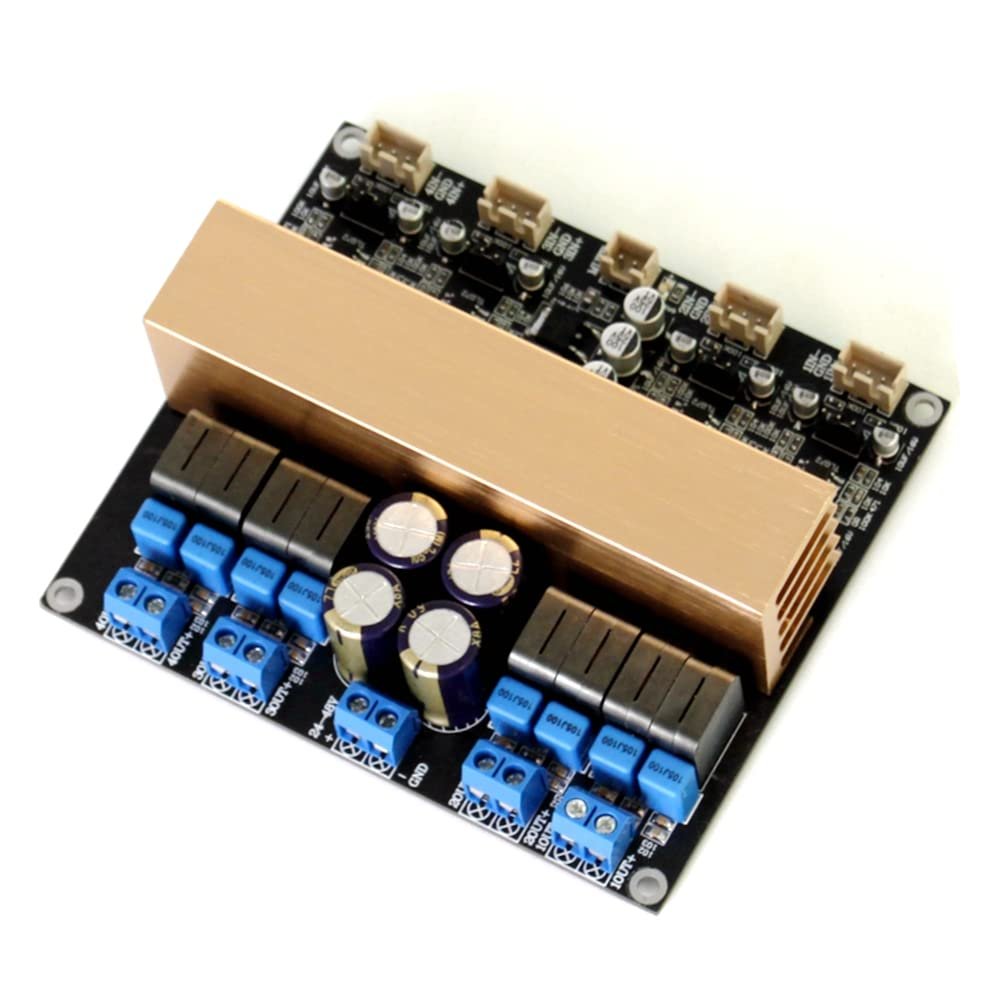

Jolooyo TPA3255 Four-Channel High-Power Digital Class D Power Amplifier Board

Description

• 1. Using original imported TPA3255 chip
• 2. The main filter electrolytic capacitor adopts a capacity of 470UF/50V*4 to ensure strong and continuous power support.
• 3. High-precision chip resistors are used for the resistors, which ensures a good signal-to-noise ratio of the whole machine.
• 4. Adopt audio-specific inductors to ensure clear and powerful sound.
• 5. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and full tin spraying process to ensure good passing performance of large and small currents.

Feature:

1. Using original imported TPA3255 chip

2. The main filter electrolytic capacitor adopts a capacity of 470UF/50V*4 to ensure strong and continuous power support.

3. High-precision chip resistors are used for the resistors, which ensures a good signal-to-noise ratio of the whole machine.

4. Adopt audio-specific inductors to ensure clear and powerful sound.

5. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and full tin spraying process to ensure good passing performance of large and small currents.

Basic performance parameters:

How it works: Class D

Quiescent current: 150mA

Work efficiency: .>90%

Output Power:

315W/4, distortion 10%*4
185W/8, distortion 10%*4
260W/4, distortion 1%*4
150W/8, distortion 1%*4
Frequency Response: 20Hz to 20KHz

Dynamic Range: >100 dB

Signal to Noise Ratio: (SNR) > 111dB

Working voltage: DC24-48V switching power supply (DC) (DC36V switching power supply is recommended. If DC48V power supply is used, the temperature of the power amplifier board radiator will be higher, and fan cooling needs to be added)

PCB size: 108*94MM

Package include
1 TPA3255 Four-Channel High-Power Digital Class D Power Amplifier Assembled Board
