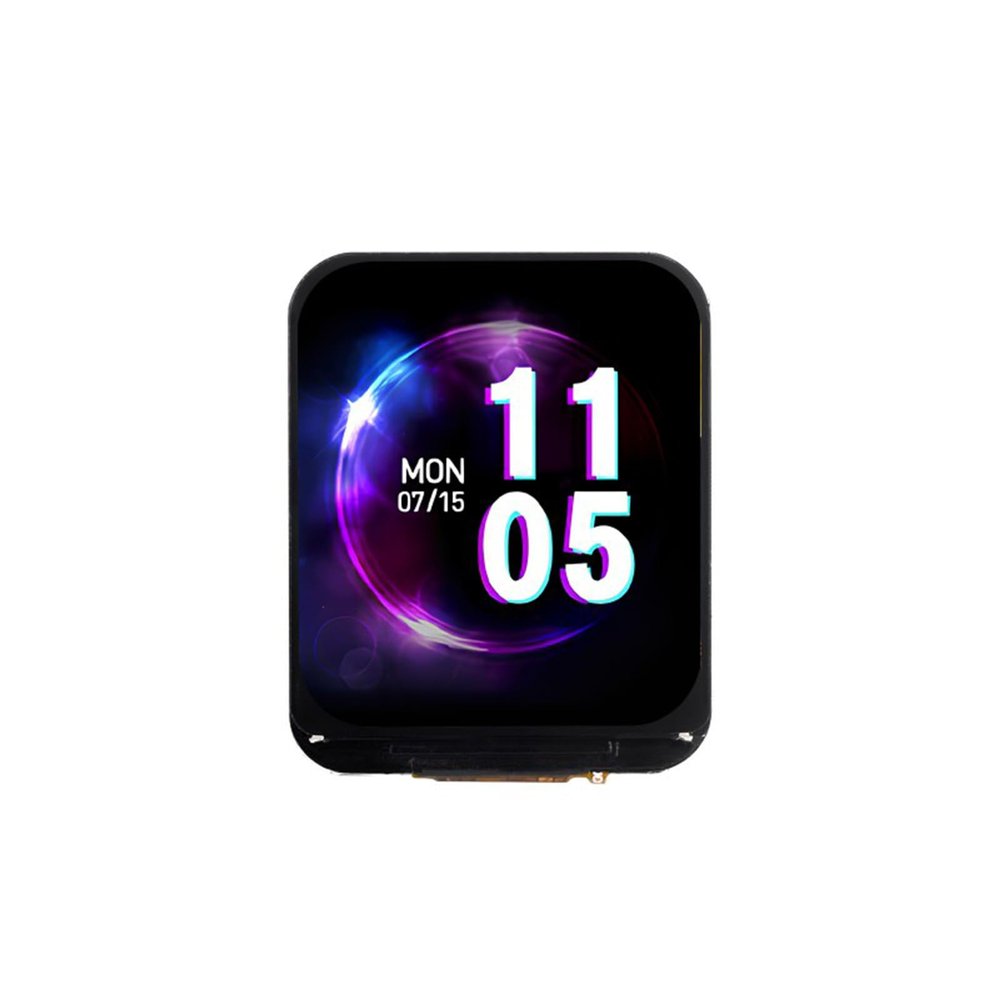

TUOPUONE ESP32-S3 1.69inch Display Development Board 240MHz Dual-Core Processor 240280 Pixels Supports WFi/BT Micro LCD Display with ESP32-S3

Description

• Onboard 1.69inch 240280 pixels 262K display for clear color pictures
• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc
• Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement

Features
ESP32-S3-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, embedded with 240MHz dual-core processor, tiny size, with onboard 1.69inch 262K LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), WFi/BT antenna, RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz WFi (802.11 b/g/n) and BT 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.69inch 240280 pixels 262K display for clear color pictures
Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
Onboard RST, BOOT and a programmable PWM button for easy custom function development
Onboard 3.7V MX1.25 lithium battery recharge/discharge header
Reserved 12PIN header of 5 GPIO, I2C, and UART interfaces, for connecting peripherals and debugging
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
