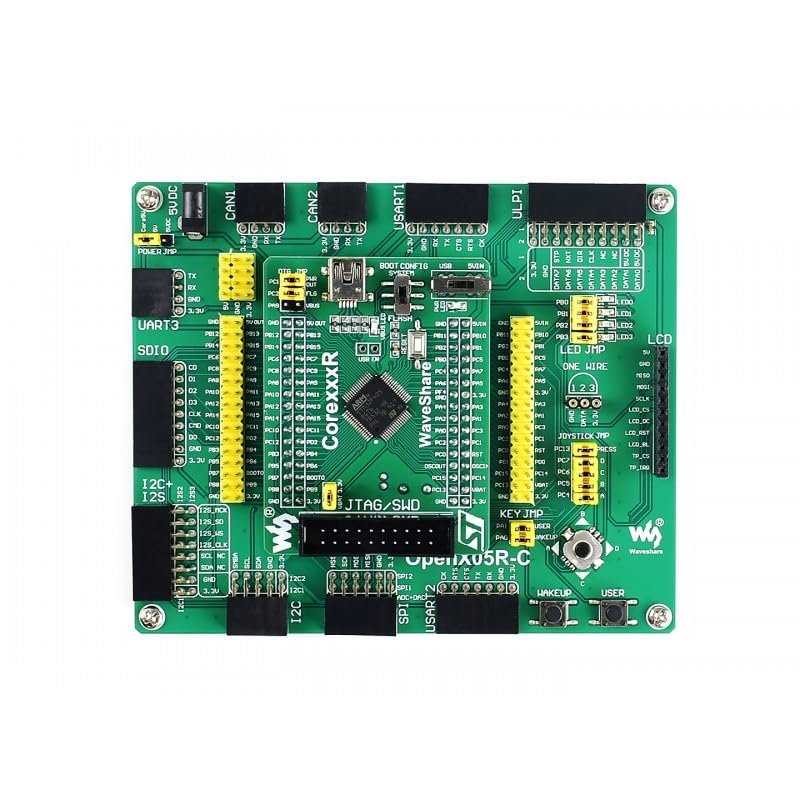

TUOPUONE Open405R-C Standard STM32 Development Board Designed for STM32F405R Series Features The STM32F405RGT6 MCU and Integrates Various Standard Interfaces Pretty Easy for Peripheral Expansions

Description

• Open405R-C is an STM32 development board designed for the STM32F405RGT6 microcontroller, consists of the mother board and the MCU core board Core405R.
• The Open405R-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F2 series microcontrollers.
• SDIO interface: for connecting Micro SD module, features much faster access speed rather than SPI
• I2C1/I2C2 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), FRAM (FM24CLxx), etc.
• ULPI interface: for connecting high-speed USB peripheral (the STM32F405R integrates USB HS controller without any PHY device)

Overview
Open405R-C is an STM32 development board designed for the STM32F405RGT6 microcontroller, consists of the mother board and the MCU core board Core405R.
The Open405R-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F2 series microcontrollers.

Specification
MCU core board connector: for easily connecting the Core405R
UART3 interface: easily connects to RS232, USB TO 232, etc.
SDIO interface: for connecting Micro SD module, features much faster access speed rather than SPI
I2C1/I2C2 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), FRAM (FM24CLxx), etc
.USART2 interface: easily connects to RS232, RS485, USB TO 232, etc.
LCD interface: for connecting touch screen LCD
ULPI interface: for connecting high-speed USB peripheral (the STM32F405R integrates USB HS controller without any PHY device)
UART1 interface: easily connects to RS232, USB TO 232, etc.
CAN2 interface: communicates with accessory boards which feature the CAN device conveniently
CAN1 interface: communicates with accessory boards which feature the CAN device conveniently
ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.

Package Content
Open405R-C development board x 1
PL2303 USB UART Board (mini) x 1
USB type A plug to mini-B plug cable x 1
USB type A receptacle to mini-B plug cable x 1
4-pin 2-pin wires pack x 1
USB power cable x 1
