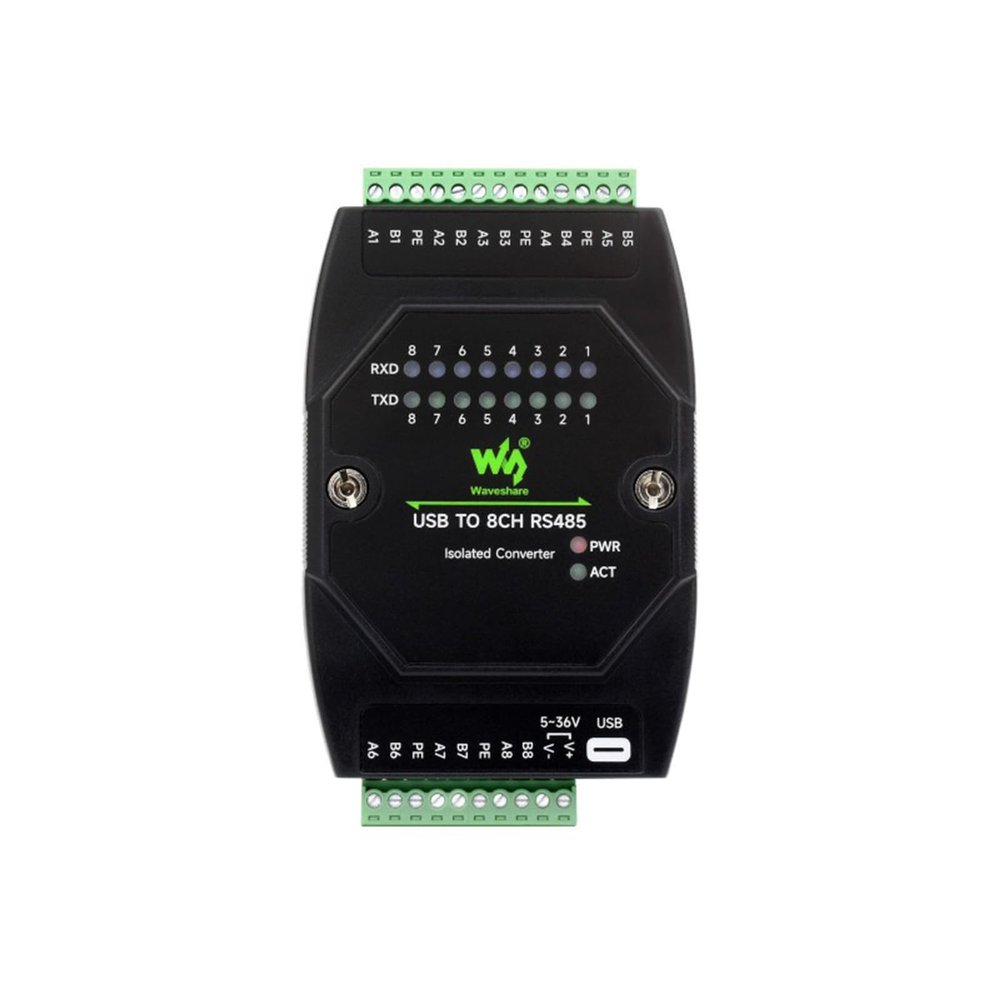

TUOPUONE USB to 8CH RS485 Industrial Grade Isolated Converter USB to RS485 Adapter Multiple Protection Circuits Wall-Mount and Rail-Mount Support Multi-OS Compatible Stackable Installation Support

Description

• Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices
• Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

Features At A Glance
Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices
Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input
Onboard unibody power supply isolation, provides stable isolated voltage
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching
LEDs for indicating the power, device configuration status and transceiver status
Rail-mount case design, support stackable combination, easy to install and safer to use

Package Content
Weight: 0.162 kg
USB TO 8CH RS485 x1
USB-A male to USB-C male cable ~1m x1
Screwdriver x1
