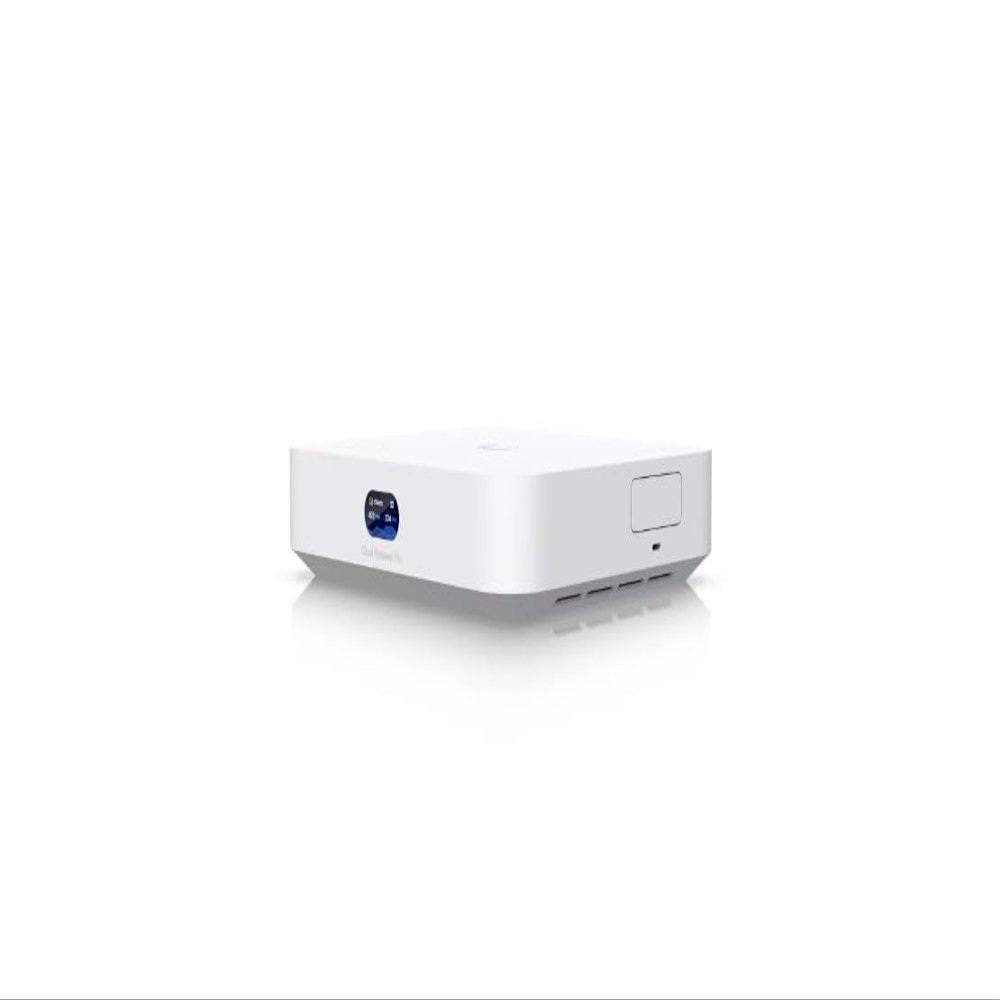

Ubiquity UCG-Max-1TB Compact Desktop 2.5G Cloud Gateway with Integrated 5-Port 2.5 GbE Switch, Selectable 1TB NVMe SSD NVR Storage, 2.3 Gbps IDS/IPS Throughput, Multi-WAN Load Balancing

Description

• Compact Desktop Form Factor: Measures 141.8 x 127.6 x 30 mm with a lightweight polycarbonate enclosure; weighs 460 g without SSD and 519 g with SSD installed.
• Powerful Processor and Memory: Quad-core ARM Cortex-A53 CPU at 1.5 GHz coupled with 3 GB system RAM for efficient handling of network and security workloads.
• Integrated 2.5G Multi-Port Switching: Features five 2.5 GbE RJ45 ports (supporting 2.5G/1G/100M/10M speeds) including one dedicated WAN port for reliable high-speed uplink.
• High-Speed IDS/IPS Throughput: Up to 2.3 Gbps throughput for intrusion detection and prevention with deep packet inspection and content filtering to safeguard network traffic.
• Advanced Security Suite: Includes stateful firewall, application-aware Layer 7 firewall, DPI, zone-based filtering, ad blocking, and access control with over 55,000 IPS signatures via CyberSecure.
• Selectable NVMe NVR Storage: Supports user-installable NVMe SSDs up to 2 TB for network video recording under the Protect application, supporting up to 15 HD, 8 2K, or 5 4K cameras.
• Multi-WAN and VPN Support: License-free SD-WAN, site-to-site VPN, and multiple VPN protocols including WireGuard, OpenVPN, L2TP, IPsec, and Teleport zero-configuration VPN.
• Robust Networking Features: Multi-WAN load balancing, OSPF dynamic routing, VLAN/subnet segmentation, integrated RADIUS server with RadSec, advanced NAT modes, multicast DNS (mDNS), and IPv6 support.
• User-Friendly Management: Managed via Ethernet and Bluetooth with a 0.96" LCM status display and a single factory-reset button for straightforward operation and monitoring.
• Power and Environmental Specs: Powered via USB Type-C (5V DC/5A) with included adapter; operates from -10 to 40 C and 5 to 95% non-condensing humidity; ESD/EMP protection of 8kV air and 4kV contact.

The UCG-Max-1TB is a compact yet powerful 2.5G Cloud Gateway designed for small to medium enterprise networks and advanced home environments. Encased in a durable polycarbonate chassis measuring 141.8 x 127.6 x 30 mm, this device features a quad-core ARM Cortex-A53 processor running at 1.5 GHz combined with 3 GB of system memory to deliver robust and reliable network performance. It integrates a 5-port 2.5 GbE RJ45 switch supporting multi-speed operation (2.5G/1G/100M/10M), including one dedicated 2.5 GbE WAN port, enabling efficient multi-WAN load balancing and high throughput. With a maximum IDS/IPS throughput of 2.3 Gbps, the device offers advanced security features including stateful and application-aware Layer 7 firewalls, deep packet inspection, ad blocking, and content filtering powered by over 55,000 signatures via CyberSecure. The gateway supports up to 30+ managed network devices and 300+ simultaneous clients. Integrated selectable NVMe SSD storage (preconfigured with a 1TB drive) enables network video recording functionality, supporting up to 15 HD, 8 2K, or 5 4K cameras. Comprehensive VPN options include WireGuard, OpenVPN, IPsec, L2TP, and zero-configuration Teleport VPN, while the device also supports license-free SD-WAN and site-to-site VPN. Additional networking capabilities include OSPF dynamic routing, VLAN and subnet traffic segmentation, integrated RADIUS server with RadSec, multicast DNS, advanced NAT, IPv6 ISP support, and IGMP proxy. The unit is managed via Ethernet and Bluetooth, with a 0.96" status display and factory-reset button for convenient operation. Powered by USB Type-C (5V DC/5A) with included adapter, the UCG-Max-1TB is designed to operate reliably between -10C and 40C, handling humidity levels from 5 to 95% non-condensing, and includes comprehensive ESD/EMP protection.
