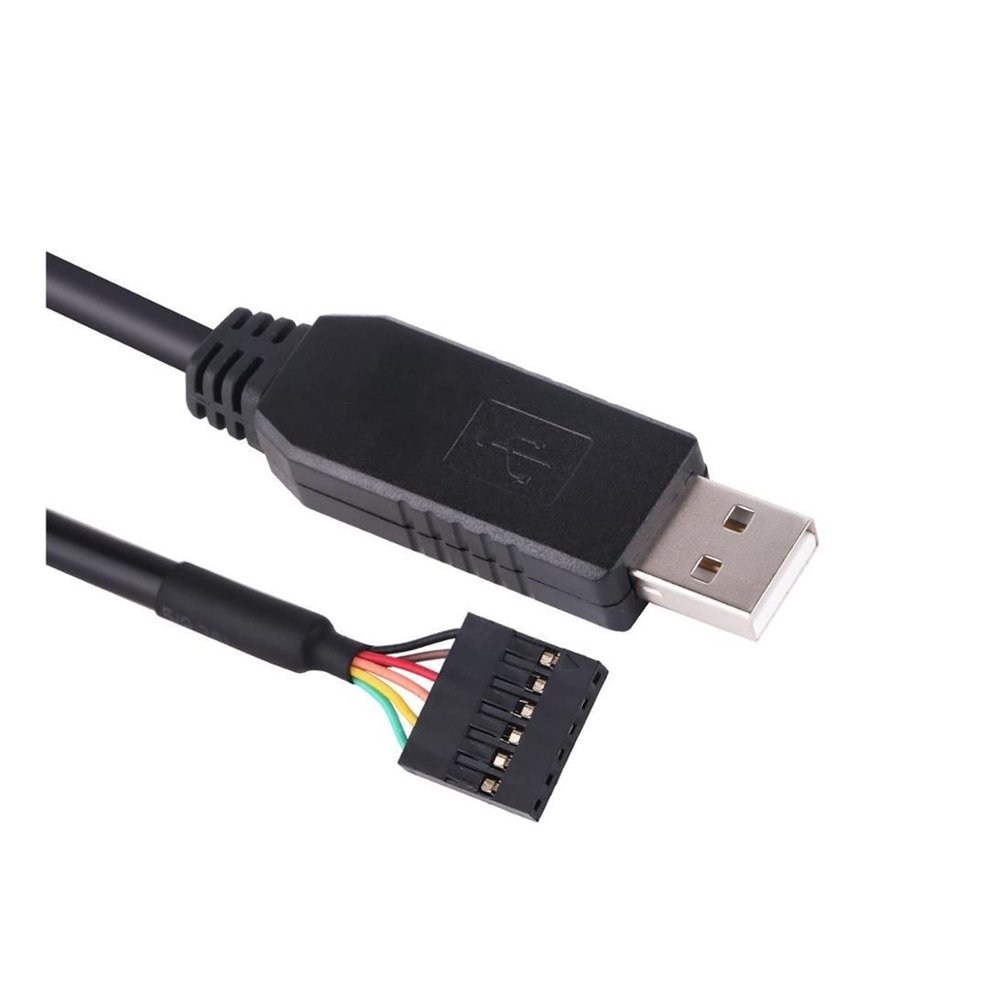

USB Serial Adapter Download Cable CP2102 RS232 3.3V T-T-L U-A-R-T Converter 6Pin 2.54mm Pitch Debug Terminal

Description

• CP2102 based USB to T-T-L Serial Cable are designed using the the standard CP2102 chipset.
• The cables are available with a 6-way SIL, 0.1" connector
• T-T-L levels is 3.3V
• USB Serial
• UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect

Features:
CP2102 based USB to T-T-L Serial Cable are designed using the the standard CP2102 chipset.
The cables are available with a 6-way SIL, 0.1" connector
T-T-L levels is 3.3V
USB Serial
UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect
devices with a T-T-L level serial interface to USB
Cables are available with either a 6-way SIL,0.1"pitch connector
(intended Compatible With use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections
The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is
1.8m in length and supports a data transfer rate up to 3 Mbaud
Note:
Red wire: 5V
dark wire: GND
snowy wire: RXD
Green wire: TXD
Yellow wire: RTS
Blue wire: CTS
Package Contents
1 XCABLE
Product Vedio:
About CP2102
Single-Chip USB to UART Data Transfer
-Integrated USB transceiver; no external resistors required
-Integrated clock; no external crystal required
-Internal 1024-byte programmable ROM Compatible With vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
-On-chip power-on reset circuit
-On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
-100% pin and software compatible with CP2101
USB Function Controller
-USB Specification 2.0 compliant; full-speed (12 Mbps)
-USB suspend states supported via SUSPEND pins
Asynchronous Serial Data BUS (UART)
-All handshaking and modem interface signals
-Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
-Baud rates: 300 bps to 1 Mbps
-576 Byte receive buffer; 640 byte transmit buffer
-Hardware or X-On/X-Off handshaking supported
-E
