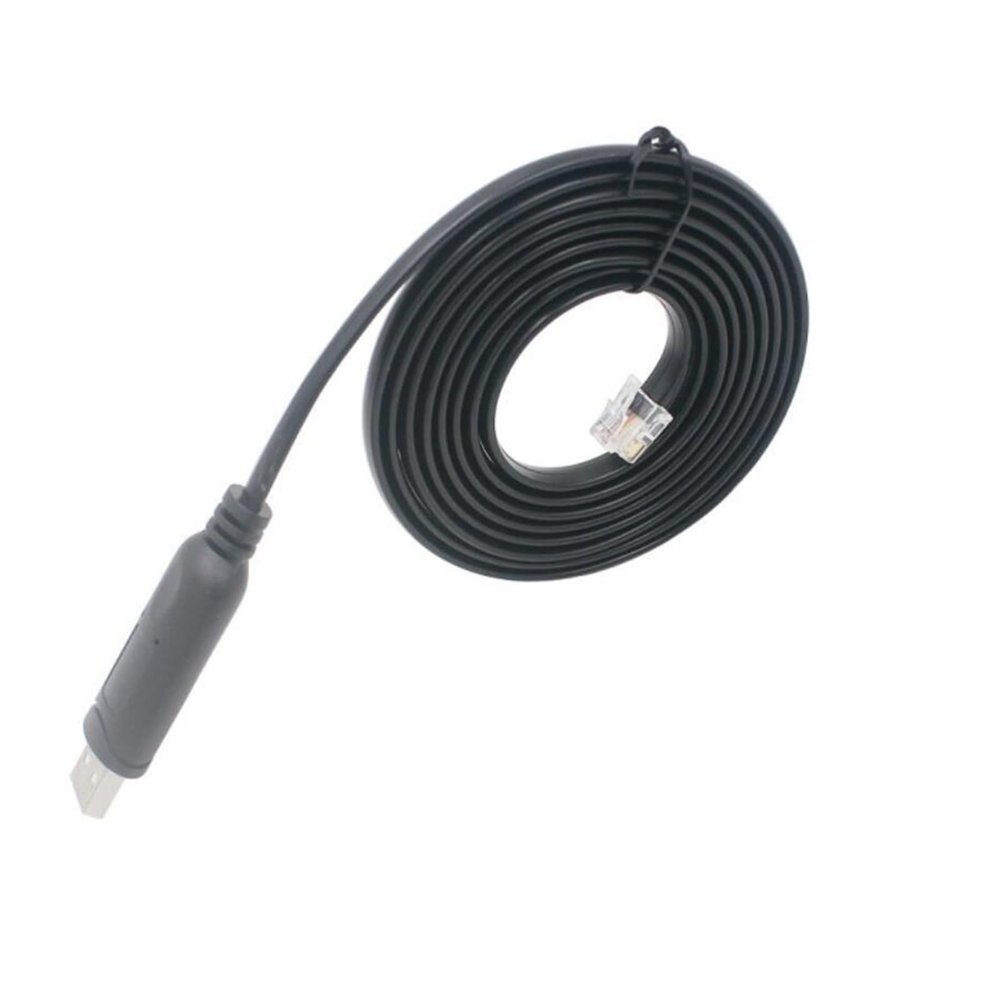

USB to RS232 RJ12 6P6C Network Serial Console Router Adapter pl;/UG Converter Cable with F/;TD/;1 Chip Support Win10

Description

• USB to RS232 RJ12 6P6C Network Serial Console Router Adapter pl;/ug Converter Cable With F/;TD/;1 Chip Support Win10.Length: 6ft
• Chip: FT232RL , Import from UK , 100/% quality guarantee .
• USB to RJ12 RS232 Serial Cable
• Pin Assignment: 1-NC, 2-GND,3-RXD,4-TXD,5-GND,6-NC (Cable Pinout), the device pinout should be (RXD(cable)match the device is TXD, TXD(cable match the RXD).
• Please check and confirm your device is match with this pin assignment before buying .

USB to RS232 RJ12 6P6C Network Serial Console Router Adapter pl;/ug Converter Cable With F/;TD/;1 Chip Support Win10
Length: 6ft
Chip: FT232RL , Import from UK , 100/% quality guarantee .
USB to RJ12 RS232 Serial Cable
Pin Assignment: 1-NC, 2-GND,3-RXD,4-TXD,5-GND,6-NC (Cable Pinout), the device pinout should be (RXD(cable)match the device is TXD, TXD(cable match the RXD).
Please check and confirm your device is match with this pin assignment before buying .
About FT232RL
The FT232R is the latest device to be added to F/;TD/;1?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip Compatible some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to pro/;tect customer application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support Compatible 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-b
