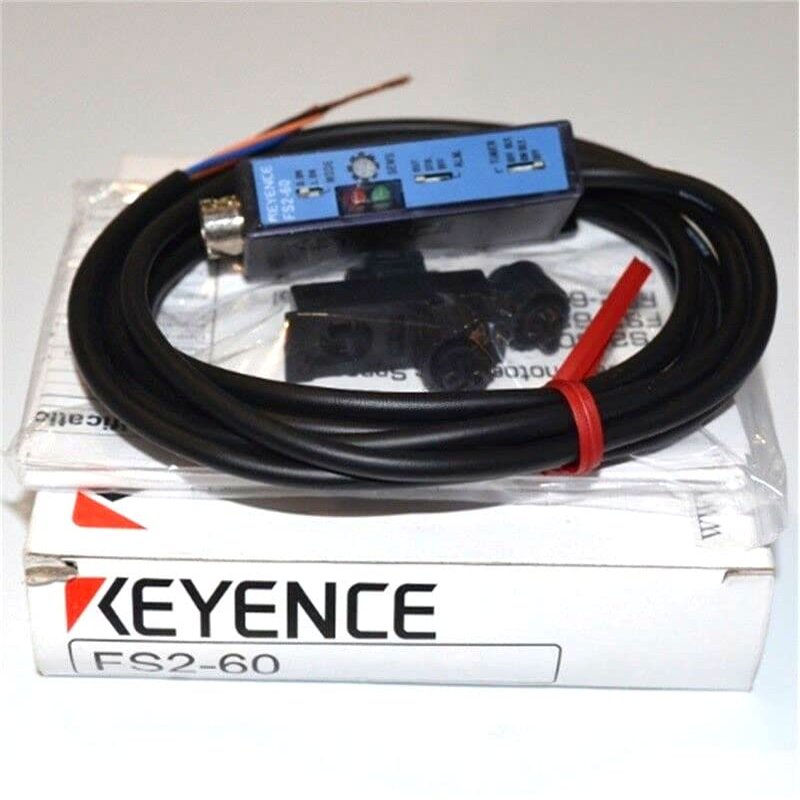

Vanky Industry KEYENCE FS2-60 Fiber Optic Amplifier Sensor New

Description

• Model: FS2-60
• Type: TrimmerLong detecting distance
• Light source: Red LED
• Sensitivity adjustment: 8-turn trimmer
• Response time: 250 s

KEYENCE FS2-60 Fiber Optic Amplifier Sensor New
Specifications:
Model: FS2-60
Type: TrimmerLong detecting distance
Light source: Red LED
Sensitivity adjustment: 8-turn trimmer
Response time: 250 s
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp: Output Red LED Stable operation: Green LED
Timer function: ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
External calibration input signal:
Buzzer mode: Buzzer ON when control output turns ON/Buzzer ON when alarm output turns ON/Buzzer OFF (switch-selectable)
Output: NPN output
Control output: NPN open-collector 100 mA max. (40 V max.), Residual voltage 1 V max.
Stability output: NPN open-collector 50 mA max. (40 V max.), Residual voltage 1 V max.
Protection circuit: Reversed polarity protection, Overcurrent protection, Surge absorber
Rating:
1. Power voltage: 12 to 24 VDC 10 %, Ripple (P-P) 10 % or less
2. Current consumption: 35 mA or less
Environmental resistance:
1. Ambient light: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
2. Ambient temperature: -10 to +55 C 14 to 131 F (No freezing)
3. Relative humidity: 35 to 85 % RH (No condensation)
4. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
5. Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions
Material: Polycarbonate
Weight: Approx. 61 g
