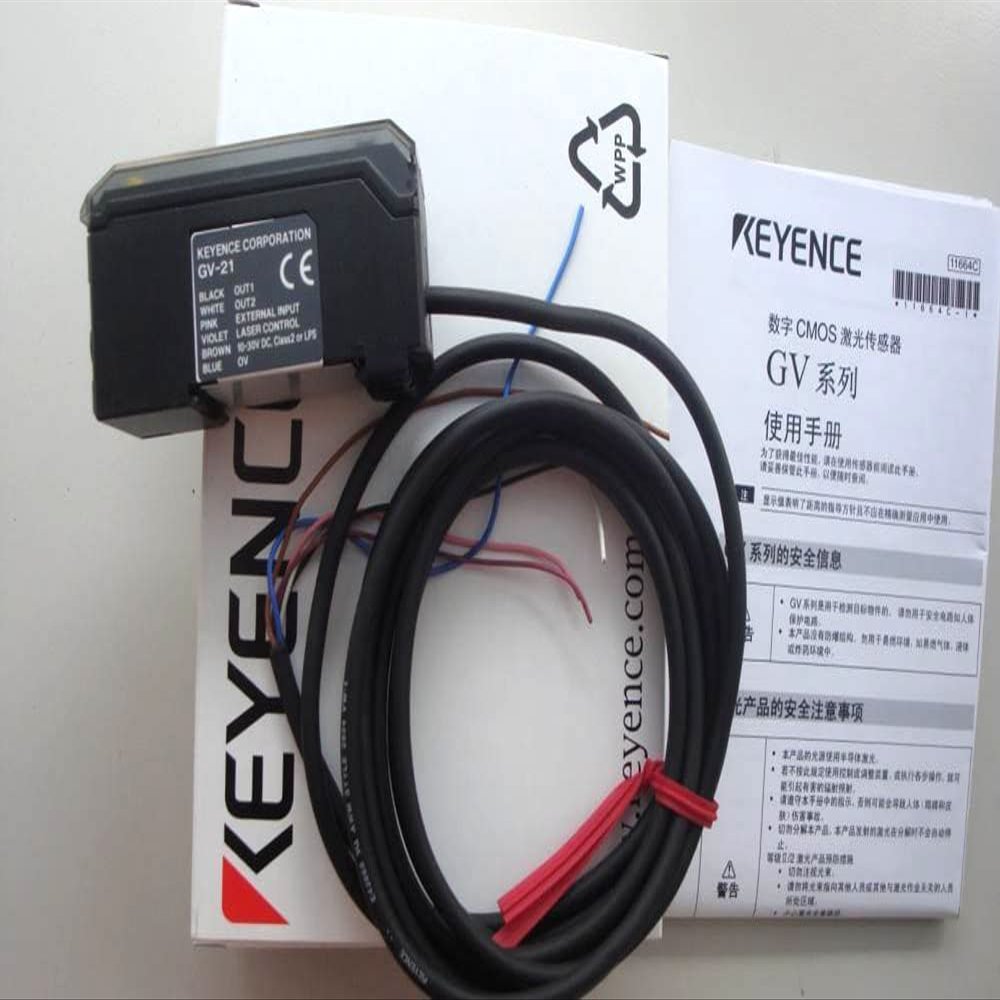

Vanky Industry KEYENCE GV-21 Amplifier Unit New

Description

• Model: GV-21
• Type: Amplifier Unit, Main Unit
• Normal: 2200 mW max. (at 30 V: 73.3 mA max.)
• Eco-Half: 1700 mW max. (at 30 V: 56.7 mA max.)
• Eco-All: 1600 mW max. (at 30 V: 53.3 mA max.)

KEYENCE GV-21 Amplifier Unit New
Specifications:
Model: GV-21
Type: Amplifier Unit, Main Unit
Power consumption:
1. Normal: 2200 mW max. (at 30 V: 73.3 mA max.)
2. Eco-Half: 1700 mW max. (at 30 V: 56.7 mA max.)
3. Eco-All: 1600 mW max. (at 30 V: 53.3 mA max.)
Display indicator: Dual 7-segment display (Current Value: 3-digit red LED indicator, Preset Value: 3-digit green LED indicator) + 2-color 13-level Bar LED (Red, Green)
Output: NPN
Control output: NPN open collector x 2ch, 40 V DC max./Max. 100 mA, residual voltage 1 V max.
Control input: Emission stop input, Bank switching input, Shift input, Timing input, Each input response time: 20 ms
Response time: 1.5/3/10/20/50 ms
Operation status indicators: Control output: Red LED x 2 Channel display: Green LED x 2 Laser radiation emission indicator Green LED Other: Green LED x 2/Red LED x 3
Rating: Power voltage: 10 to 30 VDC, including Ripple (P-P) 10 %*1
Environmental resistance:
1. Ambient temperature: -10 to +55 C 14 to 131 F (No freezing)
2. Relative humidity: 35 to 85 % RH (No condensation)
3. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
Material: Housing material, display cover: Polycarbonate, Key Top: Polyacetal, Cable: PVC
Weight: Approx. 110 g
