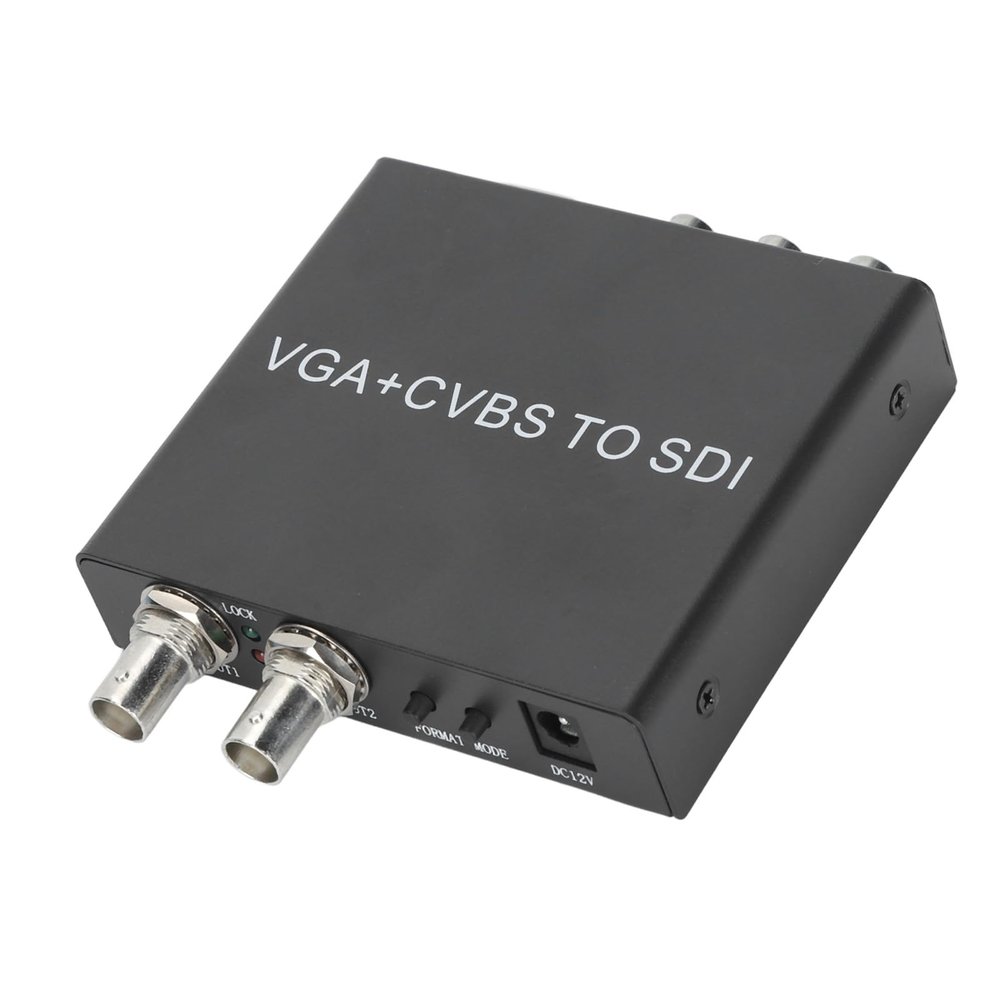

VGA CVBS to SDI Converter, Professional Aluminium Alloy VGA AV to Dual SDI Converter Adapter, Support SD 3G SDI 1080P (US Plug)

Description

• Stable and The product supports VGA and AV input, 2 port SDI (SD SDI, SDI, 3G SDI) output, full SDI output, and easy to use with high stability and reliability.
• Input and Output: Convert VGA and CVBS source to dual SDI output, can output VGA and CVBS source to 2 SDI displays. Input ports: 1 x SDI port (BNC), 1 x VGA port, 1 x AV port. Output ports: 2 x SDI ports (BNC).
• Distance: SD SDI supports up to 300M distance, SDI supports 200M, 3G SDI supports up to 100M.
• Adjustable Resolution: VGA input resolution up to 1920x1080 at 60, CVBS input resolution up to 576p, SDI output resolution up to 1080p60. with resolution switching , you can the to select higher or lower SDI output resolution, easy to use.
• Design: Aluminum alloy shell is , long service life and good heat dissipation. The converter can be widely used in SDI broadcasting room, non linear editing field, CCTV security system, training showroom and so on.

Spec:
Item Type: VGA CVBS to SDI Converter
Material: Aluminium Alloy
Input Port: 1 x SDI Port (BNC), 1 x VGA Port, 1 x AV Port
Output Ports: 2 x SDI Ports (BNC)
VGA Input Resolution: 640x480 at 60,800x600 at 60,1024x768 at 60,
1280x720 at 60, 1280x768 at 60, 1280x1024 at 60, 1360x768 at 60,
1366x768 at 60, 1680x1050 at 60, 1920x1080 at 60
CVBS Input Resolution: 480i, 576i, 480p, 576p
SDI Resolution:
When The Input Is VGA, The SDI Resolution Is: 720p60 (16:9), 1080p60 (16:9)
When The Input Is CVBS, The SDI Resolution Is: 720p60 (16:9, 1080p25/30/60 (16:9), 720p60 (4:3), 1080p25/30/60 (4:3)
Distance and Resistance:
SD SDI: 250-300m, for Belden 1694A /75?
SDI: 150-200m, for Belden 1694A /75?
3G SDI: 80-100m, for Belden 1694A /75?
Guard: Discharge: 4KV, Air Discharge: 8KV
Plug Voltage: 100-240V

How to Use:
Plug and Play

Package List:
1 x Converter
1 Adapter
1 x Instruction Manual
