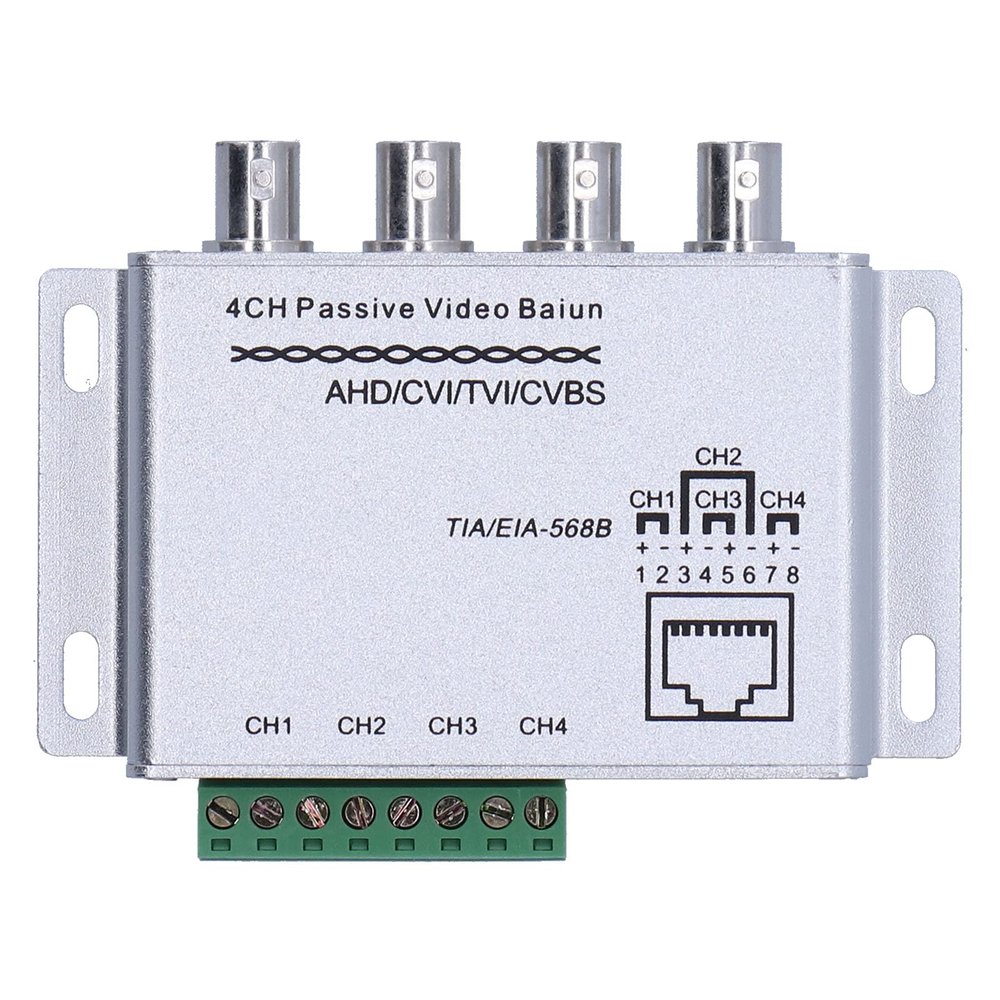

Video Balun, 1080P 4 Channel Passive Balun -interference for UTP Converter for Passive Video Twisted Pair Transceiver for Home for Industry

Description

• HD Video balun converts the video into a balanced , and transmits it on an ordinary Cat-5 unshielded twisted pair cable at a rate.
• For 720P CVI cameras, the maximum length is about 450m; for 1080P CVI cameras, 720P/1080P TVI cameras and 1080P AHD cameras, the maximum length is about 250m; for 720P AHD cameras, the maximum length is about 320m.
• Allows your 8 pins Cat5 twisted pair cable display video images at the same time, which can be used in video surveillance and video conferences, and can transmit video of four channels.
• Compatible with all HDCVI, HDTVI, HDAHD, supports NTSC, PAL and SECAM video formats; and has a long distance, which can greatly simplify wiring engineering and save wire usage.
• Excellent anti-interference ability, 60dB anti-interference and anti-noise ability; built-in TVS, can up to 4000V voltage; no power supply, more convenient to use.

Feature:
1. HD Video balun converts the video into a balanced , and transmits it on an ordinary Cat-5 unshielded twisted pair cable at a rate.
2. Allows your 8 pins Cat5 twisted pair cable display video images at the same time, which can be used in video surveillance and video conferences, and can transmit video of four channels.
3. Compatible with all HDCVI, HDTVI, HDAHD, supports NTSC, PAL and SECAM video formats; and has a long distance, which can greatly simplify wiring engineering and save wire usage.
4. For 720P CVI cameras, the maximum length is about 450m; for 1080P CVI cameras, 720P/1080P TVI cameras and 1080P AHD cameras, the maximum length is about 250m; for 720P AHD cameras, the maximum length is about 320m.
5. Excellent anti-interference ability, 60dB anti-interference and anti-noise ability; built-in TVS, can up to 4000V voltage; no power supply, more convenient to use.

Specification:
Item Type: Video BalunMaterial: Metal
Video Format: NTSC / for Saikai PAL
Maximum Input: 1Vp-p
Frequency Response: DC to 60MHz
CMMR: 60dB, (20K-60M) Hz
Wire Type: UTP (22-24) AWG
Wire Category: CAT5e CAT6
ESD: 8KV
Impedance: BNC: 75ohms, RJ45: 100ohms
Working Temperature: -10-60
Storage Temperature: -30-70
Humidity Range: 0-95%

Distance:

For 720P CVI camera, the longest may up to 450meters / 492yd
For 1080P CVI camera, the longest may up to 250meters / 273.4yd
For 720P/1080P TVI camera, the longest may up to 250meters / 273.4yd
For 720P AHD cameras, the longest may up to 320meters / 350yd
For 1080P AHD cameras, the longest may up to 250meters / 273.4yd

Package List:
1 x Video Balun1 x Manual
