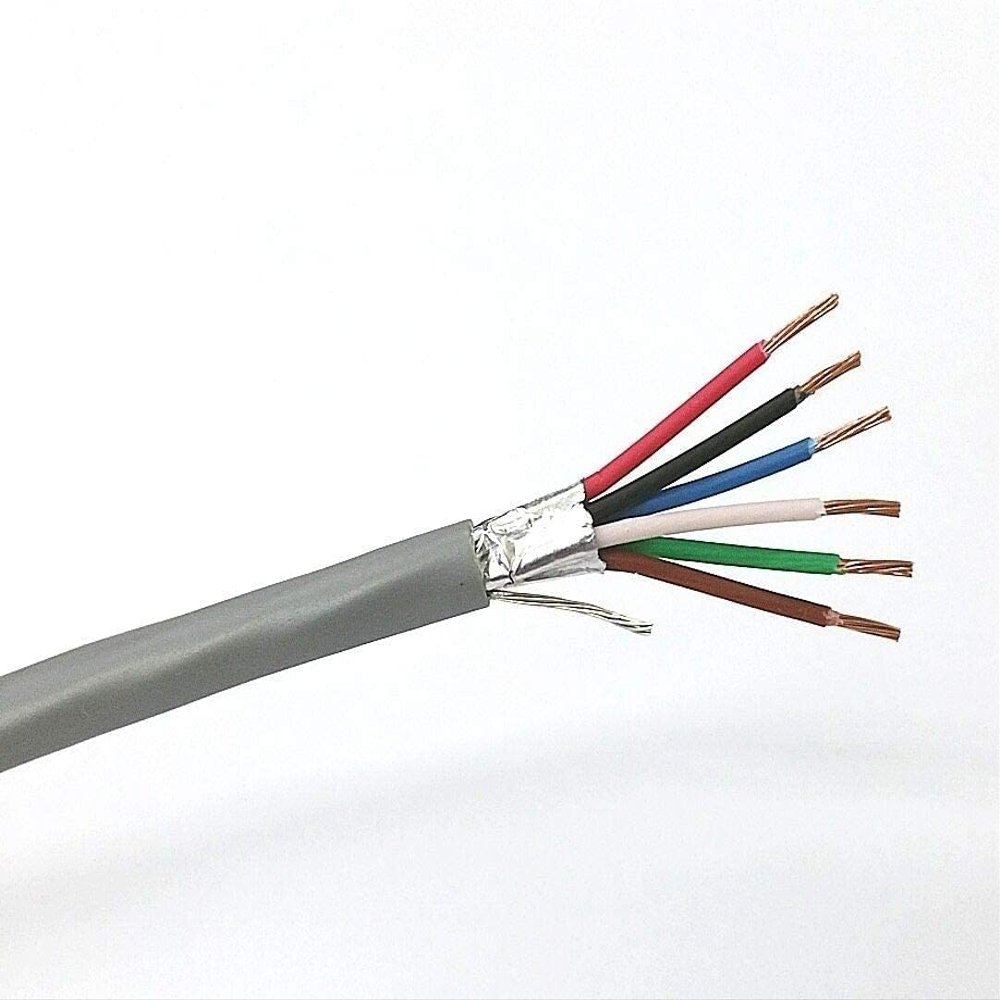

West Penn Wire 3270-6 Conductor 22 Gauge Shielded Cable CMR - 1,000 ft. Pull Box

Description

• West Penn Wire 3270 CMR Rated great for Installations
• 22/6 Stranded Bare Copper conductors
• Shielded with an overall jacket
• Application: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.
• 1,000 ft. Professional Pull Box

West Penn Wire 3270 CMR Rated great for Installations.
22/6 Stranded bare copper conductors, Shielded with an overall jacket
Application: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.

CONSTRUCTION & DIMENSIONS CONDUCTOR PARAMETER
Number of Conductors: 6
- AWG Size: 22
- Conductor Stranding: 7x30
- Conductor Type: Bare copper
- Nominal DCR: 17 Ohm/1000ft

INSULATION PARAMETER
- Insulation Type: Thermoplastic
- Insulation Thickness: 0.007 in
- Insulation Color Code: 1.Black, 2.Red, 3.White, 4.Green, 5. Brown, 6.Blue

SHIELDING PARAMETER
- Shield Type: Overall 100% Aluminum Foil
- Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG

ELECTRICAL CHARACTERISTICS
- Nom. Cap. Between Conductors: 34 pF/ft.
- Nom. Cap. Conductor to Shield: 67 pF/ft.

OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC - Jacket Thickness: 0.017 in
- Nominal Cable O.D.: 0.167 in
- NEC UL Rating: CMR, CMG
- RoHS Compliant: Yes
- Pull Tension: 63 lbs.
- Bend Radius: 1.50 in
